Remove/install rear cover on center console - AR68.20-P-2358LW

MODEL 205

MODEL 253

Shown on MODEL 205 with CODE 581 (Automatic air conditioning)

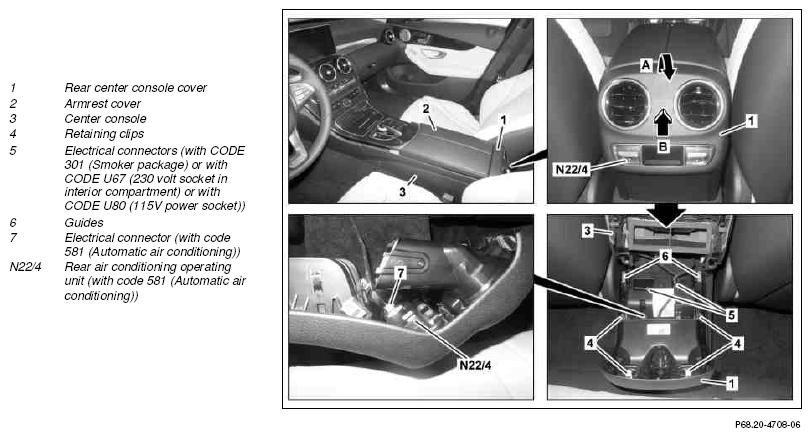

Fig 1: Center Console Rear Cover Remove/Install Components - Shown On Model 205

Courtesy of MERCEDES-BENZ TRUCK CO., INC.

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1.1	Switch off ignition and remove transmitter key	Model 205, 253 except code U67 (230 V socket in interior compartment) except code U80 (115 V socket)
1.2	Disconnect battery ground line	Model 205, 253 with code U67 (230 V socket in interior compartment) Model 205, 253 with code U80 (115 V socket)
			AR54.10-P-0003LW
2	Open armrest cover (2)
3	Manually unclip rear center console cover (1) at top of armrest cover (3) (arrow A)
4	Manually unclip rear center console (1) from retaining clips (4)
5	Move rear center console cover (1) at rear top out of center console (3) at an angle of approx. 450 (arrow B)	Move center console cover (1) into center console (3) with guides (6).
6	Disconnect electrical connectors (5) from sockets	Model 205, 253 with code 301 (Package SMOKER) Model 205, 253 with code U67 (230 V socket in interior compartment) Model 205, 253 with code U80 (115 V socket) The number can vary according to the equipment.
7	Disconnect electrical connector (7) from rear air conditioning control unit (N22/4)	Model 205, 253 with code 581 (Automatic air conditioning)
8	Install in the reverse order
