Remove/install cover below instrument panel (right) - AR68.10-P-1520LW

MODEL 205

MODEL 253

Shown on model 205

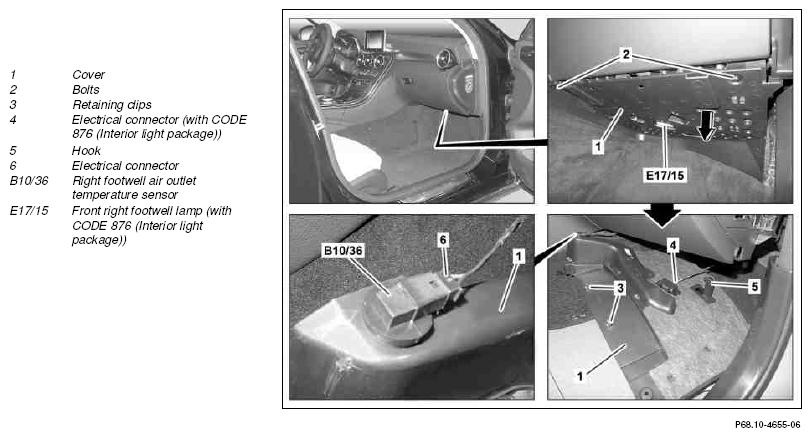

Fig 1: Instrument Panel Right Cover Remove/Install Components - Shown On Model 205

Courtesy of MERCEDES-BENZ TRUCK CO., INC.

	Remove/install
1	Adjust right front seat toward rear to end position
2	Switch off ignition and remove transmitter key
3	Remove screws (2)
4	Unclip cover (1) from retaining clips (3), unhook from hook (5) and lower (arrow) until electrical connectors (4, 6) are accessible	Installation of the electrical connector (4) depends on the vehicle equipment.
		Mounting wedge	Figure
5	Disconnect electrical connector (6)
6	Disconnect electrical connection (4)	Model 205 with code 876 (Interior Light package) Model 253 with code 876 (Interior Light package)
7	Take off cover (1)
8	Transfer right footwell vent air outlet temperature sensor (B10/36)	When replacing cover (1).
9	Transfer right front footwell lamp (E17/15)	Model 205 with code 876 (Interior Light package) Model 253 with code 876 (Interior Light package) When replacing cover (1).
10	Install in the reverse order

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ TRUCK CO., INC.
