Remove/install license plate lamps - AR82.10-P-5161LC

MODEL 205.3/4

MODEL 217

Shown on MODEL 217

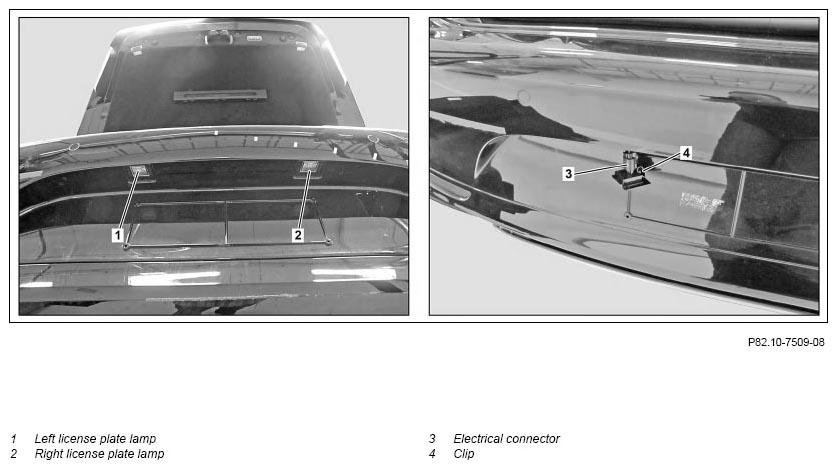

Fig 1: License Plate Lamps Remove/Install Components - Shown On Model 217

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Press corresponding clamps (4) inwards and remove left license plate lamp (1) or right license plate lamp (2)	Carefully release and move out. Otherwise paint damage can occur.
2	Disconnect electrical connector (3) at left license plate lamp (1) or right license plate lamp (2)
3	Install in the reverse order
