Remove/install rear SAM control unit - AR54.21-P-1269LWR
MODEL 205.4

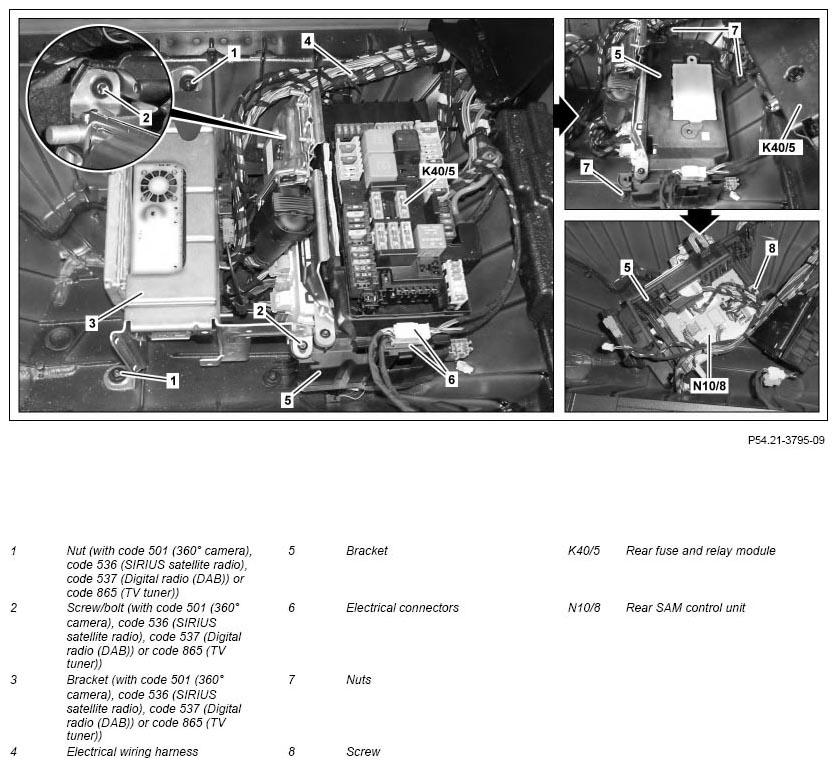

Shown with code 501 (360° camera), code 537 (Digital radio (DAB)), code 865 (TV tuner) and code U77 (BlueTEC (SCR) diesel exhaust treatment)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Perform initial startup of rear SAM control unit (N10/8) | When replacing the rear SAM control unit (N10/8). | |
| AD00.00-P-2000-04B | |||
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 3 | Remove rear cargo area floor | ||
| 4 | Remove trunk recess cover | ||
| 5 | Release electrical wiring harness (4) from bracket (5) | ||
| 6 | Unscrew nuts (1), remove screws/bolts (2) and place bracket (3) at the front on the trunk floor with control units mounted | Model 205.4 with code 501 (360° camera) Model 205.4 with code 536 (SIRIUS satellite radio) Model 205.4 with code 537 (Digital radio (DAB)) Model 205.4 with code 865 (TV tuner) |
|
| 7 | Unlock lower electrical connector (6) and remove from bracket (5) along with the upper electrical connector (6) and place to one side | ||
| 8 | Remove rear fuse and relay module (K40/5) from bracket (5) and place to one side with lines connected | ||
| 9 | Unscrew nuts (7) | ||
| 10 | Place bracket (5) to one side with control units mounted | ||
| 11 | Disconnect electrical connectors from rear SAM control unit (N10/8) | The number of electrical connectors may vary depending on the equipment. |
|
| 12 | Unscrew bolt (8) | ||
| 13 | Move rear SAM control unit (N10/8) out of bracket (5) | ||
| 14 | Install in the reverse order |
