Remove/install accelerator pedal - AR30.12-P-1321LF

MODEL 205

MODEL 217

MODEL 222

MODEL 253

MODIFICATION NOTES

4.8.15	Nut, accelerator pedal to firewall	Model 205	BA30.20-P-1001-03B
4.8.15	Nut, accelerator pedal to firewall	Model 217	BA30.20-P-1001-03B
4.8.15	Nut, accelerator pedal to firewall	Model 222	BA30.20-P-1001-03B

Shown on MODEL 222

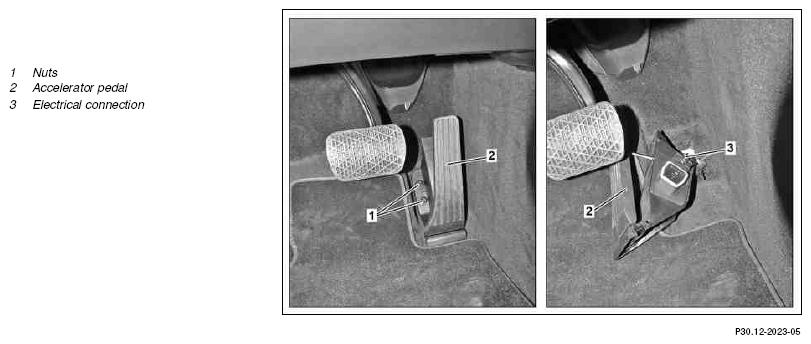

Fig 1: Accelerator Pedal Remove/Install Components - Shown On Model 222

Courtesy of MERCEDES-BENZ USA

Model 205, 222, 253 with CODE ME05 (HYBRID DRIVE 80KW VARIANT (INCLUDING PLUG-IN))

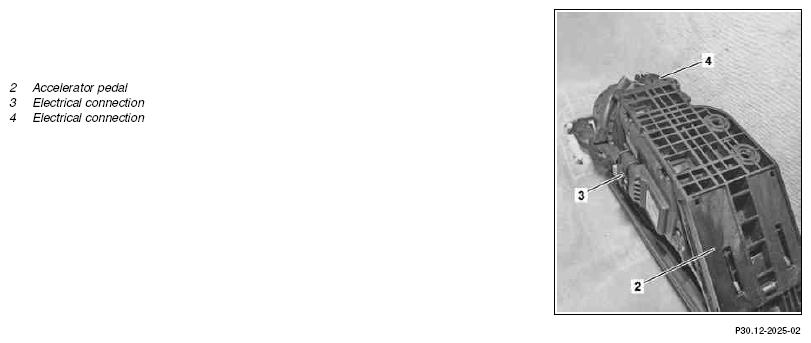

Fig 2: Accelerator Pedal Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Switch off ignition and remove transmitter key
2	Unscrew nuts (1), remove accelerator pedal (2) and place to one side	Nut, accelerator pedal to firewall	*BA30.20-P-1001-03B
3	Disconnect electrical connection (3)
4	Disconnect electrical connection (4)	Model 205, 222, 253 with code ME05 (HYBRID DRIVE 80KW VARIANT (INCLUDING PLUGIN))
5	Take out accelerator pedal (2)	The accelerator pedal (2) must not be disassembled. It can be damaged and must be replaced otherwise.
6	Install in the reverse order

ACCELERATOR PEDAL

Number	Designation		Model 205	Model 217
BA30.20-P-1001-03B	Nut, accelerator pedal to firewall	Nm	8	8

ACCELERATOR PEDAL

Number	Designation		Model 222	Model 253
BA30.20-P-1001-03B	Nut, accelerator pedal to firewall	Nm	8	8
