Check Main Circuit Coolant Level - AP20.30-P-2050CAA
Engine 177, 264, 274, 276, 626, 651, 654 in model 205

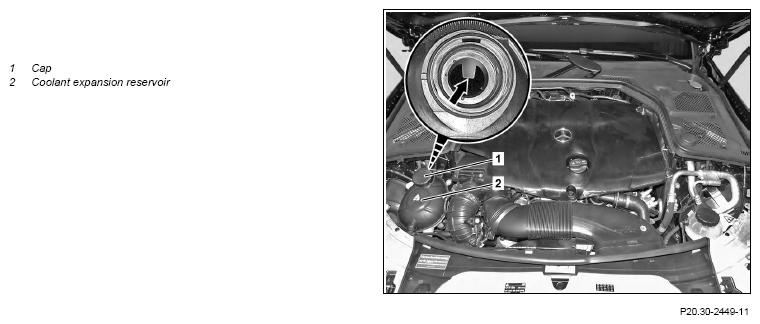

Shown on engine 651.9 in model 205.0
| Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Notes on coolant | AH20.00-N-2080-01A | ||
| Check | |||
| 1 | Check coolant level in light-dark boundary area of coolant expansion reservoir (2). | For coolant expansion reservoirs (2) with transparent tank lower part. If the coolant level is above the light-dark boundary, ↓ Coolant level correct, check complete, no further operations steps necessary. If the coolant level is below the light-dark boundary, ↓ Check coolant level in coolant expansion reservoir (2), continue with operation step 2. |
|
| Remove | |||
| 2 | Unscrew the cap (1) of the coolant expansion reservoir (2). | ||
| Check | |||
| 3 | Check coolant level. | If the coolant level is too low, ↓ Check coolant for leak tightness and check coolant for antifreeze content subject to separate repair order. |
|
| Coolant specifications | BB00.40-P-0310-01A | ||
| Install | |||
| 4 | Seal coolant expansion reservoir (2) with cap (1). |
