Routing Diagram For Poly-V Belt - AR13.22-P-3902-02MM

Engine 157, 276, 278

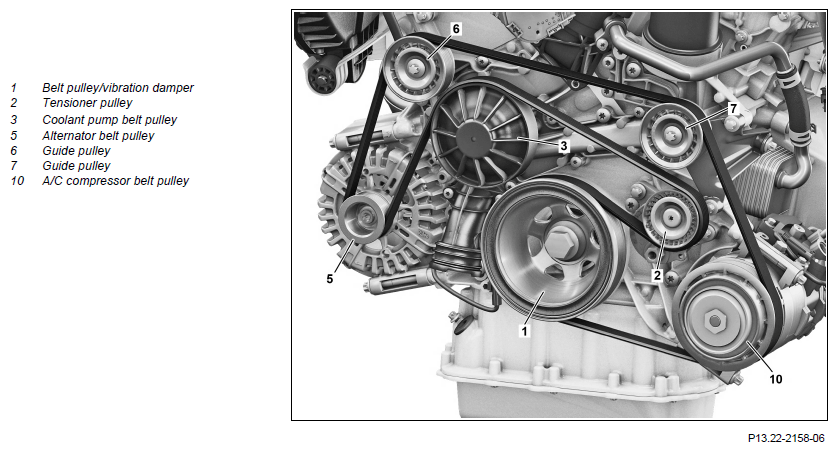

Shown on engine 276 in model 212.095/195

Fig 1: Poly-V Belt Routing Diagram - Engine 276 In Model 205 ; Shown On Engine 276 In Model 212.095/195

Courtesy of MERCEDES-BENZ USA

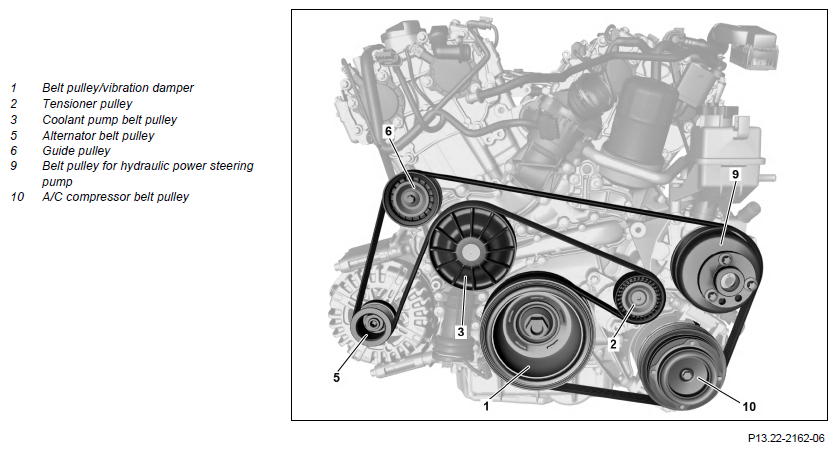

Shown: engine 276 without hydraulic power steering pump

Fig 2: Poly-V Belt Routing Diagram - Engine 276 In Model 205; Shown: Engine 276 Without Hydraulic Power Steering Pump

Courtesy of MERCEDES-BENZ USA

Shown: engine 276 with hydraulic power steering pump

Fig 3: Poly-V Belt Routing Diagram - Engine 276 In Model 205; Shown: Engine 276 With Hydraulic Power Steering Pump

Courtesy of MERCEDES-BENZ USA

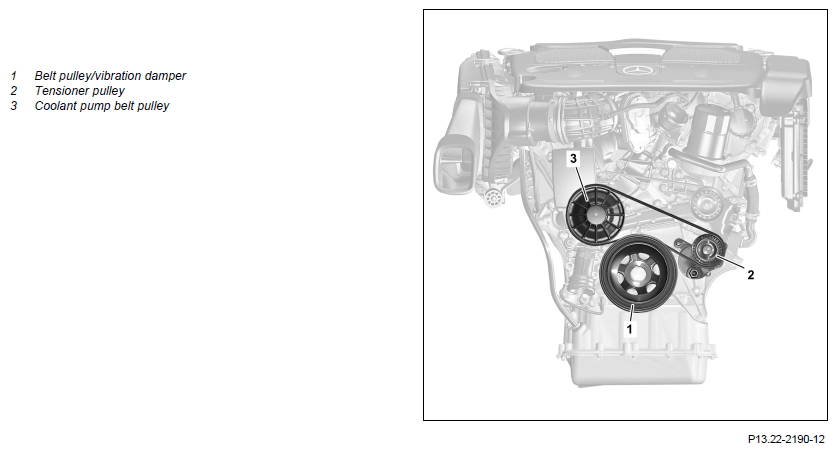

Shown: engine 157, 278 with code 487 (Active Body Control (ABC))

Courtesy of MERCEDES-BENZ USA

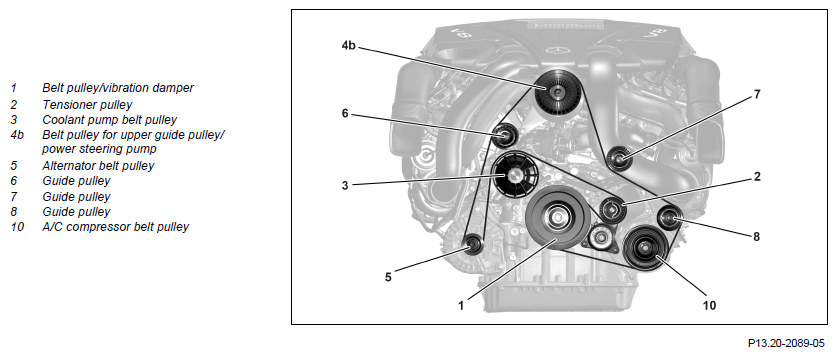

Shown: engine 157, 278 without code 487 (Active Body Control (ABC))

Courtesy of MERCEDES-BENZ USA

Shown: engine 157, 278 with code ME05 (HYBRID DRIVE 80KW VARIANT (INCLUDING PLUG-IN))

Courtesy of MERCEDES-BENZ USA

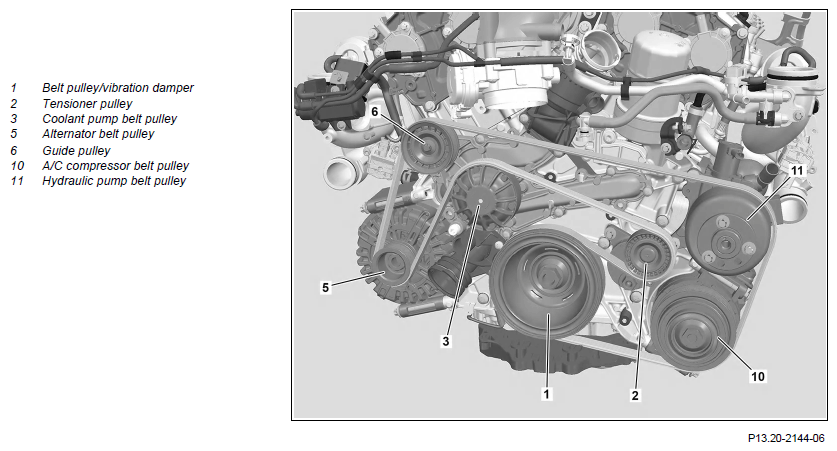

Shown: engine 276.8 with code 468 (ACTIVE CURVE SYSTEM)

Courtesy of MERCEDES-BENZ USA
