Sealing Seam After Repairing Roof - Ar97.10-P-4000-05CLW

Model 205.3

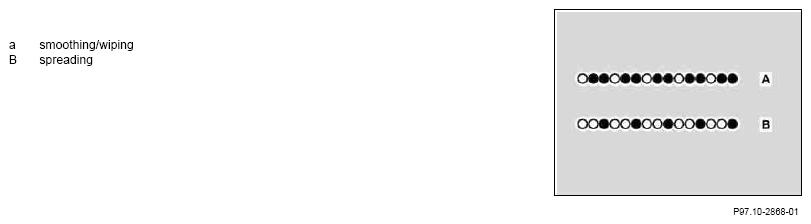

When sealing seams we differentiate between:

• smoothing/wiping (A)
• sealing/spreading

Courtesy of MERCEDES-BENZ USA

Area of center roof paneling, model 205.3 except code 413 (Panoramic sliding roof)

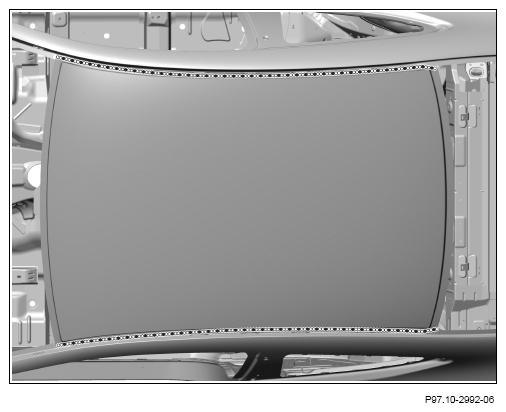

Fig 1: Center Roof Paneling Seam Sealing Locations (Model 205.3) (Except Panoramic Sliding Roof)

Courtesy of MERCEDES-BENZ USA

Area of roof paneling center section, model 205.3 with code 413 (Panoramic sliding roof)

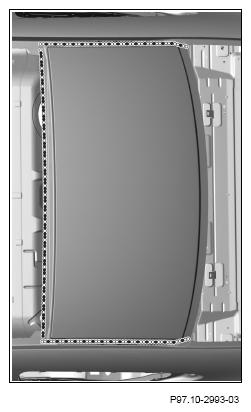

Fig 2: Center Roof Paneling Seam Sealing Locations (Model 205.3) (With Panoramic Sliding Roof)

Courtesy of MERCEDES-BENZ USA

1. Seal connecting flanges, spot welds and riveted joints of repaired area with seam sealing material.

   Observe standard sealing.

   Seal only primed body parts.

   Ensure that the threads on the weld nuts and threaded bolts as well as the drain openings in the contact surfaces for the axle attachments, pulleys or detachable parts are kept free of seam sealing material.

   It is necessary to seal accessible spot weld flanges on both sides.

2. Insert plastic plug and rubber grommets with seam sealant material.
