Install Rear Fender Complete - Ar63.50-P-1401-03LWR

Model 205.4

The following steps are shown on the left side of the vehicle and must be performed analogously on the right side in the event of damage.

Courtesy of MERCEDES-BENZ USA

1. Install rear fender (1) and fit.
2. Install rear bumper.
3. Install trunk lid.
4. Install rear lamp.
5. Install door seal.
6. Check and adjust gap dimensions.
7. Fix rear fender (1) in place.
8. Remove door seal.
9. Remove taillamp.
10. Remove trunk lid.
11. Remove rear bumper.

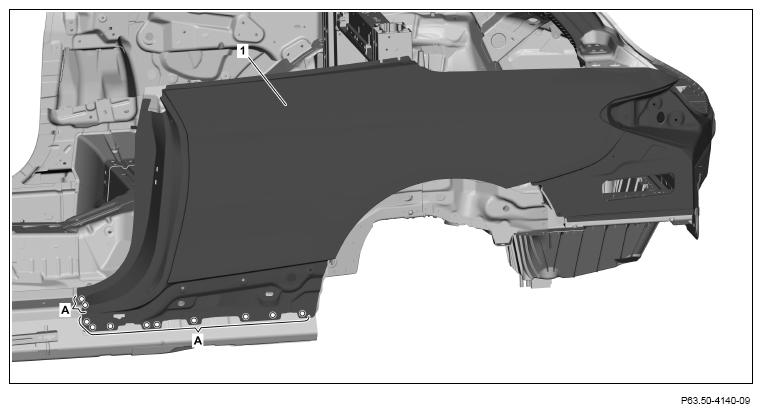

12. Drill rivet holes on rear fender (1) with Ø 6.7 mm bit (areas A).
13. Remove rear fender (1).
14. Deburr rivet holes on rear fender (1) and body on both sides.

    Courtesy of MERCEDES-BENZ USA

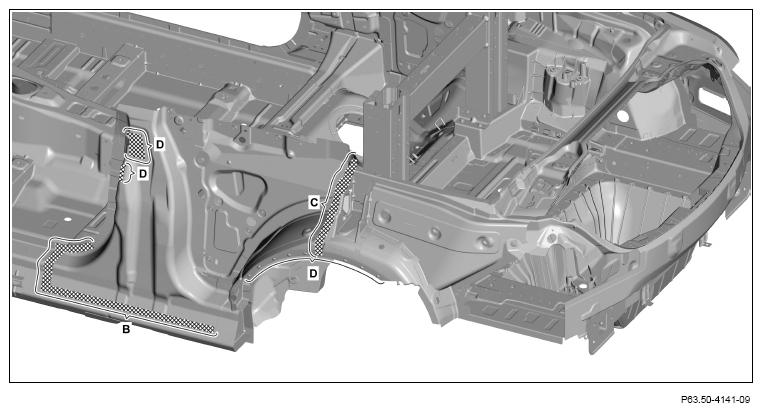

15. Apply sealant to outer rear wheel well in crosshatched areas to foam part and body (areas C and D).
16. Apply 2-component adhesive to body in crosshatched areas (areas B).

    Observe pretreatment of bonding surfaces. Observe manufacturer's specifications for drying and processing time of adhesive.

    Courtesy of MERCEDES-BENZ USA

17. Install rear fender (1) and fix in place.
18. Rivet rear fender (1) with Ø 6.5x14.5 rivet (areas E₁ ).

    Clamping range 5 mm.

19. Rivet rear fender (1) with Ø 6.5x14.5 rivet (area E₂ ).

    Clamping range 5 mm to 6.5 mm.

20. Rivet rear fender (1) with Ø 6.5x12.5 (area E₃ ).

    Clamping range 3.5 mm.

21. Rear fender (1) (areas F).

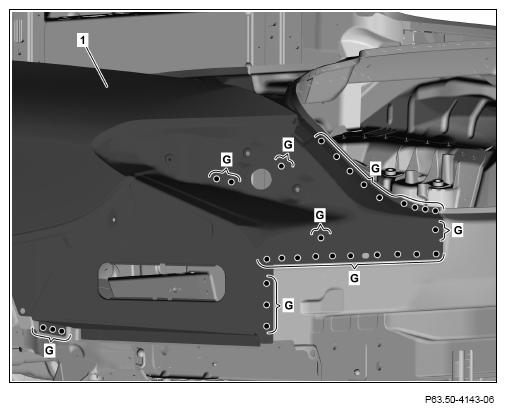

22. Rear fender (1) (areas G).

    Courtesy of MERCEDES-BENZ USA

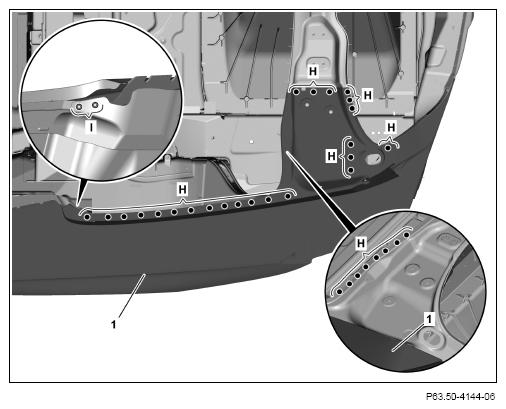

23. Rear fender (1) (areas H).
24. Rear fender (1) (area I).

    Courtesy of MERCEDES-BENZ USA
