Install Rear Fender - Ar63.50-P-1400-04LW

Model 205.0/1

The following steps are shown on the left side of the vehicle and must be performed on the right side in the same way in the event of damage.

Courtesy of MERCEDES-BENZ USA

1. Install rear fender (1), rear bumper, trunk lid, taillamp, door seal and lock striker and fit.
2. Check and adjust gap dimensions.
3. Fix rear fender (1) in place.
4. Remove rear bumper, trunk lid, taillamp, door seal and lock striker.

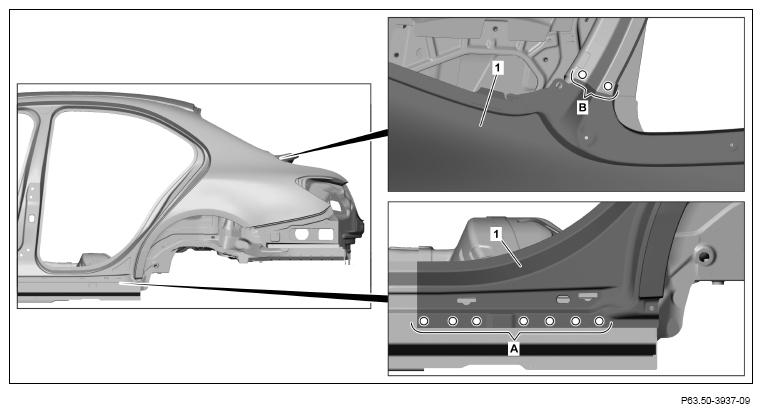

5. Drill Ø 6.7 mm rivet holes in rear fender (1) (areas A and B).

   Drill rivet holes through existing holes in body (area B).

6. Countersink rivet holes on body (area B).
7. Remove rear fender (1).
8. Deburr rivet holes on rear fender (1) and body on both sides.

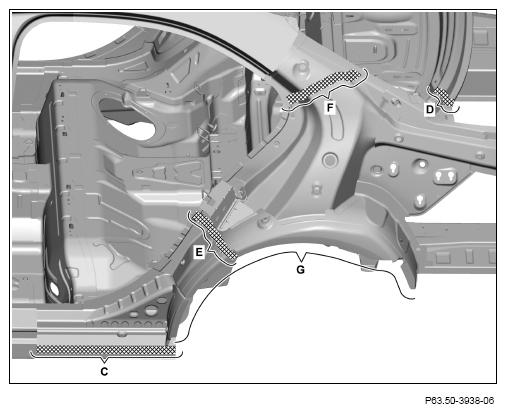

9. Install rubber window spacers from glazing repair kit as spacers on outer rear wheel well at uniform intervals (area G).
10. Apply sealant to foam parts and outer rear wheel well (areas E, F and G).
11. Apply 2-component adhesive to body in crosshatched areas (areas C and D).

    Apply 2-component adhesive to inside (area D).

    Observe pretreatment of bonding surfaces. Observe manufacturer's specifications for drying and processing time of adhesive.

    Courtesy of MERCEDES-BENZ USA

    Courtesy of MERCEDES-BENZ USA

12. Install rear fender (1), fit and fix in place.

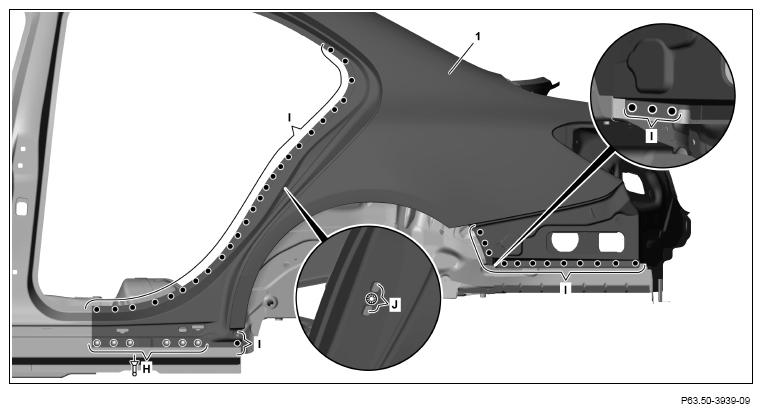

13. Rivet rear fender (1) with Ø 6.4x12 rivets (area H).
14. Rear fender (1) (areas I).
15. Rear fender (1) (area J).

    Courtesy of MERCEDES-BENZ USA

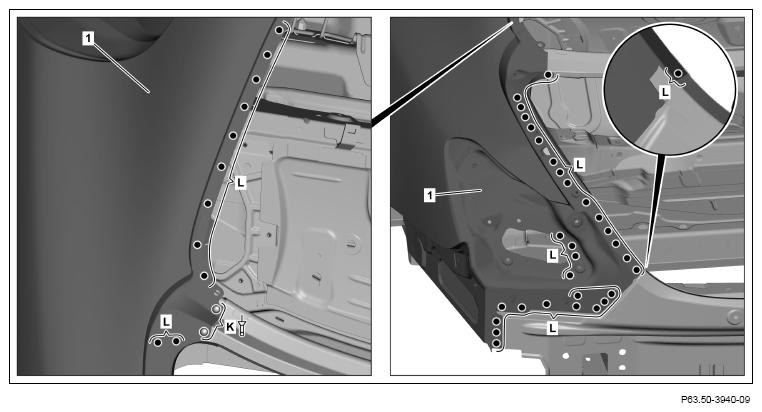

16. Rivet rear fender (1) with Ø 6.4x14.0 blind countersunk-head rivets (area K).
17. Rear fender (1) (areas L).

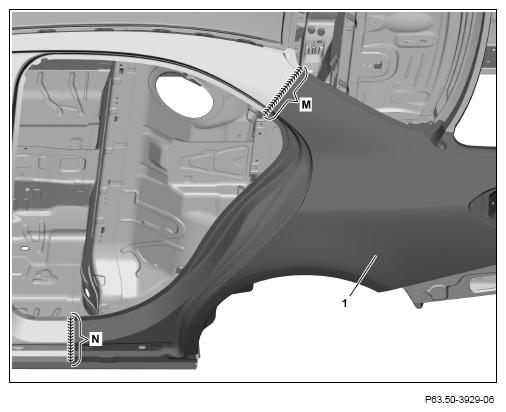

18. Rear fender (1) (areas M and N).

    Perform inert gas welding at intervals and allow to cool down in between. This reduces heat distortion.

19. Grind inert gas welds down flat (areas M and N).
20. Solder surfaces on rear fender (1) with body solder and smooth (areas M and N).
21. Remove solder residues and grinding dust.

    Courtesy of MERCEDES-BENZ USA
