Install Inner Sidewall With Outer Rear Wheel Well - Ar63.10-P-6051-03LWR
Model 205.4
The following steps are shown on the left side of the vehicle and must be performed analogously on the right side in the event of damage.
- Install inner side wall (1) and fit.
- Install waist line reinforcement.
- Install rear fender and fit.
- Fix inner side wall (1) in place.
- Remove rear fender.
- Remove waist line reinforcement.

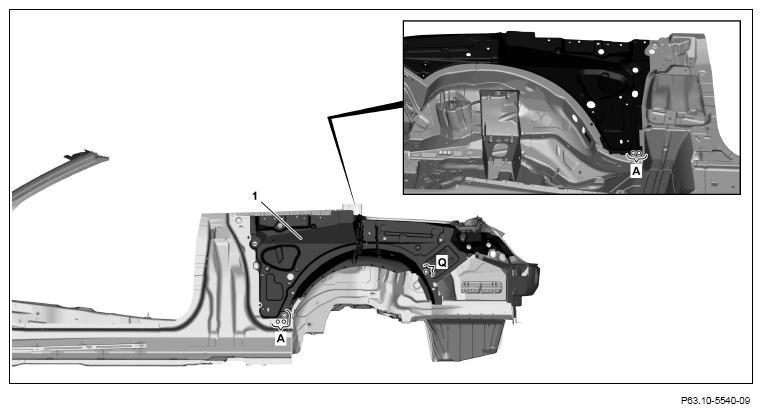

- Drill rivet holes in inner side wall (1) with Ø 6.7 mm bit (areas A).
- Drill rivet holes in inner side wall (1) with Ø 6.7 mm bit (area Q).
Left side of vehicle.

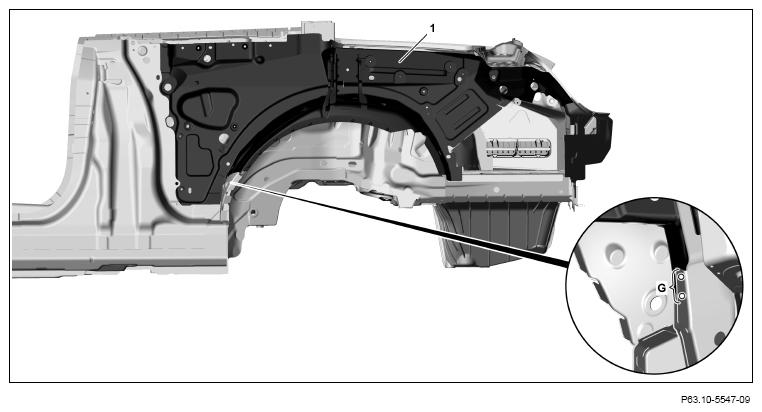

- Drill holes for plug welding on inner side wall (1) with Ø 7 mm bit (area G).
Drill holes through one panel thickness (area G).
- Remove inner sidewall (1).
- Deburr rivet holes on inner side wall (1) and body on both sides.
- Remove drilling chips.

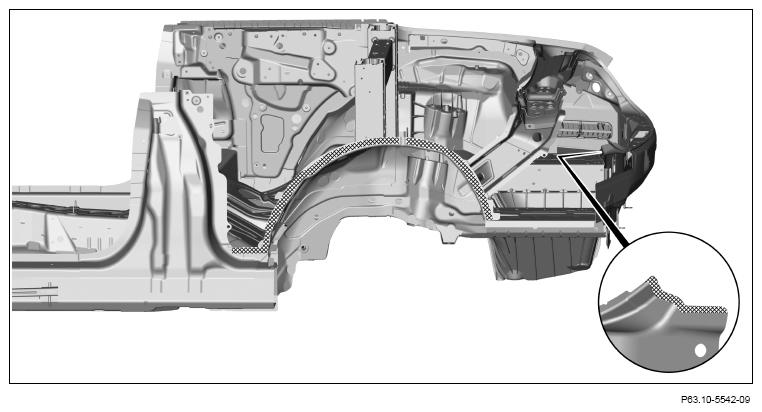

- Apply 2-component adhesive to body in crosshatched areas.
Observe pretreatment of bonding surfaces and manufacturer's specifications for drying and processing time of 2-component adhesive.
- Install inner side wall (1) and fix in place.
-
- 15.1 Left side of vehicle.

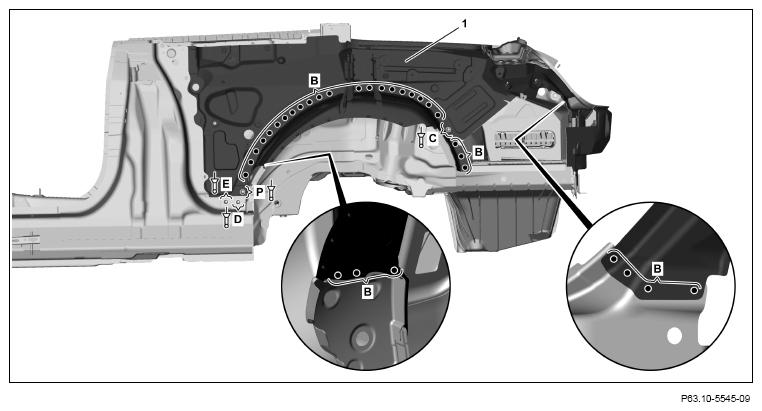

Rivet inner side wall (1) with Ø 6.4x12 rivet (area C).
Clamping range 2.4 mm
- 15.2 Right side of vehicle.
Inner side wall (1)
(area C).
- 15.1 Left side of vehicle.
- Rivet inner side wall (1) with Ø 6.5x12.5 rivet (area P).
Clamping range 3.5 mm
- Rivet inner side wall (1) with Ø 6.5x14.5 rivet (area D).
Clamping range 6.0 mm
- Rivet inner side wall (1) with Ø 6.4 rivet (area E).
Clamping range 9.3 mm
- Inner side wall (1)
(areas B).

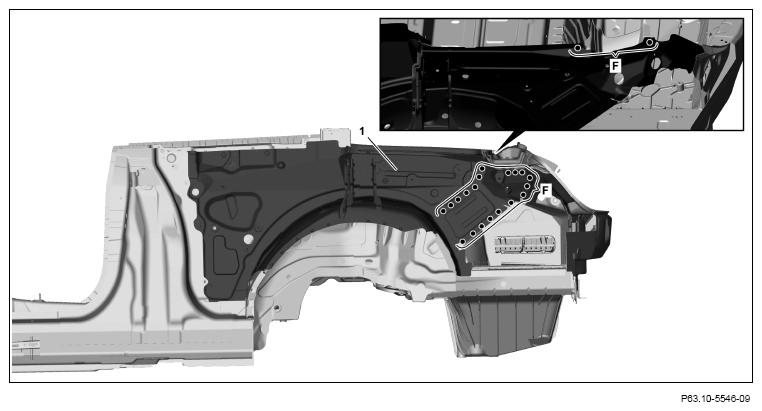

- Inner side wall (1)
(areas F).

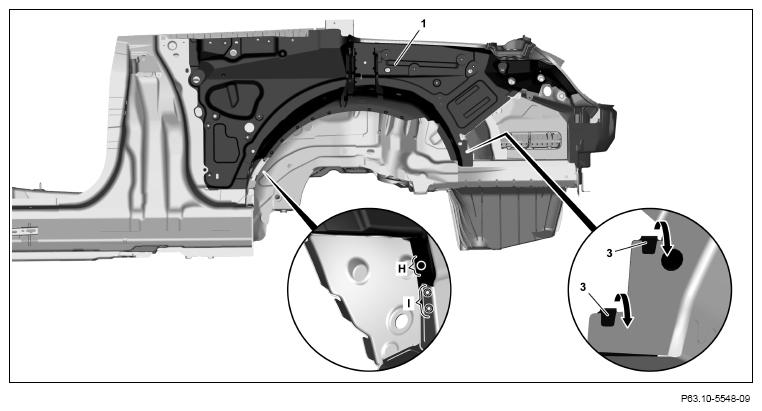

- Inner side wall (1)
(area H).
- Inner side wall (1)
(area I).
- Turn over sheet metal tabs (3) on inner side wall (1).

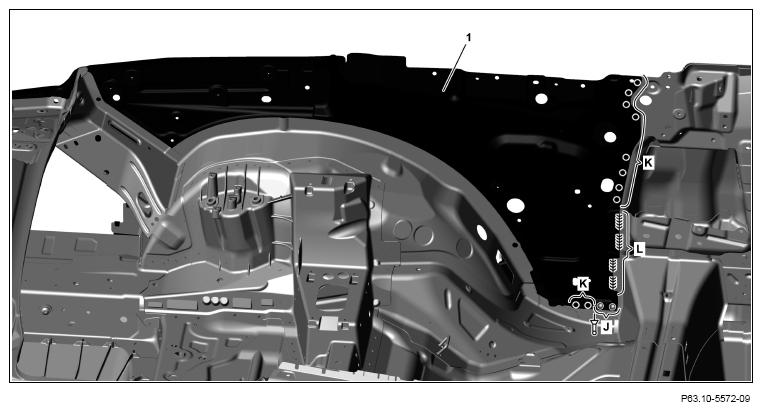

- Rivet inner side wall (1) with Ø 6.5x14.5 rivet (area J).
Clamping range 6 mm
- Inner side wall (1)
(areas K).
- Inner side wall (1)
(area L).
Perform inert gas welding at intervals and allow to cool down in between. This reduces heat distortion.
- Install strut (2) with portal bracket, fit and fix in place.
- Drill rivet holes in strut (2) with Ø 6.7 mm bit (area O).
- Remove strut (2).
- Deburr rivet holes in strut (2) and body on both sides.
- Remove drilling chips.
- Coat insides of riveted joints with zinc dust paint.
- Install strut (2) with portal bracket, fit and fix in place.

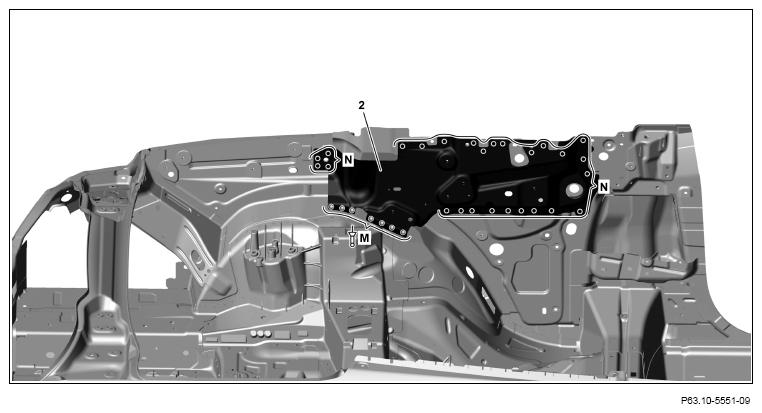

- Rivet strut (2) with Ø 6.4x12 rivet (area M).
Clamping range 2.5 mm
- Strut (2)
(areas N).
- Remove portal bracket.
- Clean weld joints that are no longer accessible after installation of waist line reinforcement and fender, and coat with zinc dust paint.
