Remove/Install Trunk Lid Cover - AR68.30-P-8151LWR
Model 205.4, 238.4
MODIFICATION NOTES
| 30.01.2020 | Remove trim (1). | Operation step 5 |
Shown on model 205.4 up to model year 2020
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. | AS00.00-Z-0017-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||

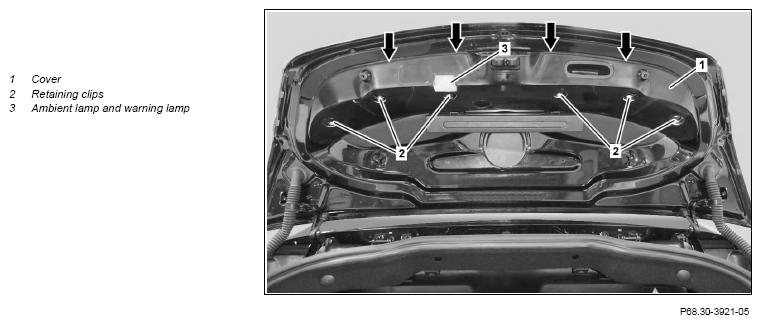

| 1 | Remove retaining clips (2). | Fig 1 | |
| 2 | Unclip trim (1) at trunk lid (arrows). | ||
| 3 | Release and disconnect electrical connector of ambient lamp and warning lamp (3). | Model 205.4 up to model year 2020 Model 238.4 |
|
| 4 | Release and disconnect electrical connector of trunk separator switch (S138/3). | Model 238.4 | |
| 5 | Remove trim (1). | ||
| 6 | Install in the reverse order. |
