Remove/Install Rear Bumper - AR88.20-P-2200LW

Model 205.0/1/3/4

Model 213.0/1

MODIFICATION NOTES

22.03.2018 Special tool changed. Operation steps 6, 7, 8

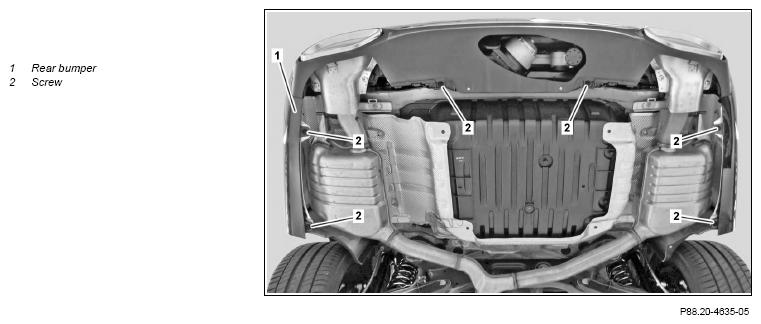

Shown on model 213.0

G13023946Courtesy of MERCEDES-BENZ USA

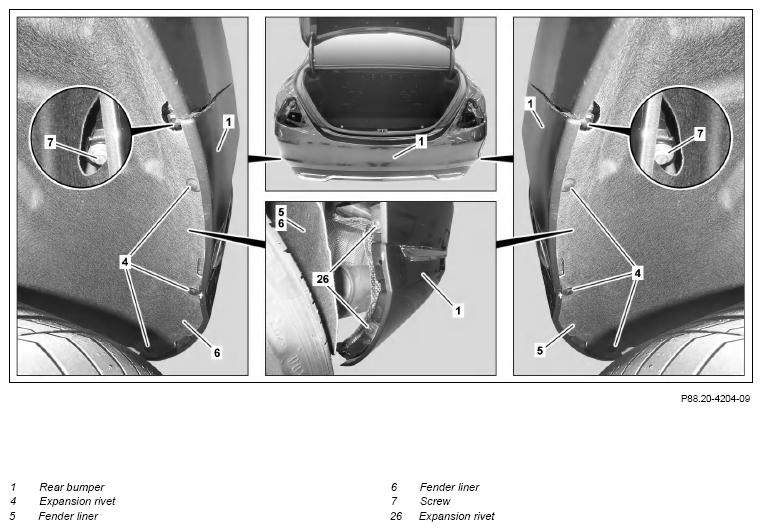

G13023947Courtesy of MERCEDES-BENZ USA

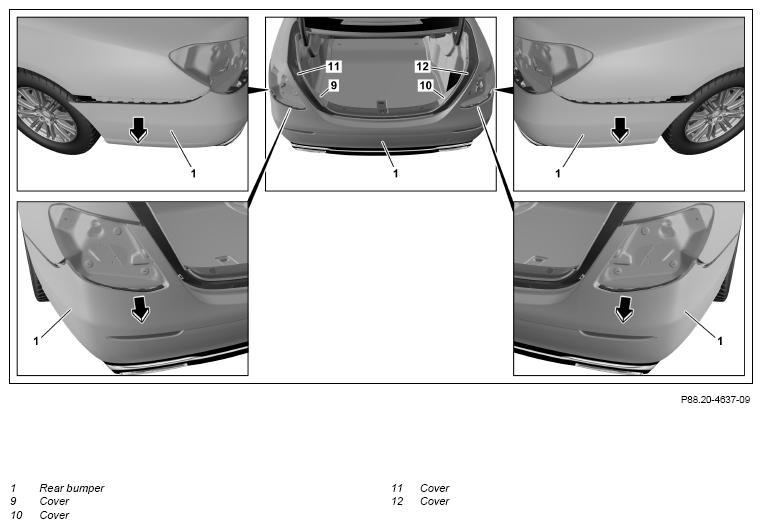

Shown on model 205.0

G13023948Courtesy of MERCEDES-BENZ USA

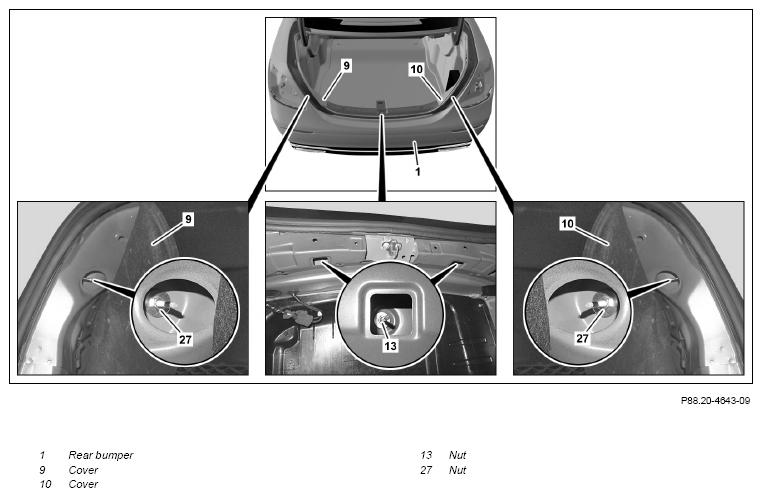

Shown on model 213.0

G13023949Courtesy of MERCEDES-BENZ USA

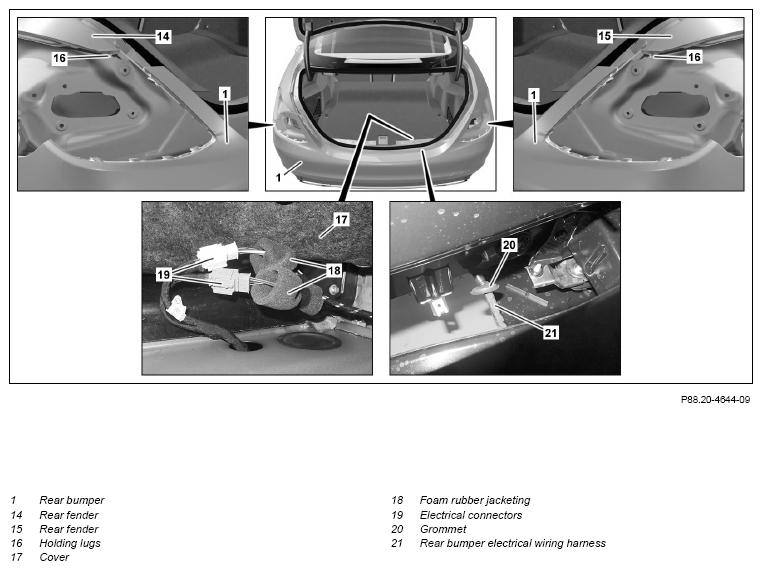

Shown on model 205.0

G13023950Courtesy of MERCEDES-BENZ USA

Shown on model 205.0 with code 234 (Blind Spot Assist) and with code 235 (Active Parking Assist with PARKTRONIC) and with code 871 (HANDS-FREE ACCESS)

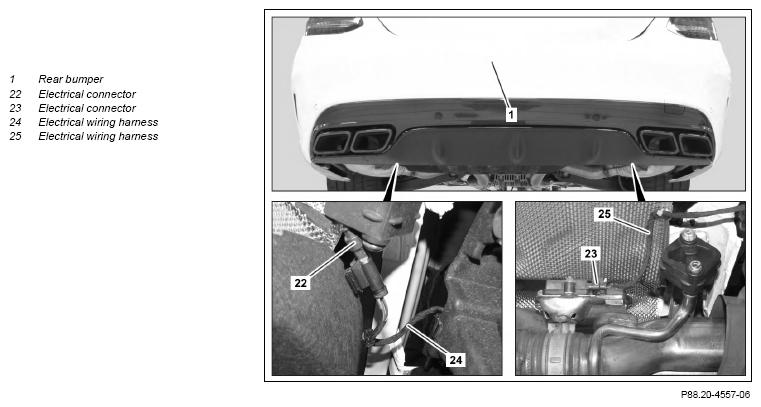

Shown on model 205.0 with code U78 (AMG Sport exhaust system)

G13023951Courtesy of MERCEDES-BENZ USA
WARNING Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. No parts of the body or limbs should be within the operating area when the components are moving. AS00.00-Z-0011-01A
  Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
  Notes on HANDS-FREE ACCESS   AH80.61-P-0001-01A
REMOVINGINSTALLING Remove/install
1 Remove charger feed socket flap. Model 205.047/147 AR54.10-P-5110LWH
2 Remove left rear lamp unit and right rear lamp unit. Model 205.0/1, 213.0/1 AR82.10-P-4905LW
    Model 205.3/4 AR82.10-P-4731CLW
3 Raise vehicle.   AR00.60-P-1002LWG
4 Disconnect electrical connectors (22, 23) and expose electrical wiring harnesses (24, 25). Model 205.0/3/4
with code U78 (AMG sports exhaust system)

5 Unscrew bolts (2).
6 Remove all expansion rivets from rear bumper (1) at bottom. IMPORTANT The number of expansion rivets can vary according to equipment/motorization.
    SPECIAL TOOL Dismantling tool Fig 1
7 Remove expansion rivets (4) from fender liners (5, 6). SPECIAL TOOL Dismantling tool Fig 1
8 Press fender liners (5, 6) to side and remove expansion rivets (26). SPECIAL TOOL Dismantling tool Fig 1
9 Unscrew screws (7).
10 Unclip covers (11, 12) in lower area. SPECIAL TOOL Long wedge Fig 2
11 Loosen trims (9, 10) in rear area and press to side. Model 205.0/1 AR68.30-P-4800LW
    Model 213.0/1 AR68.30-P-4800LWE
12 Unscrew nuts (13).
13 Unscrew nuts (27). Model 205.0/1
14 Unclip rear bumper (1) from rear fenders (14, 15) and in area of rear lamp units in direction of arrow.
15 Loosen trim (17) until electrical connectors (19) are accessible. Model 205.0/1/3/4
with code 234 (Blind Spot Monitoring)
Model 205.0/1/3/4
with code 235 (Active Parking Assist with PARKTRONIC)
Model 205.0/1/3/4
with code 237 (Active Blind Spot Assist)
Model 205.0/1/3/4
with code 238 (Active lane keeping Assist)
Model 205.0/1/3/4
with code 253 (Rear impact warning and protection system)
Model 205.0/1/3/4
with code 871 (HANDS-FREE ACCESS)

16 Push back foam sleeves (18) and disconnect electrical connectors (19). Model 205.0/1/3/4
with code 234 (Blind Spot Monitoring)
Model 205.0/1/3/4
with code 235 (Active Parking Assist with PARKTRONIC)
Model 205.0/1/3/4
with code 237 (Active Blind Spot Assist)
Model 205.0/1/3/4
with code 238 (Active lane keeping Assist)
Model 205.0/1/3/4
with code 253 (Rear impact warning and protection system)
Model 205.0/1/3/4
with code 871 (HANDS-FREE ACCESS)
IMPORTANT The number of electrical connectors (19) can vary depending on the equipment.

17 Pull grommet (20) and rear bumper electrical wiring harness (21) out of body. Model 205.0/1/3/4
with code 234 (Blind Spot Monitoring)
Model 205.0/1/3/4
with code 235 (Active Parking Assist with PARKTRONIC)
Model 205.0/1/3/4
with code 237 (Active Blind Spot Assist)
Model 205.0/1/3/4
with code 238 (Active lane keeping Assist)
Model 205.0/1/3/4
with code 253 (Rear impact warning and protection system)
Model 205.0/1/3/4
with code 871 (HANDS-FREE ACCESS)

18 Unclip rear bumper (1) from holding lugs (16) on rear fenders (14, 15). Model 205.0/1
19 Remove rear bumper (1) until electrical connectors are accessible. Model 213.0 (except 213.050), 213.1
with code 233 (DISTRONIC PLUS)
Model 213.0 (except 213.050), 213.1
with code 234 (Blind Spot Monitoring)
Model 213.0 (except 213.050), 213.1
with code 235 (Parking Pilot with PARKTRONIC)
Model 213.0 (except 213.050), 213.1
with code 871 (HANDS-FREE ACCESS)
Model 213.050

20 Disconnect electrical connectors from rear bumper (1). Model 213.0 (except 213.050), 213.1
with code 233 (DISTRONIC PLUS)
Model 213.0 (except 213.050), 213.1
with code 234 (Blind Spot Monitoring)
Model 213.0 (except 213.050), 213.1
with code 235 (Parking Pilot with PARKTRONIC)
Model 213.0 (except 213.050), 213.1
with code 871 (HANDS-FREE ACCESS)
Model 213.050

21 Remove rear bumper (1). IMPORTANT Helper required.
22 Install in the reverse order.
Fig 1: Identifying Dismantling Tool (000 589 95 63 00)
G12083439Courtesy of MERCEDES-BENZ USA
Fig 2: Identifying Long Wedge (115 589 03 59 00)
G07070400Courtesy of MERCEDES-BENZ USA
