Remove/Install Complete Outside Mirror - AR88.70-P-9000LW

Model 205.0/1/2

Model 213

Model 253

Model 293

Shown on left side of vehicle, model 205.0

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Shown on left side of vehicle, model 205.0

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Move side window in front door to lower-most position.

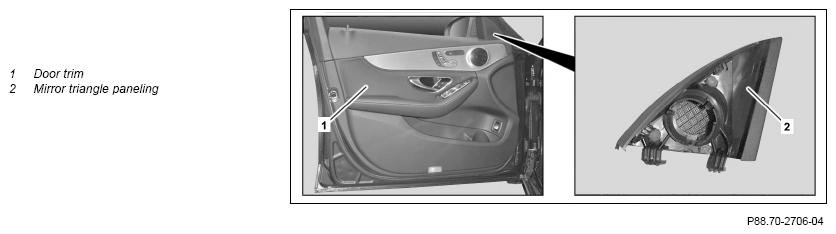

2.1	Loosen door trim (1) until electrical connectors (3, 4) on front door control unit (12) are accessible.	Model 205.0/1/2, 213, 253, 293 except code 270 (Aerial for GPS) except code 274 (Telephone antenna) except code 501 (360° camera)	AR72.10-P-1000LW
2.2	Remove door trim (1) at front door.	Model 205.0/1/2, 213, 253, 293 with code 270 (Aerial for GPS) Model 205.0/1/2, 213, 253, 293 with code 274 (Telephone antenna) Model 205.0/1/2, 213, 253, 293 with code 501 (360° camera)	AR72.10-P-1000LW
3	Remove mirror triangle trim (2) on front door.	Model 205.0/1/2 with code 810 (Sound system) Model 253, 293 with code 810 (Sound system) Allow mirror triangle paneling (2) to hang down with electrical line connected. Model 213 Allow mirror triangle paneling (2) to hang down with electrical lines connected. The number of electrical connectors may vary depending on the equipment.

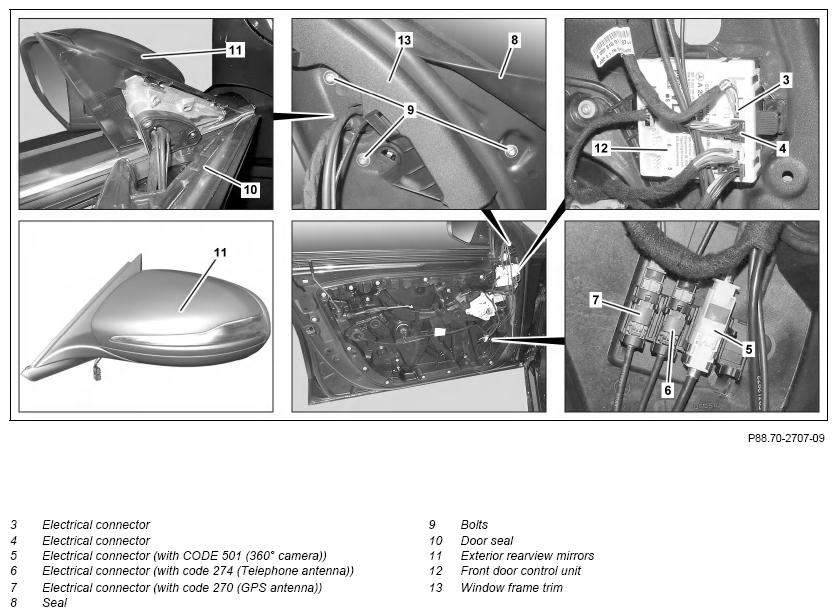

4	Disconnect electrical connectors (3, 4) from front door control unit (12).
5	Unclip electrical connector (5) from bracket and disconnect.	Model 205.0/1/2, 213, 253, 293 with code 501 (360° camera)
6	Unclip electrical connector (6) from bracket and disconnect.	Model 205.0/1/2, 213, 253, 293 with code 274 (Telephone antenna)
7	Unclip electrical connector (7) from bracket and disconnect.	Model 205.0/1/2, 213, 253, 293 with code 270 (Aerial for GPS)
8	Loosen window frame trim (13) in area of screws (9).	Model 213 The window frame paneling (13) is clipped into the window frame with a retaining clip in the area of the mirror triangle.
9	Lift seal (8) and remove screws (9).
10	Move top of outside mirror (11) out of door seal (10) and remove.
11	Install in the reverse order
12.1	Calibrate 360° camera in outside mirror (11) with diagnostic system.	Model 205.0/1/2, 213, 253, 293 with code 501 (360° camera) If the left or right outside mirror (11) has been removed.
		Model 293 with code 501 (360° camera)	AD00.00-P-2000-06FR
		Model 205.0/1/2, 213, 253 with code 501 (360° camera)	AD00.00-P-2000-04B
12.2	Calibrate all the cameras in the 360° camera system using the vehicle diagnosis system.	Model 205.0/1/2, 213, 253, 293 with code 501 (360° camera) If the left or right outside mirror (11) has been removed.
		Model 205.0/1/2, 213, 253 with code 501 (360° camera)	AD00.00-P-2000-04B
		Model 293 with code 501 (360° camera)	AD00.00-P-2000-06FR
	Check
13	Perform function test of outside mirror (11).
