Remove/Install Rear SAM Control Unit - AR54.21-P-1269LWQ
Model 205.4
as of model year 2019
Shown with code B01 (48V technology)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Commission rear SAM control unit (N10/8). | When replacing the rear SAM control unit (N10/8). | |
| AD00.00-P-2000-04B | |||
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 3 | Remove trunk recess trim. | ||
| 4 | Remove on-board electrical system battery. | Model 205.4 as of model year 2019 with code B01 (48V technology) |
AR54.10-P-0005LW |

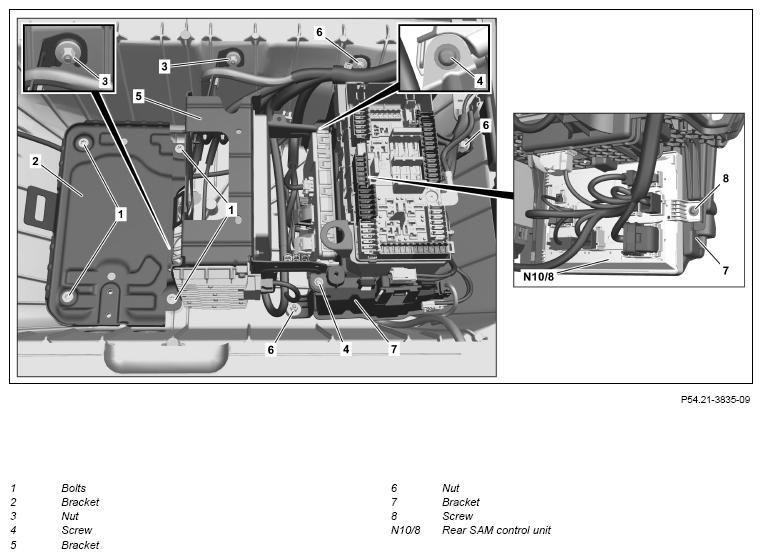

| 5 | Remove screws (1) and remove bracket (2). | Model 205.4 as of model year 2019 with code B01 (48V technology) |
|
| 6 | Unscrew nuts (3), remove screws (4) and lift holder (5) together with the mounted control units and place to one side. | Model 205.4 as of model year 2019 with code B01 (48V technology) |
|
| 7 | Unscrew nuts (6). | ||
| 8 | Lift bracket (7) together with mounted control units far enough until the rear SAM control unit (N10/8) is accessible. | ||
| 9 | Disconnect all electrical connectors from rear SAM control unit (N10/8). | ||
| 10 | Remove screw/bolt (8). | ||
| 11 | Route rear SAM control unit (N10/8) out of holder (7) and remove. | ||
| 12 | Install in the reverse order. |
