Remove/Install Rear SAM Control Unit - AR54.21-P-1269LWM
Model 205.0 (except 205.013/053/054), 205.2 (except 205.213/253)
as of model year 2019
Model 205.1
as of model year 2019 Model 205.3
as of model year 2019
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Commission rear SAM control unit (N10/8). | When replacing the rear SAM control unit (N10/8). | |
| AD00.00-P-2000-04B | |||
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 3 | Remove trunk recess trim or load compartment well trim. | Model 205.0 (except 205.013/053/054), 205.2 (except 205.213/253) as of model year 2019 Model 205.1 as of model year 2019 Model 205.3 as of model year 2019 Model 205.0 (except 205.013/053/054) as of model year 2019 Model 205.1 as of model year 2019 Model 205.3 as of model year 2019 |
AR68.30-P-4600LW |

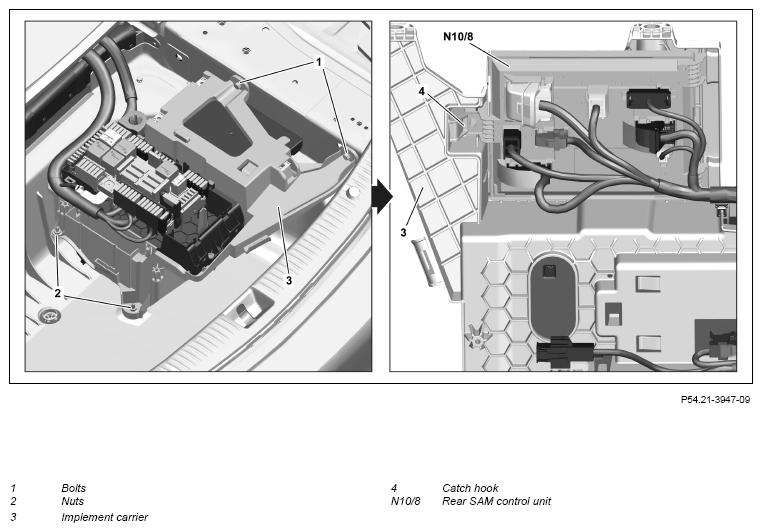

| 4 | Unscrew screw/bolts (1). | ||
| 5 | Unscrew nuts (2). | ||
| 6 | Remove equipment carrier (3) with connected electrical lines and put down. | ||
| 7 | Disconnect all electrical connectors from rear SAM control unit (N10/8). | ||
| 8 | Release catch hooks (4) and remove rear SAM control unit (N10/8) from underside of equipment carrier (3). | ||
| 9 | Install in the reverse order. |
