Remove/Install Rear SAM Control Unit - AR54.21-P-1269LW
Model 205.0/1/2
up to model year 2019
except code ME06 (Hybrid drive 60 kW variant (incl. plugin))
Model 205.3
up to model year 2019
Shown on model 205.0 except code 537 (Digital radio (DAB))

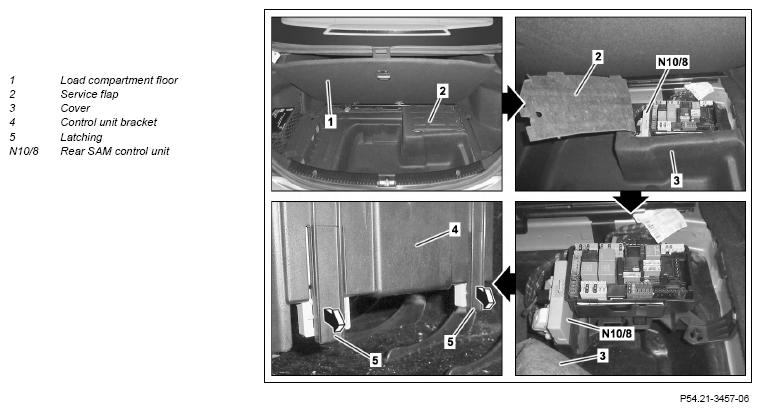

Fig 1: Rear SAM Control Unit Components Location - Model 205.0/3 Up To Model Year 2019 Except Code ME06, ; Shown On Model 205.0 Except Code 537
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Commission rear SAM control unit (N10/8). | When replacing the rear SAM control unit (N10/8). | |
| AD00.00-P-2000-04B | |||
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 3.1 | Fold up trunk floor (1) and secure. | Model 205.0/1 up to model year 2019 except code ME06 (Hybrid drive 60 kW variant (incl. plugin)) Model 205.3 up to model year 2019 |
|
| 3.2 | Remove load compartment floor rear section. | Model 205.2 up to model year 2019 except code ME06 (Hybrid drive 60 kW variant (incl. plugin)) |
|
| 4 | Open service flap (2). | Model 205.0/1/2/3 up to model year 2019 except code 536 (SIRIUS satellite radio) except code 537 (Digital radio (DAB)) except code 550 (Trailer coupling) except code 865 (TV tuner) except code ME06 (Hybrid drive 60 kW variant (incl. plugin)) |
|
| 5.1 | Push trim (3) to one side until the rear SAM control unit (N10/8) is accessible. | Model 205.0/1/2/3 up to model year 2019 except code 536 (SIRIUS satellite radio) except code 537 (Digital radio (DAB)) except code 550 (Trailer coupling) except code 865 (TV tuner) except code ME06 (Hybrid drive 60 kW variant (incl. plugin)) |
|
| 5.2 | Remove paneling (3) | Model 205.0/1/2 up to model year 2019 with code 865 (TV tuner) except code ME06 (Hybrid drive 60 kW variant (incl. plugin)) Model 205.0/2 up to model year 2019 with code 536 (SIRIUS satellite radio) except code ME06 (Hybrid drive 60 kW variant (incl. plugin)) Model 205.0/2 up to model year 2019 with code 537 (Digital radio (DAB)) except code ME06 (Hybrid drive 60 kW variant (incl. plugin)) Model 205.0/2 up to model year 2019 with code 550 (Trailer coupling) except code ME06 (Hybrid drive 60 kW variant (incl. plugin)) Model 205.3 up to model year 2019 with code 536 (SIRIUS satellite radio) Model 205.3 up to model year 2019 with code 537 (Digital radio (DAB)) Model 205.3 up to model year 2019 with code 550 (Trailer coupling) Model 205.3 up to model year 2019 with code 865 (TV tuner) |
|

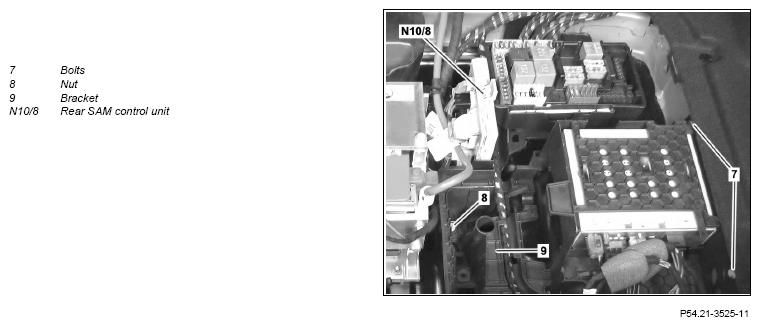

| 6 | Remove screws (7), unscrew nut (8) and place holder (9) to one side with connected lines. | Model 205.0/1/2 up to model year 2019 with code 865 (TV tuner) except code ME06 (Hybrid drive 60 kW variant (incl. plugin)) Model 205.0/2 up to model year 2019 with code 536 (SIRIUS satellite radio) except code ME06 (Hybrid drive 60 kW variant (incl. plugin)) Model 205.0/2 up to model year 2019 with code 537 (Digital radio (DAB)) except code ME06 (Hybrid drive 60 kW variant (incl. plugin)) Model 205.0/2 up to model year 2019 with code 550 (Trailer coupling) except code ME06 (Hybrid drive 60 kW variant (incl. plugin)) Model 205.3 up to model year 2019 with code 536 (SIRIUS satellite radio) Model 205.3 up to model year 2019 with code 537 (Digital radio (DAB)) Model 205.3 up to model year 2019 with code 550 (Trailer coupling) Model 205.3 up to model year 2019 with code 865 (TV tuner) |
|
| 7 | Release catches (5) in direction of arrow. | Fig 2 | |

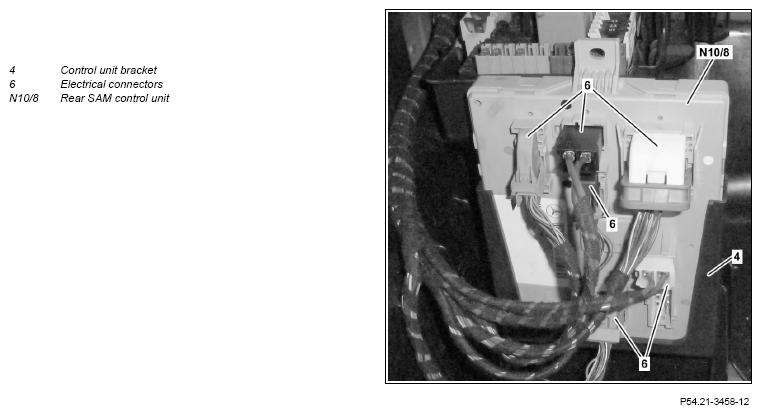

| 8 | Remove rear SAM control unit (N10/8) from control unit bracket (4). | ||
| 9 | Disconnect electrical connectors (6). | ||
| 10 | Remove rear SAM control unit (N10/8). | ||
| 11 | Install in the reverse order. |
