Remove/Install Parking System Control Unit - AR54.65-P-0018LWQ
Model 205.4
as of model year 2019
with code 235 (Active Parking Assist with PARKTRONIC)

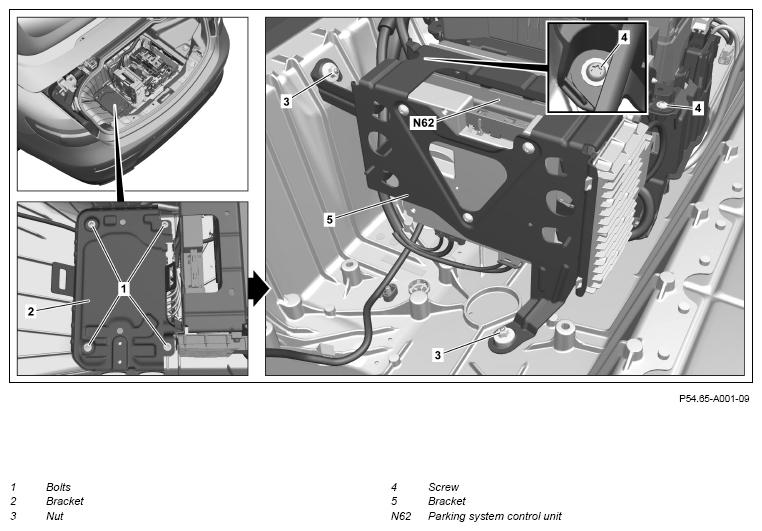

Fig 1: Parking System Control Unit Components Location - Model 205.4 As Of Model Year 2019 With Code 235
Shown with code B01 (48V technology) and with code 865 (TV tuner)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Commission parking system control unit (N62). | When replacing parking system control unit (N62). | |
| AD00.00-P-2000-04B | |||
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 3 | Remove trunk recess trim. | ||
| 4 | Remove on-board electrical system battery. | Model 205.4 as of model year 2019 with code 235 (Active Parking Assist with PARKTRONIC) with code B01 (48V technology) |
AR54.10-P-0005LW |
| 5 | Remove screws (1) and bracket (2). | Model 205.4 as of model year 2019 with code 235 (Active Parking Assist with PARKTRONIC) with code B01 (48V technology) |
|
| 6 | Unscrew nuts (3). | ||
| 7 | Unscrew screw/bolts (4). | ||
| 8 | Lift bracket (5) with the parking system control unit (N62). | ||
| 9 | Disconnect electrical connectors from parking system control unit (N62). | ||
| 10 | Remove parking system control unit (N62) from bracket (5). | ||
| 11 | Install in the reverse order. |
