Remove/Install Parking System Control Unit - AR54.65-P-0018LWM
Model 205.0/1/2
as of model year 2019
with code 235 (Active Parking Assist with PARKTRONIC)

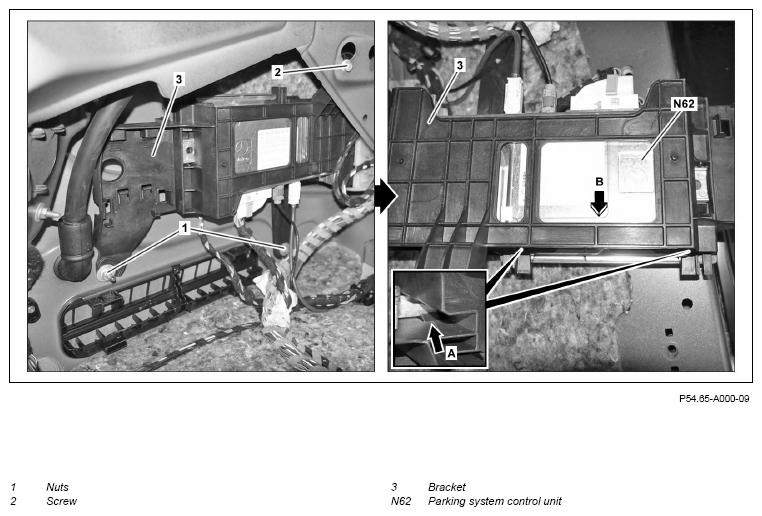

Fig 1: Parking System Control Unit Components Location - Model 205.0 As Of Model Year 2019 With Code 235
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Commission parking system control unit (N62). | When replacing parking system control unit (N62). | |
| AD00.00-P-2000-04B | |||
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 3.1 | Remove left trunk lining at side. | Model 205.0/1 as of model year 2019 with code 235 (Active Parking Assist with PARKTRONIC) |
AR68.30-P-4600LW |
| 3.2 | Remove left load compartment trim at side. | Model 205.2 as of model year 2019 with code 235 (Active Parking Assist with PARKTRONIC) |
AR68.30-P-1180LWS |
| 4 | Unscrew nuts (1). | ||
| 5 | Release bolt (2) and remove holder (3) with parking system control unit (N62) and place into vehicle. | ||
| 6 | Disconnect electrical connectors from parking system control unit (N62). | ||
| 7 | Release parking system control unit (N62) at catches (arrow A) and remove in direction of arrow (B) from holder (3). | ||
| 8 | Install in the reverse order. |
