Remove/Install Mercedes-Benz Intelligent Drive Control Unit - AR54.21-P-0044LWN
Model 205.3
as of model year 2019
with code 233 (DISTRONIC PLUS)

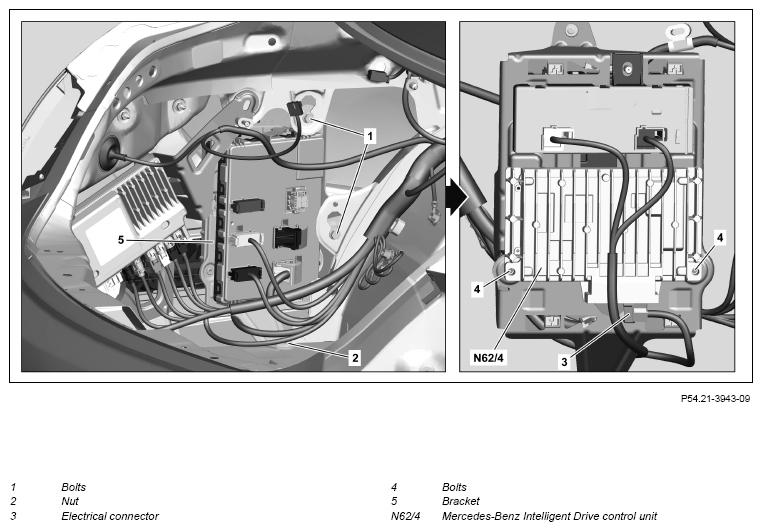

Fig 1: Mercedes-Benz Intelligent Drive Control Unit Components Location - Model 205.3 As Of Model Year 2019 With Code 233
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Commission Mercedes-Benz Intelligent Drive control unit (N62/4). | When replacing Mercedes-Benz Intelligent Drive control unit (N62/4). | |
| AD00.00-P-2000-04B | |||
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 3 | Remove trim from trunk on left side. | AR68.30-P-4800LW | |
| 4 | Release bolts (1). | ||
| 5 | Unbolt nut (2). | ||
| 6 | Remove holder (5) with control units and place into trunk. | ||
| 7 | Disconnect electrical connector (3). | ||
| 8 | Remove bolts (4) and remove Mercedes-Benz Intelligent Drive control unit (N62/4). | ||
| 9 | Install in the reverse order. |
