Remove/Install Fuse And Relay Module In Engine Compartment - AR54.15-P-0005LW

Model 205, 213, 238, 253, 293

Shown on MODEL 205.### 1#

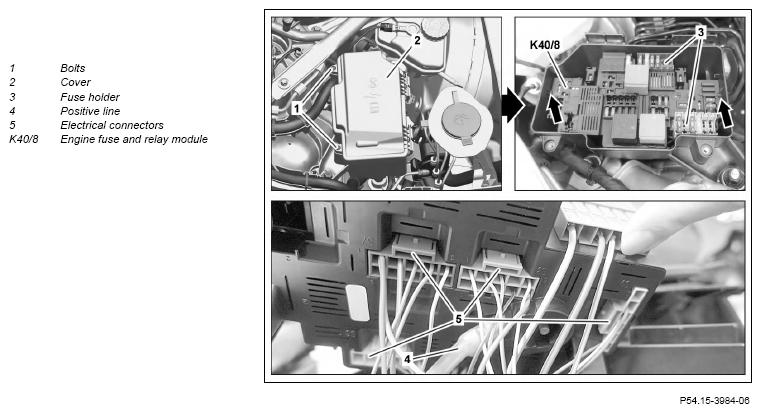

Fig 1: Fuse And Relay Module In Engine Compartment Components Location - Model 205

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove/install
1	Detach ground line of on-board electrical system battery.	Model 293	AR54.10-P-0003EQ
		Model 238	AR54.10-P-0003LWO
		Model 205 Model 213	AR54.10-P-0003LW
2	Remove cover over brake fluid reservoir.
3	Remove screws (1) and take off cap (2).
4	Unlock engine fuse and relay module (K40/8) (arrows) and remove from housing.
5	Unclip fuse holders (3) from engine fuse and relay module (K40/8).	To do this, unlock the side tabs on the fuse holders (3).
6	Remove positive line (4) from engine fuse and relay module (K40/8).	Nut, positive line to engine fuse and relay module	*BA54.15-P-1007-01K
7	Disconnect electrical connectors (5) from engine fuse and relay module (K40/8).
8	Remove engine fuse and relay module (K40/8).
9	Install in the reverse order.

FUSE AND RELAY BOX

Number	Designation			Model 205	Model 213
BA54.15-P-1007-01K	Nut, positive line to engine fuse and relay module	M6	Nm	8	8

FUSE AND RELAY BOX

Number	Designation			Model 238	Model 253
BA54.15-P-1007-01K	Nut, positive line to engine fuse and relay module	M6	Nm	8	8

FUSE AND RELAY BOX

Number	Designation			Model 293
BA54.15-P-1007-01K	Nut, positive line to engine fuse and relay module	M6	Nm	8
