Remove/Install Charger Feed Socket Flap - AR54.10-P-5110LWH
Model 205.013/047/053/054/147/213/247/253

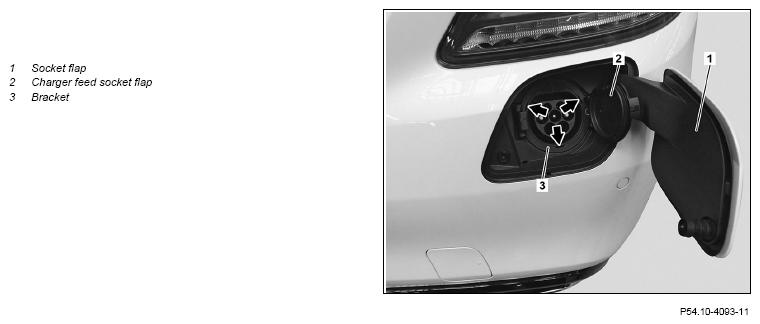

Shown on model 205.047 with 7-pin charger feed-in socket
| Risk of death when working on component parts and systems with U >= 30 V alternating voltage (AC) or U >= 60 V direct voltage (DC) | Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines. | AS00.00-Z-0035-01A | |
| General information on handling vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system | AH00.00-Z-0300-01A | ||
| Notes on battery | AH54.10-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 2.1 | Detach charging cable connector at charger feed-in socket. | If the charging cable connector is connected. | |
| 2.2 | Open socket flap (1). | If no charging cable connector is connected. | |
| 3 | Open charger feed-in socket flap (2). | ||
| 4 | Release catches (arrows) at holder (3) with a small screwdriver and remove holder (3) with charger feed-in socket flap (2). | ||
| 5 | Install in the reverse order |
