Remove/Install Camera Cover Control Unit - AR54.21-P-0023LWR
Model 205.4 with code 218 (Rear view camera)
Model 205.4 with code 501 (360° camera)

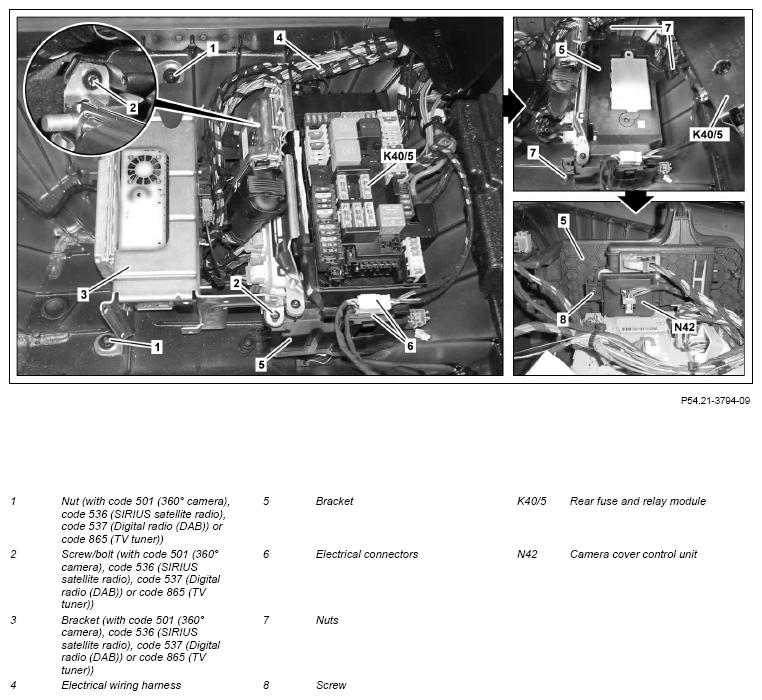

Shown with code 501 (360° camera), code 537 (Digital radio (DAB)), code 865 (TV tuner) and code U77 (BlueTEC (SCR) diesel exhaust treatment)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Perform initial startup of camera cover control unit (N42) | When replacing camera cover control unit (N42). | |
| AD00.00-P-2000-04B | |||
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 3 | Remove rear cargo area floor | ||
| 4 | Remove trunk recess cover | ||
| 5 | Release electrical wiring harness (4) from bracket (5) | ||
| 6 | Unscrew nuts (1), remove screws/bolts (2) and place bracket (3) at the front on the trunk floor with control units mounted | Model 205.4 with code 218 (Rear view camera) with code 536 (SIRIUS satellite radio) Model 205.4 with code 218 (Rear view camera) with code 537 (Digital radio (DAB)) Model 205.4 with code 218 (Rear view camera) with code 865 (TV tuner) Model 205.4 with code 501 (360° camera) |
|
| 7 | Unlock lower electrical connector (6) and remove from bracket (5) along with the upper electrical connector (6) and place to one side | ||
| 8 | Remove rear fuse and relay module (K40/5) from bracket (5) and place to one side with lines connected | ||
| 9 | Unscrew nuts (7) | ||
| 10 | Place bracket (5) to one side with control units mounted | ||
| 11 | Disconnect electrical connector at camera cover control unit (N42) | ||
| 12 | Unscrew screw/bolt (8) and remove camera cover control unit (N42) from bracket (5) | ||
| 13 | Install in the reverse order |
