Remove/Install 360 Degree Camera Control Unit - AR54.65-P-0012LWR
Model 205.4
up to model year 2019
with code 501 (360° camera)

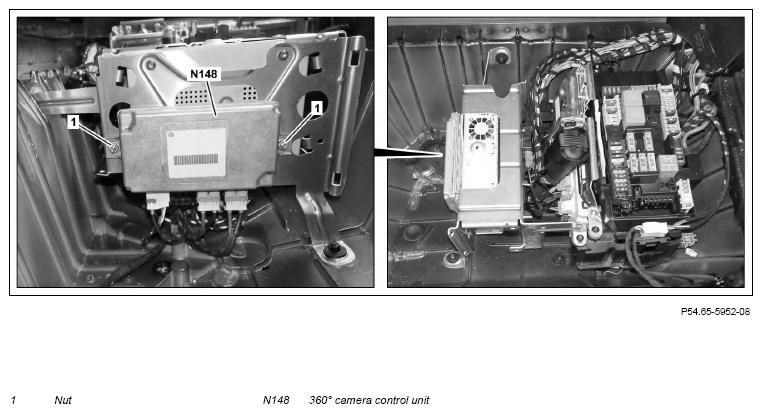

Fig 1: 360 Degree Camera Control Unit Components Location - Model 205.4 Up To Model Year 2019 With Code 501
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 2 | Remove rear load compartment floor. | ||
| 3 | Remove luggage compartment well cover. | ||
| 4 | Unscrew nuts (1). | ||
| 5 | Remove 360° camera control unit (N148) and disconnect its electrical connectors. | ||
| 6 | Install in the reverse order. | ||
| 7 | Commission 360° camera control unit (N148). | When replacing 360° camera control unit (N148). | |
| AD00.00-P-2000-04B | |||
| 8 | Calibrate all the cameras in the 360° camera system using the vehicle diagnosis system. | When replacing 360° camera control unit (N148). | |
| AD00.00-P-2000-04B |
