Remove/Install 360 Degree Camera Control Unit - AR54.65-P-0012LW
Model 205.0/1/2
up to model year 2019
with code 501 (360° camera)

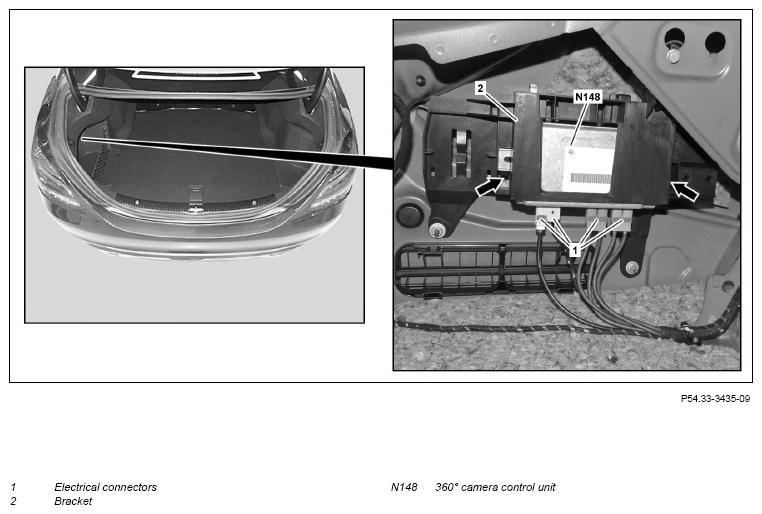

Fig 1: 360 Degree Camera Control Unit Components Location - Model 205.0 Up To Model Year 2019 With Code 501
Shown on model 205.0
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 2.1 | Detach left trunk lining until 360° camera control unit (N148) is accessible. | Model 205.0/1 up to model year 2019 with code 501 (360° camera) | AR68.30-P-4600LW |
| 2.2 | Detach left side load compartment trim in rear area until 360° camera control unit (N148) is accessible. | Model 205.2 up to model year 2019 with code 501 (360° camera) | AR68.30-P-1180LWS |
| 3 | Remove vehicle tool kit holder. | Model 205.047/147/247 up to model year 2019 with code 501 (360° camera) | |
| 4 | Release catch hooks (arrows) and remove 360° camera control unit (N148) downwards out of holder (2). | ||
| 5 | Release and disconnect electrical connectors (1) from 360° camera control unit (N148). | ||
| 6 | Install in the reverse order. | ||
| 7 | Commission 360° camera control unit (N148) using vehicle diagnosis system. | If the 360° camera control unit (N148) was replaced. | |
| AD00.00-P-2000-04B | |||
| 8 | Calibrate all the cameras in the 360° camera system using the vehicle diagnosis system. | If the 360° camera control unit (N148) was replaced. | |
| AD00.00-P-2000-04B |
