Remove/Install 360 Degree Camera Control Unit - AR54.65-P-0012CLW
Model 205.3
up to model year 2019
with code 501 (360° camera)

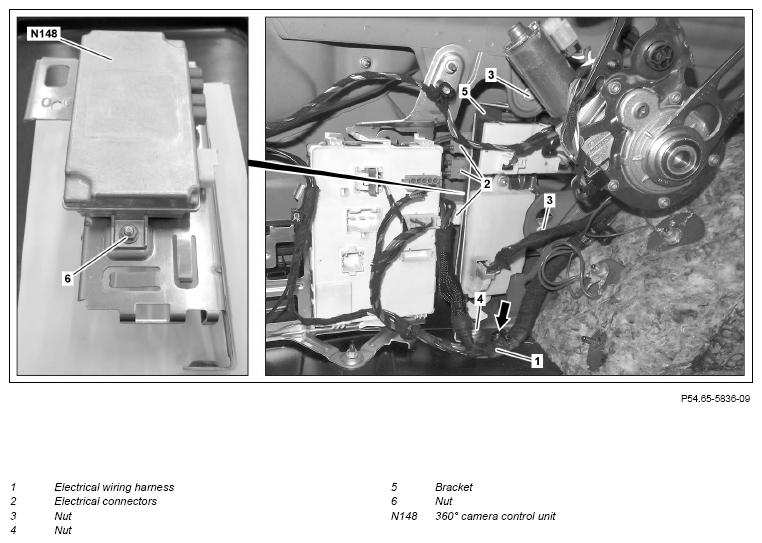

Fig 1: 360 Degree Camera Control Unit Components Location - Model 205.3 Up To Model Year 2019 With Code 501
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 2 | Remove side trim in trunk at left. | AR68.30-P-4800LW | |
| 3 | Unclip electrical wiring harness (1) (arrow). | Fig 2 | |
| 4 | Release and disconnect electrical connectors (2). | ||
| 5 | Unfasten nuts (3). | ||
| 6 | Unscrew nut (4). | ||
| 7 | Remove holder (5) far enough to gain access to 360° camera control unit (N148). | ||
| 8 | Unscrew nut (6) and extend 360° camera control unit (N148). | ||
| 9 | Install in the reverse order. | ||
| 10 | Commission 360° camera control unit (N148) using vehicle diagnosis system. | If the 360° camera control unit (N148) was replaced. | |
| AD00.00-P-2000-04B | |||
| 11 | Calibrate all the cameras in the 360° camera system using the vehicle diagnosis system. | If the 360° camera control unit (N148) was replaced. | |
| AD00.00-P-2000-04B |
