Remove/Install Oil Lines Of Oil Cooling For Automatic Transmission - AR27.55-P-0600LW

Transmission 725.0 in model 205 with engine 274 with code M005 (Vehicles with 4MATIC/all-wheel drive)

Transmission 725.0 in model 205 with engine 651 with code M005 (Vehicles with 4MATIC/all-wheel drive)

Transmission 725.0 in model 253 with engine 274 with code M005 (Vehicles with 4MATIC/all-wheel drive)

Transmission 725.0 in model 253 with engine 642 with code M005 (Vehicles with 4MATIC/all-wheel drive)

Transmission 725.0 in model 253 with engine 651 with code M005 (Vehicles with 4MATIC/all-wheel drive)

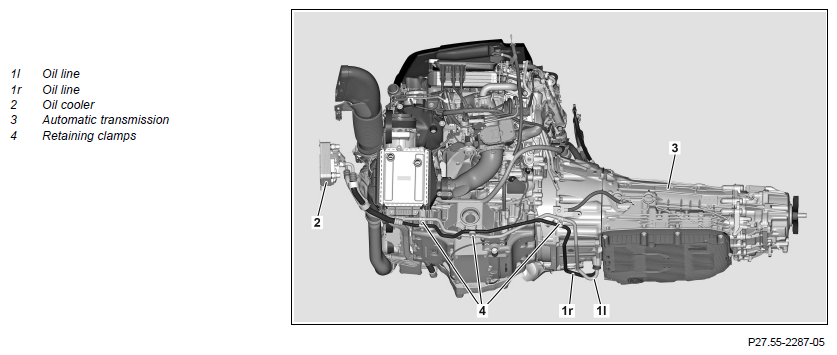

Shown on engine 274 in model 253

Fig 1: Automatic Transmission Oil Cooling Lines Components Location - Transmission 725.0 With Engine 274, With Code M005, In Model 205 (Shown In Model 253)

Courtesy of MERCEDES-BENZ USA

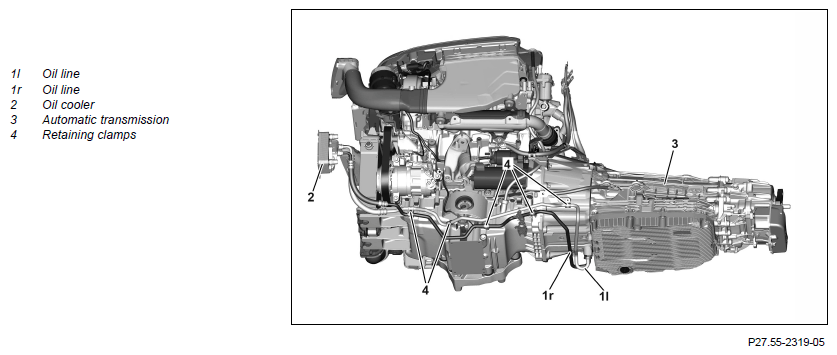

Shown on engine 651 in model 253

Courtesy of MERCEDES-BENZ USA

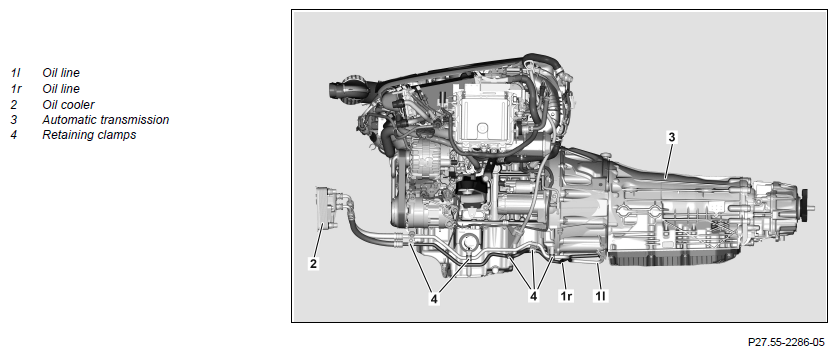

Shown on engine 642 in model 253

Courtesy of MERCEDES-BENZ USA

	Risk of injury  to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil	Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles.	AS00.40-Z-0001-01A
	Risk of injury.  Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Notes on automatic transmission		AH27.19-P-0001-01NKB
	Remove/install
1	Remove engine compartment paneling		AR61.20-P-1105LW
2	Thoroughly clean area around oil lines (1l, 1r) at oil cooler (2)
3	Detach retaining clamps (4) from oil lines (1l, 1r)	Screw, oil cooler oil line to oil pan	*BA27.55-P-1003-01D
		Bolt, clamp to oil line	*BA27.55-P-1004-01D
		Bolt, clamp of oil cooler oil line to bracket	*BA27.55-P-1005-01D
		Screw, oil cooler oil line clamp to oil pan	*BA27.55-P-1006-01D
4	Detach oil lines (1l, 1r) from automatic transmission (3)		AR27.10-P-0501-03LF
		Record plug	Fig 2
5	Seal openings in automatic transmission (3) using suitable stop plugs	Record plug	Fig 2
6	Detach oil lines (1l, 1r) from oil cooler (2)		AR27.10-P-0501-03LF
		Record plug	Fig 2
7	Seal openings in oil cooler (2) using suitable stop plugs	Record plug	Fig 2
8	Remove oil lines (1l, 1r) toward rear	Installation  : Replace seals.
9	Install in the reverse order
10	Check oil level in automatic transmission (3) and correct	Transmission 725.0 (except 725.017/047) in model 205 with engine 274 with code M005 (Vehicles with 4MATIC/all-wheel drive) Transmission 725.0 (except 725.047) in model 253 with engine 274 with code M005 (Vehicles with 4MATIC/all-wheel drive) Transmission 725.0 in model 205 with engine 651 with code M005 (Vehicles with 4MATIC/all-wheel drive) Transmission 725.0 in model 253 with engine 642 with code M005 (Vehicles with 4MATIC/all-wheel drive) Transmission 725.0 in model 253 with engine 651 with code M005 (Vehicles with 4MATIC/all-wheel drive)	AR27.00-P-0270EWN
		Transmission 725.047 in model 205 with engine 274 with code M005 (Vehicles with 4MATIC/all-wheel drive) Transmission 725.047 in model 253 with engine 274 with code M005 (Vehicles with 4MATIC/all-wheel drive)	AR27.00-P-0270EWH
	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
11	Check automatic transmission (3) for proper operation and leak tightness

Fig 2: Identifying Record Plug (129 589 00 91 00)

Courtesy of MERCEDES-BENZ USA
