Remove/Install Torque Converter - AR27.20-P-0500-01EWM

Transmission 725.0

Fig 1: Identifying Assembly Device (725 589 01 31 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Parallel Support (168 589 03 21 00)

Courtesy of MERCEDES-BENZ USA

1. Position transmission vertically.

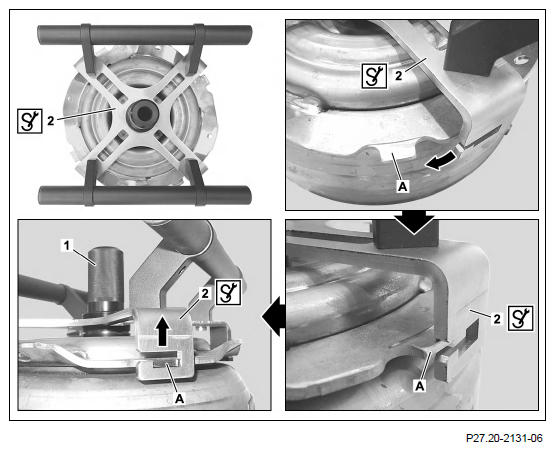

2. Attach assembly device (2) to torque converter.

   To do so, set the height of the assembly device (2) on the knob (1) so that it can be slided over the guide (A) of the torque converter.

3. Turn assembly device (2) clockwise until guide (A) lies against torque converter.
4. Tighten knob (1) until torque converter and assembly device (2) engage (arrow).
5. Remove torque converter without tilting.
6. 1. 6.1 If there are metal shavings in oil pan of transmission. Drain transmission oil from the torque converter through a clean cloth.

      Courtesy of MERCEDES-BENZ USA

      If there are metal shavings in cloth

      ↓

      Replace torque converter.

   2. 6.2 In event of transmission oil that is burnt or contaminated with wear debris.

      Flush out torque converter, oil lines and oil cooler.

   Remove torque converter

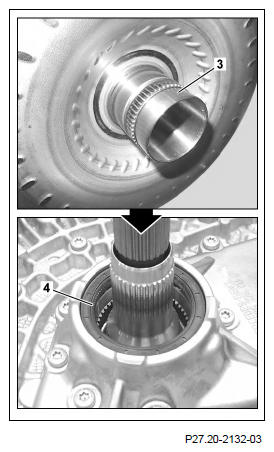

7. Insert torque converter carefully and without tilting.

   Do not use force.

   Otherwise the axial end stop on the torque converter will be damaged.

   Do not touch or damage the radial shaft sealing ring (4).

   Otherwise leaks and damage can occur at the transmission.

   Ensure torque converter is correctly seated.

   Otherwise the transmission and oil pump will be damaged.

   Ensure that the gearing of the drive shaft and of the torque converter align.

   Insert torque converter

   Courtesy of MERCEDES-BENZ USA

   Courtesy of MERCEDES-BENZ USA

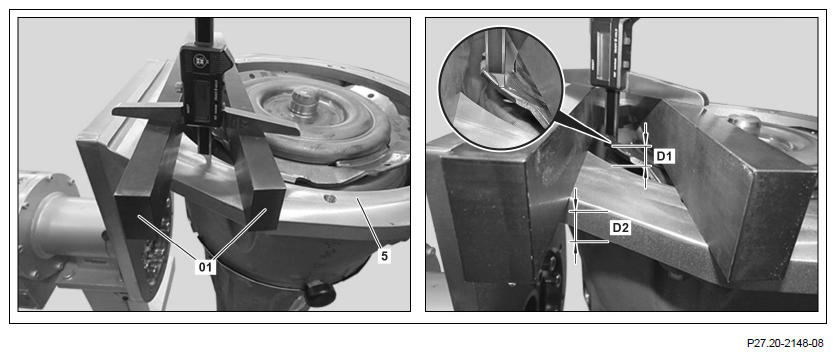

8. Place parallel gauges (01) on support fixture of transmission.
9. Adjust digital vernier caliper from parallel gauge (01) to support fixture of transmission (5) to "0".
10. Add determined dimension (D1) and specified wall thickness of support fixture of transmission (D2 = 16 mm) together Transmission 725.0 with engine 177

    Transmission 725.0 with engine 256

    Transmission 725.0 with engine 264

    Transmission 725.0 with engine 274

    Transmission 725.0 with engine 276

    Transmission 725.0 with engine 278

    Transmission 725.0 with engine 642

    Transmission 725.0 with engine 651

    Transmission 725.0 with engine 654

    Transmission 725.0 with engine 656.

    On the torque converter, the angled threaded connection must be measured on the processing surface.

    For a correctly inserted torque converter, the sum of D1 and D2 (16 mm) corresponds to the installation position of the torque converter; in so doing, do not take into account the sign (+) from value D1.

11. Detach assembly device (2) from torque converter.
