Check Suspension Data, Assign Actual Value To Table - AR40.20-P-0001-01LWP

Model 205.064/264/464 1#

with code 835 (South Korea version)

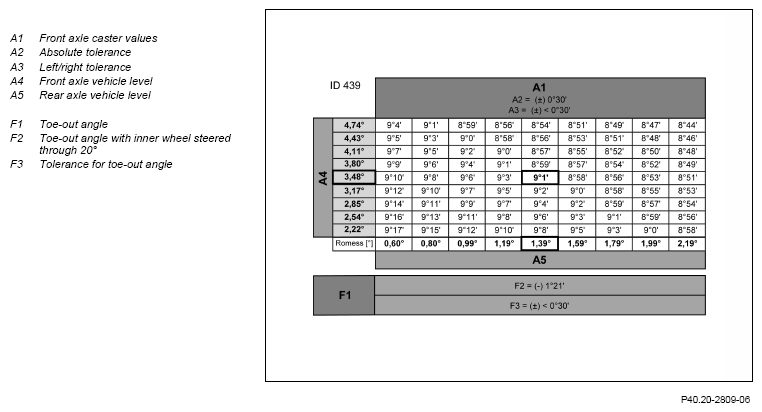

G13021552

Courtesy of MERCEDES-BENZ USA

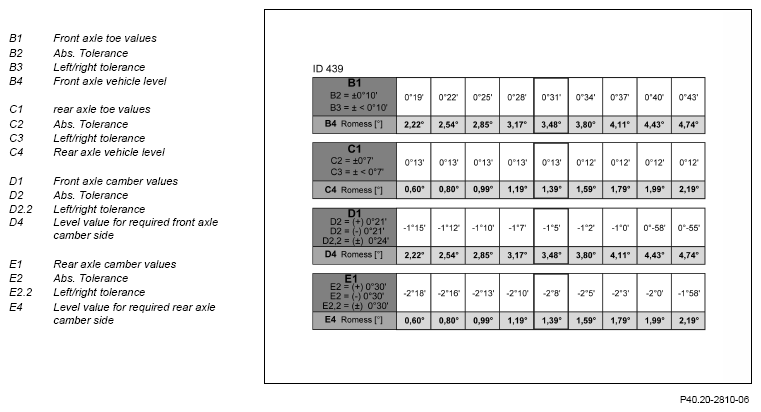

G13021553

Courtesy of MERCEDES-BENZ USA
