Check Suspension Data, Assign Actual Value To Table - AR40.20-P-0001-01LWO
Model 205.064/264/464 1#
except code 835 (South Korea version)

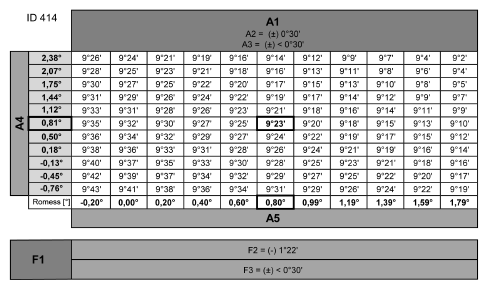

- A1 front axle caster values
A2 absolute tolerance
A3 left/right tolerance
A4 front axle vehicle level
A5 rear axle vehicle level

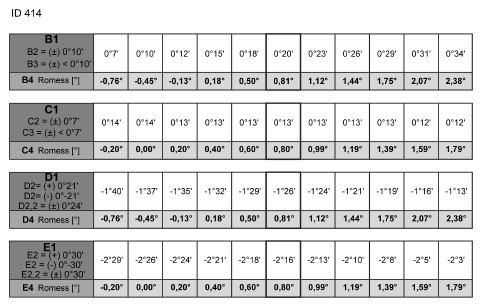

- B1 front axle toe values
B2 absolute tolerance
B3 left/right tolerance
B4 front axle vehicle level
- C1 rear axle toe values
C2 absolute tolerance
C3 left/right tolerance
C4 rear axle vehicle level
- D1 front axle camber values
D2 absolute tolerance
D2.2 left/right tolerance
D4 level value for required front axle camber side
- E1 rear axle camber values
E2 absolute tolerance
E2.2 left/right tolerance
E4 level value for required rear axle camber side
