Check Suspension Data, Assign Actual Value To Table - AR40.20-P-0001-01LWI
Model 205.0 (except 205.064/086/087), 205.2 (except 205.264/286/287), 205.3 (except 205.364/386/387), 205.4 (except 205.464/486/487)
with code 489 (AIRMATIC)
with code M005 (4MATIC)
except code 482 (Off-road comfort suspension)
except code 485 (AGILITY CONTROL suspension with comfort tuning)
except code 486 (Sports suspension)

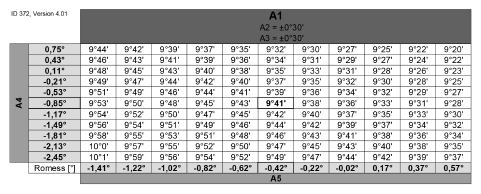

- A1 front axle caster values
A2 absolute tolerance
A3 left/right tolerance
A4 front axle vehicle level
A5 rear axle vehicle level
- B1 front axle toe values
B2 absolute tolerance
B3 left/right tolerance
B4 front axle vehicle level
- C1 rear axle toe values
C2 absolute tolerance
C3 left/right tolerance
C4 rear axle vehicle level

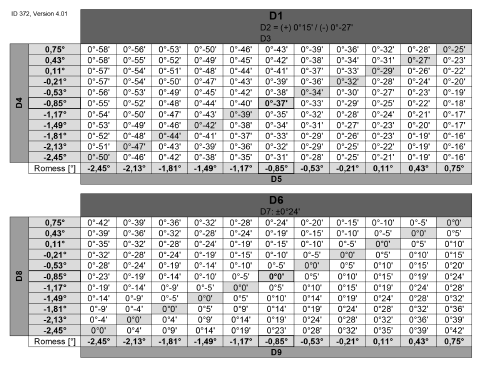

- D1 front axle camber values
D2 absolute tolerance
D3 left/right tolerance, see table D6
D4 level value for required front axle camber side
D5 level on opposite side
D6 front axle camber left/right tolerance
D7 value from camber, left/right nomogram
D8 left front axle
D9 right front axle

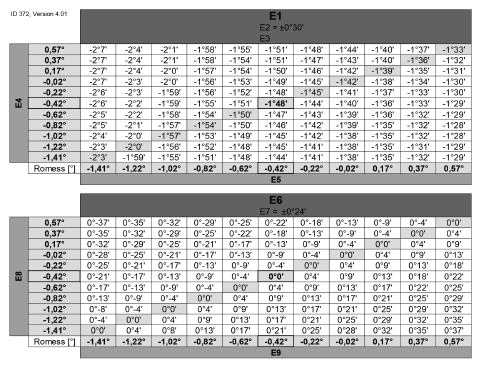

- E1 rear axle camber values
E2 absolute tolerance
E3 left/right tolerance, see table E6
E4 level value for required rear axle camber side
E5 level on opposite side
E6 rear axle camber left/right tolerance
E7 value from camber, left/right nomogram
E8 left rear axle
E9 right rear axle
