Overview Of System Components For Airmatic - GF32.22-P-9994RF
Model 205
with code 483 (ADVANCED AGILITY package)
with code 489 (AIRMATIC)

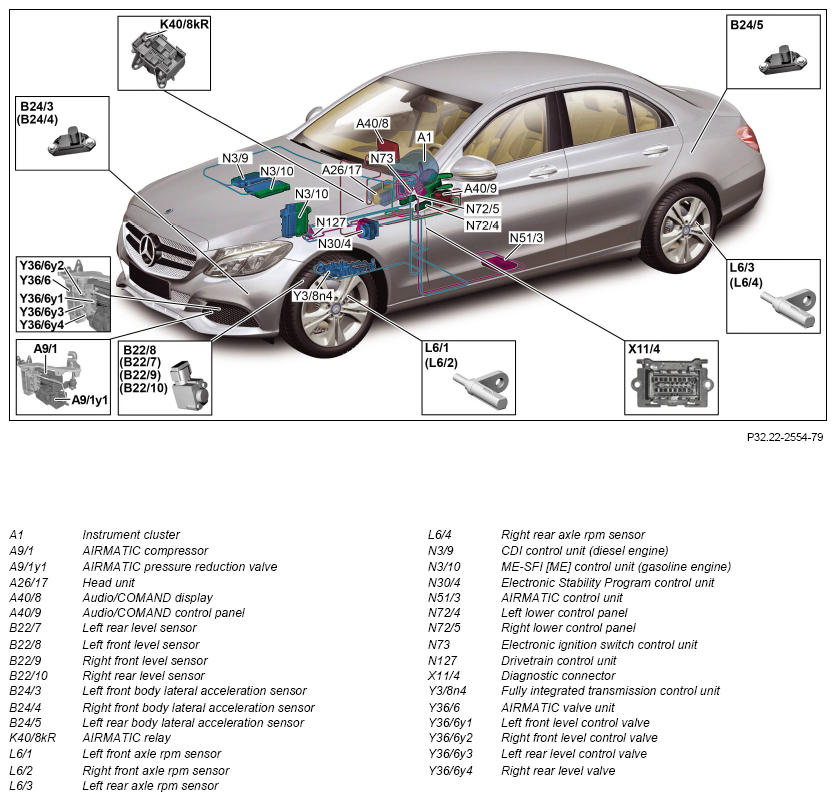

Shown on model 205.0

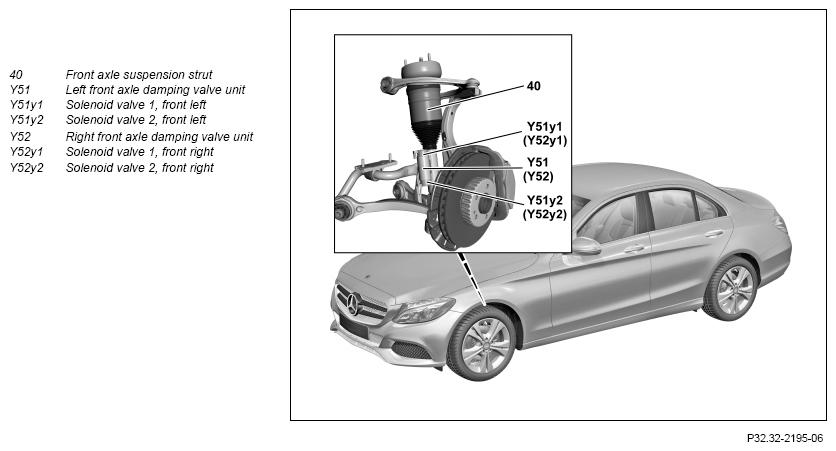

Shown on front axle at left, model 205.0

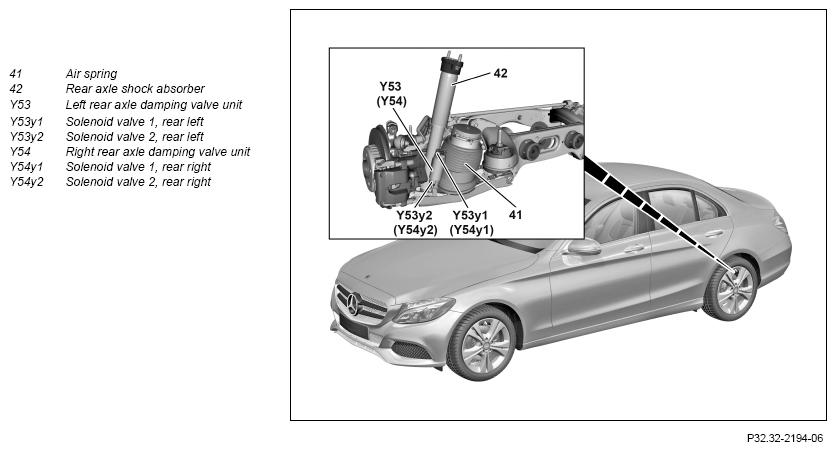

Shown on rear axle at left, model 205.0

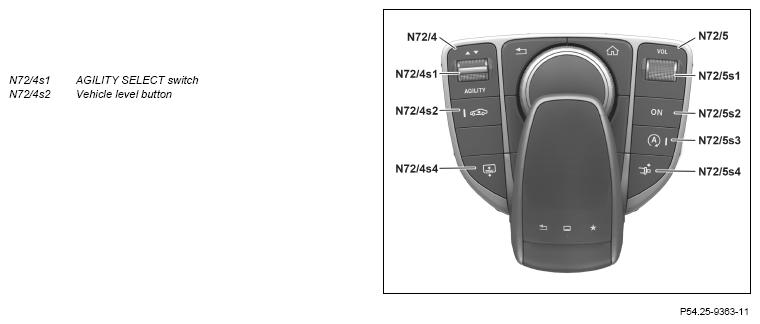

Vehicles with code 318 (Touchpad) and transmission 724, 725 up to model year 2016

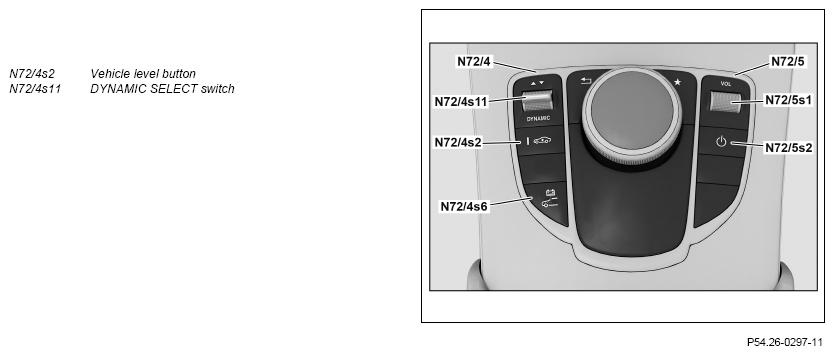

Model 205.012/047/147/212/247 as of model year 2016

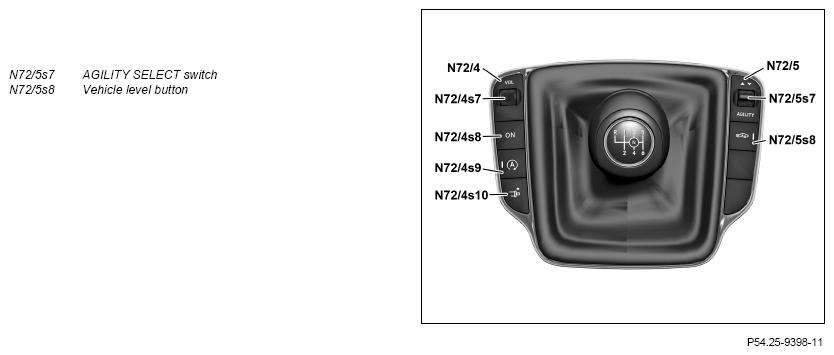

Vehicles with transmission 716 up to model year 2016

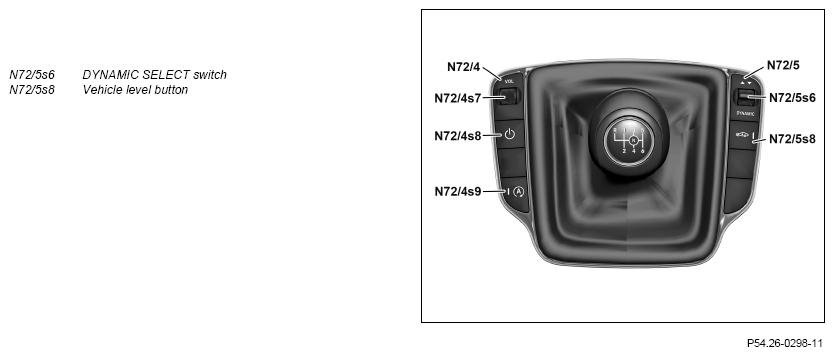

Vehicles with transmission 716 as of model year 2016
| Component description for instrument cluster | A1 | GF54.30-P-6000RF | |
| Head unit, component description | Model 205 up to model year 2019 with code 483 (ADVANCED AGILITY package) with code 489 (AIRMATIC) with code 520 (Audio 20 USB) except code 522 (Audio 20 radio) except code 531 (COMAND APS) A26/17 |
GF82.85-P-3140RF | |
| Model 205 up to model year 2019 with code 483 (ADVANCED AGILITY package) with code 489 (AIRMATIC) with code 522 (Audio 20 radio) except code 520 (Audio 20 USB) except code 531 (COMAND APS) A26/17 |
GF82.85-P-3140RFA | ||
| Model 205 with code 483 (ADVANCED AGILITY package) with code 489 (AIRMATIC) with code 531 (COMAND APS) except code 520 (Audio 20 USB) except code 522 (Audio 20 radio) A26/17 |
GF82.85-P-3140RFB | ||
| Component description for Audio/COMAND display | A40/8 | GF54.30-P-6150RF | |
| Component description for Audio/COMAND control panel | Model 205 as of model year 2019 with code 483 (ADVANCED AGILITY package) with code 489 (AIRMATIC) except code 446 (Touchpad only) Model 205 up to model year 2019 with code 483 (ADVANCED AGILITY package) with code 489 (AIRMATIC) A40/9 |
GF54.21-P-4501RF | |
| Component description for CDI control unit | Model 205 with engine 626 with code 483 (ADVANCED AGILITY package) with code 489 (AIRMATIC) N3/9 |
GF07.16-P-6000ORB | |
| Model 205.012/212 with engine 651.9 with code 483 (ADVANCED AGILITY package) with code 489 (AIRMATIC) N3/9 |
GF07.16-P-6000OLC | ||
| Model 205 (except 205.012/212) with engine 651.9 with code 483 (ADVANCED AGILITY package) with code 489 (AIRMATIC) with code 494 (US version) N3/9 |
GF07.16-P-6000OLD | ||
| Model 205 (except 205.012/212) with engine 651 with code 483 (ADVANCED AGILITY package) with code 489 (AIRMATIC) except code 494 (US version) N3/9 |
GF07.16-P-6000OLE | ||
| Component description for ME-SFI (ME) control unit | Model 205 (except 205.047/053/054/147/247/253) with engine 274.9 with code 483 (ADVANCED AGILITY package) with code 489 (AIRMATIC) N3/10 |
GF07.61-P-6000MRA | |
| Model 205.047/053/054/147/247/253 with engine 274.9 with code 483 (ADVANCED AGILITY package) with code 489 (AIRMATIC) N3/10 |
GF07.61-P-6000MRH | ||
| Model 205 with engine 276.8 with code 483 (ADVANCED AGILITY package) with code 489 (AIRMATIC) N3/10 |
GF07.61-P-6000MMV | ||
| Component description for Electronic Stability Program control unit | Model 205 (except 205.012/013/047/053/054/147/212/213/247/253) with code 483 (ADVANCED AGILITY package) with code 489 (AIRMATIC) N30/4 |
GF42.45-P-5119RF | |
| Model 205.012/047/147/212/247 with code 483 (ADVANCED AGILITY package) with code 489 (AIRMATIC) N30/4 |
GF42.45-P-5119RFH | ||
| AIRMATIC control unit, component description | N51/3 | GF32.22-P-5110RF | |
| Lower control panel, component description | N72/4, N72/5 | GF54.25-P-4270RF | |
| Component description for the electronic ignition lock control unit | Model 205 up to model year 2019 with code 483 (ADVANCED AGILITY package) with code 489 (AIRMATIC) N73 |
GF80.57-P-6001RF | |
| Drivetrain control unit, component description | Model 205 with engine 626 with code 483 (ADVANCED AGILITY package) with code 489 (AIRMATIC) N127 |
GF54.21-P-2141ORB | |
| Model 205 (except 205.012/212) with engine 651.9 with code 483 (ADVANCED AGILITY package) with code 489 (AIRMATIC) N127 |
GF54.21-P-2141OLD | ||
| Model 205.012/212 with engine 651.9 with code 483 (ADVANCED AGILITY package) with code 489 (AIRMATIC) N127 |
GF54.21-P-2141OLC | ||
| Model 205 (except 205.047/053/054/147/247/253) with engine 274.9 with code 483 (ADVANCED AGILITY package) with code 489 (AIRMATIC) N127 |
GF54.21-P-2141MRA | ||
| Model 205.047/053/054/147/247/253 with engine 274.9 with code 483 (ADVANCED AGILITY package) with code 489 (AIRMATIC) N127 |
GF54.21-P-2141MRH | ||
| Model 205 with engine 276.8 with code 483 (ADVANCED AGILITY package) with code 489 (AIRMATIC) N127 |
GF54.21-P-2141RF | ||
| Component description for fully integrated transmission control unit | Model 205 with transmission 722.9 (except 722.930) with code 483 (ADVANCED AGILITY package) with code 489 (AIRMATIC) Y3/8n4 |
GF27.60-P-5165AHE | |
| Model 205 with transmission 724.2 with code 483 (ADVANCED AGILITY package) with code 489 (AIRMATIC) Y3/8n4 |
GF27.60-P-5165RFH | ||
| Table of contents for function description of AIRMATIC | GF32.22-P-0997RF |
