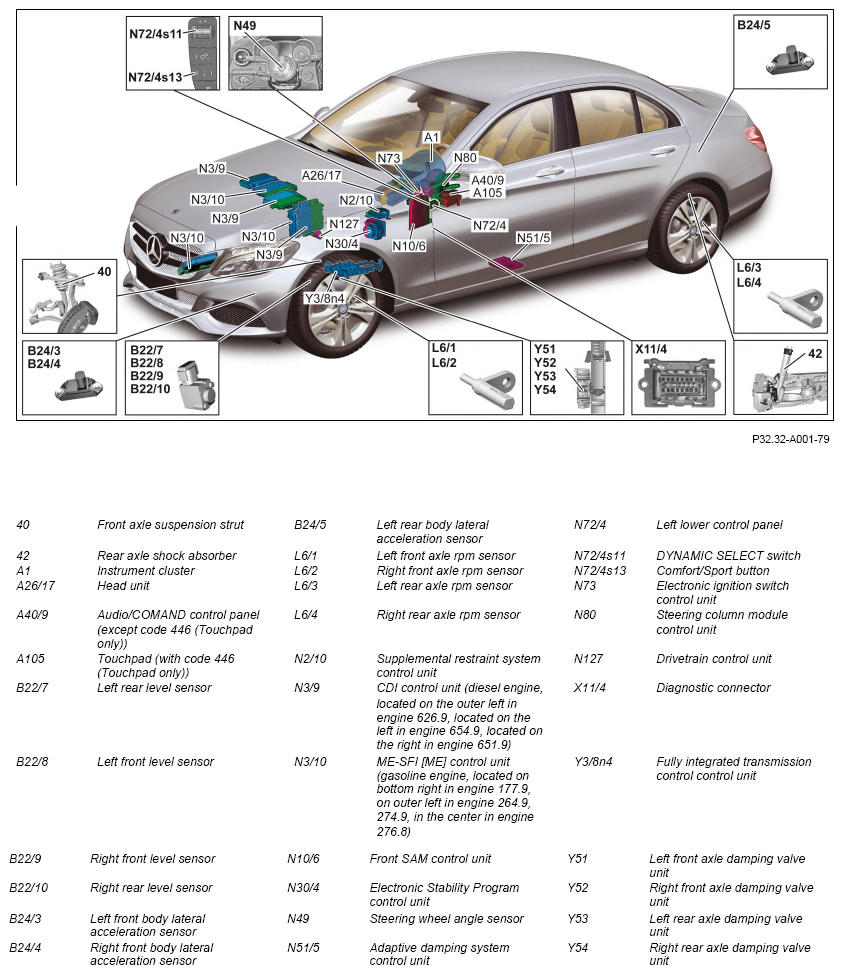

Overview Of System Components For Adaptive Damping System (ADS) Component Description - GF32.32-P-9998RF
Model 205
as of model year 2019
with code 459 (DYNAMIC BODY CONTROL suspension with adjustment damping)
Model 205
with code 485 (AGILITY CONTROL suspension with comfort tuning)
Model 205
with code 488 (Steel/air suspension)
Model 205
with code 677 (AGILITY CONTROL suspension)
Model 205
with code B59 (AGILITY SELECT)
Shown on model 205.0
| Component description for instrument cluster | A1 | GF54.30-P-6000RF | |
| Head unit, component description | Up to model year 2019 with code 520 (Audio 20 USB) A26/17 |
GF82.85-P-3140RF | |
| Up to model year 2019 with code 522 (Audio 20 radio) A26/17 |
GF82.85-P-3140RFA | ||
| With code 506 (Audio 20 NTG 5.5 radio) or code 531 (COMAND APS) A26/17 |
GF82.85-P-3140RFB | ||
| Component description for Audio/COMAND control panel | Up to model year 2019 or as of model year 2019 except code 446 (Touchpad only) A40/9 | GF54.21-P-4501RF | |
| Touchpad, component description | With code 446 (Touchpad only) A105 |
GF54.21-P-4511RF | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080RF | |
| Component description for CDI control unit | Model 205.012/212 with engine 651.9 with code 485 (AGILITY CONTROL suspension with comfort tuning) Model 205.012/212 with engine 651.9 with code 677 (AGILITY CONTROL suspension) Model 205.012/212 with engine 651.9 with code B59 (AGILITY SELECT) N3/9 |
GF07.16-P-6000OLC | |
| Model 205 (except 205.012/212) with engine 651.9 with code 485 (AGILITY CONTROL suspension with comfort tuning) with code 494 (US version) Model 205 (except 205.012/212) with engine 651.9 with code 494 (US version) with code 677 (AGILITY CONTROL suspension) Model 205 (except 205.012/212) with engine 651.9 with code 494 (US version) with code B59 (AGILITY SELECT) N3/9 |
GF07.16-P-6000OLD | ||
| Model 205 (except 205.012/212) with engine 651 with code 485 (AGILITY CONTROL suspension with comfort tuning) except code 494 (US version) Model 205 (except 205.012/212) with engine 651 with code 677 (AGILITY CONTROL suspension) except code 494 (US version) Model 205 (except 205.012/212) with engine 651 with code B59 (AGILITY SELECT) except code 494 (US version) N3/9 |
GF07.16-P-6000OLE | ||
| Model 205 with engine 626 with code 485 (AGILITY CONTROL suspension with comfort tuning) Model 205 with engine 626 with code 677 (AGILITY CONTROL suspension) Model 205 with engine 626 with code B59 (AGILITY SELECT) N3/9 |
GF07.16-P-6000ORB | ||
| Model 205 (except 205.013/213) with engine 654.9 as of model year 2019 with code 459 (DYNAMIC BODY CONTROL suspension with adjustment damping) Model 205 (except 205.013/213) with engine 654.9 with code 485 (AGILITY CONTROL suspension with comfort tuning) Model 205 (except 205.013/213) with engine 654.9 with code 677 (AGILITY CONTROL suspension) Model 205 (except 205.013/213) with engine 654.9 with code B59 (AGILITY SELECT) N3/9 |
GF07.16-P-6000ORF | ||
| Model 205.013/213 with engine 654.9 as of model year 2019 with code 459 (DYNAMIC BODY CONTROL suspension with adjustment damping) Model 205.013/213 with engine 654.9 with code 485 (AGILITY CONTROL suspension with comfort tuning) Model 205.013/213 with engine 654.9 with code 677 (AGILITY CONTROL suspension) Model 205.013/213 with engine 654.9 with code B59 (AGILITY SELECT) N3/9 |
GF07.16-P-6000ORH | ||
| Component description for ME-SFI (ME) control unit | Model 205 with engine 276.8 as of model year 2019 with code 459 (DYNAMIC BODY CONTROL suspension with adjustment damping) Model 205 with engine 276.8 with code 485 (AGILITY CONTROL suspension with comfort tuning) Model 205 with engine 276.8 with code 488 (Steel/air suspension) Model 205 with engine 276.8 with code 677 (AGILITY CONTROL suspension) Model 205 with engine 276.8 with code B59 (AGILITY SELECT) N3/10 |
GF07.61-P-6000MMV | |
| Model 205 with engine 177.9 with code 488 (Steel/air suspension) N3/10 |
GF07.61-P-6000MNA | ||
| Model 205 (except 205.047/053/054/147/247/253) with engine 274.9 as of model year 2019 with code 459 (DYNAMIC BODY CONTROL suspension with adjustment damping) Model 205 (except 205.047/053/054/147/247/253) with engine 274.9 with code 485 (AGILITY CONTROL suspension with comfort tuning) Model 205 (except 205.047/053/054/147/247/253) with engine 274.9 with code 677 (AGILITY CONTROL suspension) Model 205 (except 205.047/053/054/147/247/253) with engine 274.9 with code B59 (AGILITY SELECT) N3/10 |
GF07.61-P-6000MRA | ||
| Model 205.047/053/054/147/247/253 with engine 274.9 as of model year 2019 with code 459 (DYNAMIC BODY CONTROL suspension with adjustment damping) Model 205.047/053/054/147/247/253 with engine 274.9 with code 485 (AGILITY CONTROL suspension with comfort tuning) Model 205.047/053/054/147/247/253 with engine 274.9 with code 677 (AGILITY CONTROL suspension) Model 205.047/053/054/147/247/253 with engine 274.9 with code B59 (AGILITY SELECT) N3/10 |
GF07.61-P-6000MRH | ||
| Model 205 with engine 264.9 as of model year 2019 with code 459 (DYNAMIC BODY CONTROL suspension with adjustment damping) Model 205 with engine 264.9 with code 485 (AGILITY CONTROL suspension with comfort tuning) Model 205 with engine 264.9 with code 677 (AGILITY CONTROL suspension) Model 205 with engine 264.9 with code B59 (AGILITY SELECT) N3/10 |
GF07.61-P-6000MRS | ||
| Component description for front SAM control unit | N10/6 | GF54.21-P-7010RF | |
| Component description for Electronic Stability Program control unit | Model 205 (except 205.012/013/047/053/054/147/212/213/247/253) as of model year 2019 with code 459 (DYNAMIC BODY CONTROL suspension with adjustment damping) Model 205 (except 205.012/013/047/053/054/147/212/213/247/253) with code 485 (AGILITY CONTROL suspension with comfort tuning) Model 205 (except 205.012/013/047/053/054/147/212/213/247/253) with code 488 (Steel/air suspension) Model 205 (except 205.012/013/047/053/054/147/212/213/247/253) with code 677 (AGILITY CONTROL suspension) Model 205 (except 205.012/013/047/053/054/147/212/213/247/253) with code B59 (AGILITY SELECT) N30/4 |
GF42.45-P-5119RF | |
| Model 205.012/013/047/053/054/147/212/213/247/253 as of model year 2019 with code 459 (DYNAMIC BODY CONTROL suspension with adjustment damping) Model 205.012/013/047/053/054/147/212/213/247/253 with code 485 (AGILITY CONTROL suspension with comfort tuning) Model 205.012/013/047/053/054/147/212/213/247/253 with code 677 (AGILITY CONTROL suspension) Model 205.012/013/047/053/054/147/212/213/247/253 with code B59 (AGILITY SELECT) N30/4 |
GF42.45-P-5119RFH | ||
| Component description for adaptive damping system control unit | Model 205 as of model year 2019 with code 459 (DYNAMIC BODY CONTROL suspension with adjustment damping) Model 205 up to model year 2016 with code 492 (AMG performance suspension) with code B59 (AGILITY SELECT) Model 205 with code 485 (AGILITY CONTROL suspension with comfort tuning) Model 205 with code 488 (Steel/air suspension) Model 205 with code 677 (AGILITY CONTROL suspension) N51/5 |
GF32.32-P-1010RF | |
| Lower control panel, component description | N72/4 | GF54.25-P-4270RF | |
| Component description for the electronic ignition lock control unit | Model 205 up to model year 2019 with code 485 (AGILITY CONTROL suspension with comfort tuning) Model 205 up to model year 2019 with code 488 (Steel/air suspension) Model 205 up to model year 2019 with code 677 (AGILITY CONTROL suspension) Model 205 up to model year 2019 with code B59 (AGILITY SELECT) N73 |
GF80.57-P-6001RF | |
| Model 205 as of model year 2019 with code 459 (DYNAMIC BODY CONTROL suspension with adjustment damping) Model 205 as of model year 2019 with code 485 (AGILITY CONTROL suspension with comfort tuning) Model 205 as of model year 2019 with code 488 (Steel/air suspension) Model 205 as of model year 2019 with code 677 (AGILITY CONTROL suspension) Model 205 as of model year 2019 with code B59 (AGILITY SELECT) N73 |
GF80.57-P-6001RFM | ||
| Component description for steering column tube module control unit | Model 205 up to model year 2019 with code 485 (AGILITY CONTROL suspension with comfort tuning) Model 205 up to model year 2019 with code 488 (Steel/air suspension) Model 205 up to model year 2019 with code 677 (AGILITY CONTROL suspension) Model 205 up to model year 2019 with code B59 (AGILITY SELECT) N80 |
GF54.21-P-6051RF | |
| Model 205 as of model year 2019 with code 459 (DYNAMIC BODY CONTROL suspension with adjustment damping) Model 205 as of model year 2019 with code 485 (AGILITY CONTROL suspension with comfort tuning) Model 205 as of model year 2019 with code 488 (Steel/air suspension) Model 205 as of model year 2019 with code 677 (AGILITY CONTROL suspension) Model 205 as of model year 2019 with code B59 (AGILITY SELECT) N80 |
GF54.21-P-6051RFM | ||
| Drivetrain control unit, component description | Model 205 with engine 177.9 with code 488 (Steel/air suspension) N127 |
GF54.21-P-2141MNA | |
| Model 205 (except 205.047/053/054/147/247/253) with engine 274.9 as of model year 2019 with code 459 (DYNAMIC BODY CONTROL suspension with adjustment damping) Model 205 (except 205.047/053/054/147/247/253) with engine 274.9 with code 485 (AGILITY CONTROL suspension with comfort tuning) Model 205 (except 205.047/053/054/147/247/253) with engine 274.9 with code 677 (AGILITY CONTROL suspension) Model 205 (except 205.047/053/054/147/247/253) with engine 274.9 with code B59 (AGILITY SELECT) N127 |
GF54.21-P-2141MRA | ||
| Model 205.047/053/054/147/247/253 with engine 274.9 as of model year 2019 with code 459 (DYNAMIC BODY CONTROL suspension with adjustment damping) Model 205.047/053/054/147/247/253 with engine 274.9 with code 485 (AGILITY CONTROL suspension with comfort tuning) Model 205.047/053/054/147/247/253 with engine 274.9 with code 677 (AGILITY CONTROL suspension) Model 205.047/053/054/147/247/253 with engine 274.9 with code B59 (AGILITY SELECT) N127 |
GF54.21-P-2141MRH | ||
| Model 205 with engine 264.9 as of model year 2019 with code 459 (DYNAMIC BODY CONTROL suspension with adjustment damping) Model 205 with engine 264.9 with code 485 (AGILITY CONTROL suspension with comfort tuning) Model 205 with engine 264.9 with code 677 (AGILITY CONTROL suspension) Model 205 with engine 264.9 with code B59 (AGILITY SELECT) N127 |
GF54.21-P-2141MRS | ||
| Model 205.012/212 with engine 651.9 with code 485 (AGILITY CONTROL suspension with comfort tuning) Model 205.012/212 with engine 651.9 with code 677 (AGILITY CONTROL suspension) Model 205.012/212 with engine 651.9 with code B59 (AGILITY SELECT) N127 |
GF54.21-P-2141OLC | ||
| Model 205 (except 205.012/212) with engine 651.9 with code 485 (AGILITY CONTROL suspension with comfort tuning) Model 205 (except 205.012/212) with engine 651.9 with code 677 (AGILITY CONTROL suspension) Model 205 (except 205.012/212) with engine 651.9 with code B59 (AGILITY SELECT) N127 |
GF54.21-P-2141OLD | ||
| Model 205 with engine 626 with code 485 (AGILITY CONTROL suspension with comfort tuning) Model 205 with engine 626 with code 677 (AGILITY CONTROL suspension) Model 205 with engine 626 with code B59 (AGILITY SELECT) N127 |
GF54.21-P-2141ORB | ||
| Model 205 with engine 654.9 as of model year 2019 with code 459 (DYNAMIC BODY CONTROL suspension with adjustment damping) Model 205 with engine 654.9 with code 485 (AGILITY CONTROL suspension with comfort tuning) Model 205 with engine 654.9 with code 677 (AGILITY CONTROL suspension) Model 205 with engine 654.9 with code B59 (AGILITY SELECT) N127 |
GF54.21-P-2141ORH | ||
| Model 205 with engine 276.8 as of model year 2019 with code 459 (DYNAMIC BODY CONTROL suspension with adjustment damping) Model 205 with engine 276.8 with code 485 (AGILITY CONTROL suspension with comfort tuning) Model 205 with engine 276.8 with code 488 (Steel/air suspension) Model 205 with engine 276.8 with code 677 (AGILITY CONTROL suspension) Model 205 with engine 276.8 with code B59 (AGILITY SELECT) N127 |
GF54.21-P-2141RF | ||
| Component description for fully integrated transmission control unit | Model 205 with transmission 722.9 (except 722.930) with code 485 (AGILITY CONTROL suspension with comfort tuning) Model 205 with transmission 722.9 (except 722.930) with code 677 (AGILITY CONTROL suspension) Model 205 with transmission 722.9 (except 722.930) with code B59 (AGILITY SELECT) Y38n4 |
GF27.60-P-5165AHE | |
| Model 205 with transmission 725.017 as of model year 2019 with code 459 (DYNAMIC BODY CONTROL suspension with adjustment damping) Model 205 with transmission 725.017 with code 485 (AGILITY CONTROL suspension with comfort tuning) Model 205 with transmission 725.017 with code 677 (AGILITY CONTROL suspension) Model 205 with transmission 725.017 with code B59 (AGILITY SELECT) Y38n4 |
GF27.60-P-5165AHH | ||
| Model 205 with transmission 722.930 with code 488 (Steel/air suspension) Y38n4 |
GF27.60-P-5165AIA | ||
| Model 205 with transmission 725.0 (except 725.017) as of model year 2019 with code 459 (DYNAMIC BODY CONTROL suspension with adjustment damping) Model 205 with transmission 725.0 (except 725.017) with code 485 (AGILITY CONTROL suspension with comfort tuning) Model 205 with transmission 725.0 (except 725.017) with code 677 (AGILITY CONTROL suspension) Model 205 with transmission 725.0 (except 725.017) with code B59 (AGILITY SELECT) Y38n4 |
GF27.60-P-5165ANG | ||
| Model 205 with transmission 724.2 with code 485 (AGILITY CONTROL suspension with comfort tuning) Model 205 with transmission 724.2 with code 677 (AGILITY CONTROL suspension) Model 205 with transmission 724.2 with code B59 (AGILITY SELECT) Y38n4 |
GF27.60-P-5165RFH | ||
| Table of contents for function description of adaptive damping system (ADS) | Model 205 as of model year 2019 with code 459 (DYNAMIC BODY CONTROL suspension with adjustment damping) Model 205 up to model year 2016 with code 492 (AMG performance suspension) with code B59 (AGILITY SELECT) Model 205 with code 485 (AGILITY CONTROL suspension with comfort tuning) Model 205 with code 488 (Steel/air suspension) Model 205 with code 677 (AGILITY CONTROL suspension) |
GF32.32-P-0998RF |
