Remove/Install Wheel Bearing - AR33.20-P-0302LW

Model 205

Model 213

Model 238

Model 253

Model 293

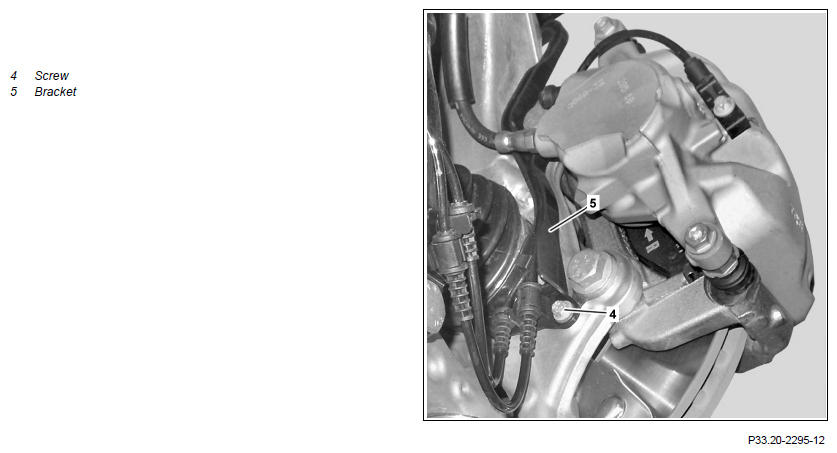

Shown on model 205 with code M005 (4 MATIC)

Courtesy of MERCEDES-BENZ USA

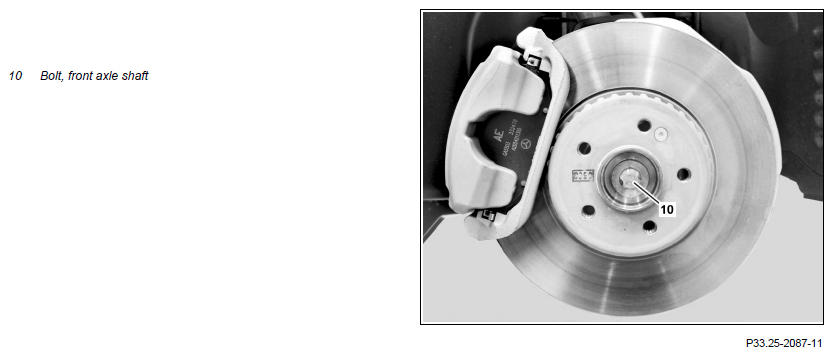

Shown on model 205 with code M005 (4 MATIC)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

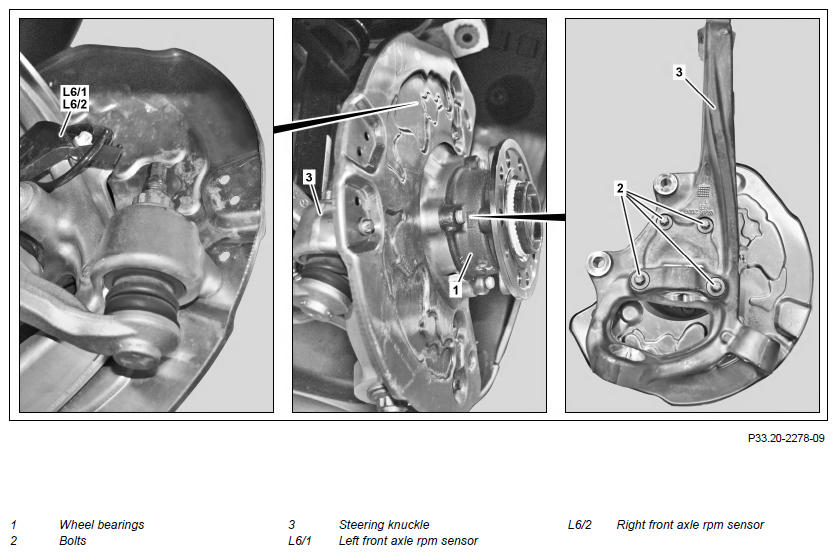

Shown on model 205 at left, except code M005 (4 MATIC)

	Notes on threaded connections fastened using a tightening angle-based tightening process		AH00.00-P-0020-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove/install
1	Remove hub cap from corresponding front wheel.	Model 205, 213, 253 with code M005 (4 MATIC) Model 293 If the front wheel has to be removed for this purpose, ↓ remove corresponding front wheel, then mount again.	AR40.10-P-1102A
2	Unfasten front axle shaft bolt (10) to wheel hub.	Model 205, 213, 253 with code M005 (4 MATIC) Model 293 Screw/bolt, front axle shaft to wheel hub	*BA33.30-P-1001-02H
3	Remove corresponding front wheel.		AR40.10-P-1102A
4	Unscrew front axle shaft bolt (10) from wheel hub.	Model 205, 213, 253 with code M005 (4 MATIC) Model 293 Replace front axle shaft bolt (10). Tighten front axle shaft bolt (10) lightly by hand.
5	Remove brake disk.	Model 293	AR42.10-P-0230EQ
		Model 205, 213, 253	AR42.10-P-0220EWE
		Model 238	AR42.10-P-0220LWO
6.1	Detach left front axle RPM sensor (L6/1) or right front axle RPM sensor (L6/2) and place to one side with bracket and line.	Model 205, 213, 238 except code M005 (4 MATIC)
		Model 238 except code M005 (4 MATIC)	AR42.30-P-0713LWO
		Model 205, 213 except code M005 (4 MATIC)	AR42.30-P-0712LW
6.2	Remove bolt (4) and push holder (5) to one side.	Model 205, 213, 238 with code M005 (4 MATIC) Model 253 Model 293
7	Unscrew bolts (2) and remove wheel bearing (1) from steering knuckle (3).	Bolt, wheel bearing to steering knuckle	*BA33.20-P-1007-01U
	Clean
8	Clean cutout for water drain in lower area of wheel bearing mounting.
9	Install in the reverse order.
