Remove/Install Front Stabilizer Bar Link Rod - AR32.35-P-3328LW
Model 205
except code M005 (4MATIC)
Model 213
except code M005 (4MATIC)
Model 238
except code M005 (4MATIC)
Shown on right side of vehicle
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Notes on handling, transport and storage of composite brake disks | AH42.10-P-9406-12LF | ||
| Notes on Airmatic | Model 205 with code 489 (AIRMATIC) except code M005 (4MATIC) Model 213 with code 489 (AIRMATIC) except code M005 (4MATIC) |
AH32.22-P-1000-02LW | |
| Notes on AIR BODY CONTROL | Model 238 with code 489 (AIR BODY CONTROL) except code M005 (4MATIC) |
AH32.22-P-1000-03LWO | |
| Notes on repair work on suspension components | AH00.00-P-0100-01A | ||
| Remove/install | |||
| 1 | Vent pressure in Airmatic, or AIR BODY CONTROL system with vehicle diagnosis system | ||
| Model 205 with code 489 (AIRMATIC) except code M005 (4MATIC) Model 213 with code 489 (AIRMATIC) except code M005 (4MATIC) |
AD00.00-P-2000-04B | ||
| Model 238 with code 489 (AIR BODY CONTROL) except code M005 (4MATIC) |
AD00.00-P-2000-06LWO | ||
| 2 | Remove front wheel | AR40.10-P-1102A | |
| 3 | Remove suspension strut from spring control arm | Model 205 with code 489 (AIRMATIC) except code M005 (4MATIC) Model 213 with code 489 (AIRMATIC) except code M005 (4MATIC) |
AR32.25-P-1017LWL |
| Model 238 with code 489 (AIR BODY CONTROL) except code M005 (4MATIC) Carefully push suspension strut outwards. Otherwise the boot on the suspension strut joint may be damaged. |
AR32.25-P-1017LWQ | ||
| 4 | Unscrew nut (1) | *BA32.20-P-1003-02R | |
| 5 | Unscrew nut (2) | Counterhold torsion bar linkage (3) on elastomer bearing. Otherwise the elastomer bearing may be damaged. |
*BA32.20-P-1002-02R |

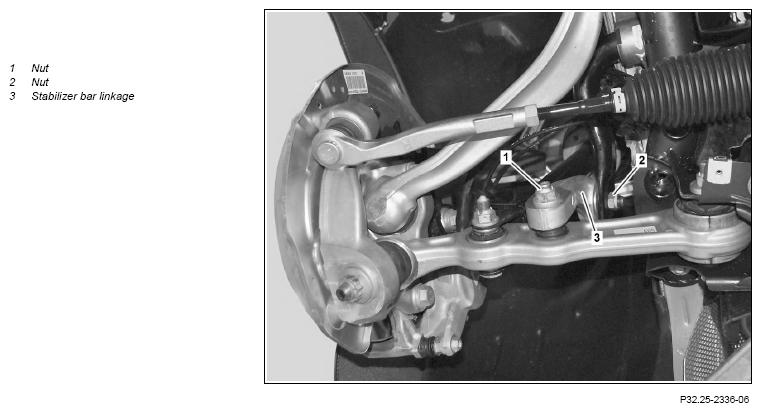

| Fig 1 | |||
| 6 | Turn steering and remove torsion bar linkage (3) | When removing right torsion bar linkage (3), turn steering to right. |
|
| Check | |||
| 7 | Check elastomer bearing of torsion bar linkage (3) for condition and damage | If a problem arises ↓ Replace torsion bar linkage (3). |
|
| 8 | Check condition of torsion bar pivot bushing on spring link | If a problem arises ↓ Replace spring link. |
|
| Model 205 except code M005 (4MATIC) Model 213 except code M005 (4MATIC) |
AR33.15-P-0170LW | ||
| Model 238 except code M005 (4MATIC) |
AR33.15-P-0170LWO | ||
| 9 | Install in the reverse order |
FRONT AXLE TORSION BAR
| Number | Designation | Model 205 except code M005 (4MATIC) | Model 213 except code M005 (4MATIC) | |
|---|---|---|---|---|
| BA32.20-P-1002-02R | Nut, torsion bar linkage to torsion bar | Nm | 130 | 130 |
FRONT AXLE TORSION BAR
| Number | Designation | Model 238 except code M005 (4MATIC) | |
|---|---|---|---|
| BA32.20-P-1002-02R | Nut, torsion bar linkage to torsion bar | Nm | 130 |
FRONT AXLE TORSION BAR
| Number | Designation | Model 205 except code M005 (4MATIC) | Model 213 except code M005 (4MATIC) | |
|---|---|---|---|---|
| BA32.20-P-1003-02R | Nut, torsion bar linkage to spring control arm | Nm | 85 | 85 |
FRONT AXLE TORSION BAR
| Number | Designation | Model 238 except code M005 (4MATIC) | |
|---|---|---|---|
| BA32.20-P-1003-02R | Nut, torsion bar linkage to spring control arm | Nm | 85 |
