Lift/Jack Up Vehicle - AR00.60-P-1000LW
Model 205
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of accident caused by vehicle starting off on its own when jacked up. Risk of injury caused by rotating parts when working on running engine or Drivetrain. | Ensure that jack stands are in a safe condition. An authorized person must occupy the driver's seat. Wear closed and close-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0008-01A | |
| Lift/lower vehicle | |||
| 1 | Clip adapter (01) into vehicle lift support points (1) at longitudinal members | When removing underfloor paneling |

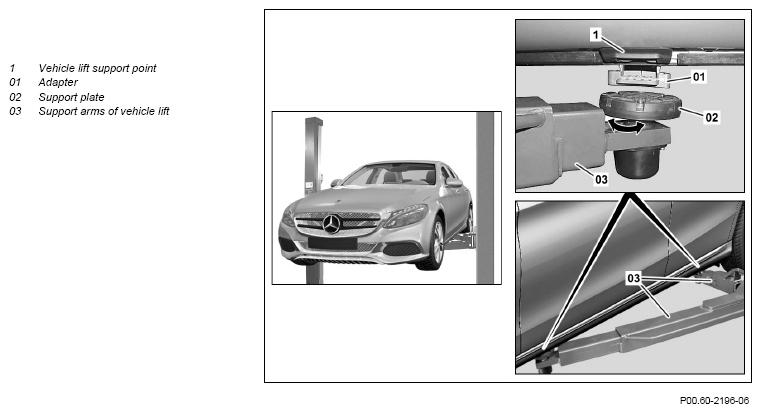

Fig 1 |
| 2 | Adjust support plates (02) of support arms of vehicle lift (03) to height of vehicle | ||
| 000 588 00 80 00 Vehicle lift | WS00.00-P-0040B | ||
| 3 | Raise vehicle with vehicle lift | ||
| 4 | Secure the vehicle against tilting and toppling | Before removal of major assemblies (e.g. engine, transmission, axles) or when performing work during which the vehicle can lose its hold on the support plates (02) of the vehicle lift. | AR00.60-P-0100CW |
| 5 | Lower vehicle in reverse order | ||
| Jack up/lower vehicle | |||
| 6 | Lift vehicle with pit lift or floor jack | ||

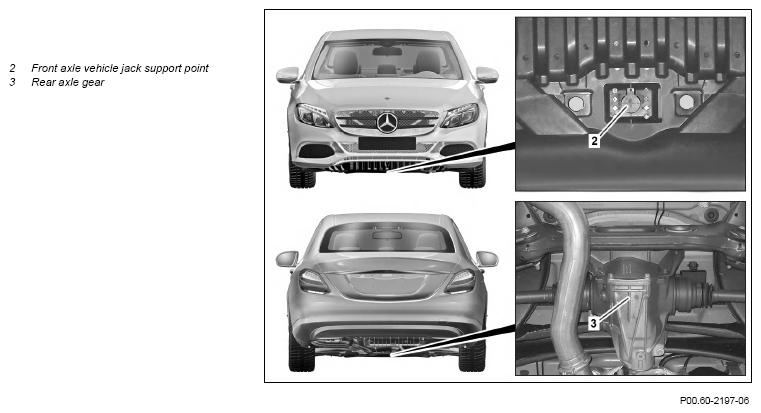

| 000 588 05 80 00 Pit lift | Only position post of pit lift or floor jack at front axle vehicle jack support point (2) or at rear axle differential (3). Otherwise damage to axles, major assemblies or the body may occur. |
WS00.00-P-0248B | |
| 7 | Secure the vehicle against tilting and toppling | ||
| 8 | Lower vehicle in reverse order |
