Disconnecting And Connecting Harness At Starter - AR15.30-P-7100-03MMV
Engine 276.8 in model 205
Engine 276.8 in model 253
STARTER
| Number | Designation | Engine 276 | |
|---|---|---|---|
| BA15.30-P-1001-01J | Nut, connection for terminal designation 30 | Nm | 15 |
STARTER
| Number | Designation | Engine 276 | |
|---|---|---|---|
| BA15.30-P-1002-01J | Nut, connection for terminal designation 50 | Nm | 6 |

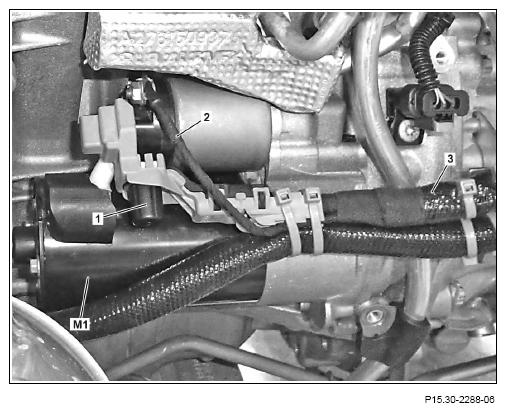

- Remove contact protection (1).
- Remove electrical line for terminal 50 (2) on starter (M1) and set aside
.
- Remove electrical line for terminal 30 (3) on starter (M1) and set aside
- Connect in reverse order.
