Disconnecting And Connecting Harness At Starter - AR15.30-P-7100-03LWA
Engine 274.9 in model 205
Engine 274.9 in model 253
STARTER
| Number | Designation | Engine 274 | |
|---|---|---|---|
| BA15.30-P-1001-01J | Nut, connection for terminal designation 30 | Nm | 15 |
STARTER
| Number | Designation | Engine 274 | |
|---|---|---|---|
| BA15.30-P-1002-01J | Nut, connection for terminal designation 50 | Nm | 6 |

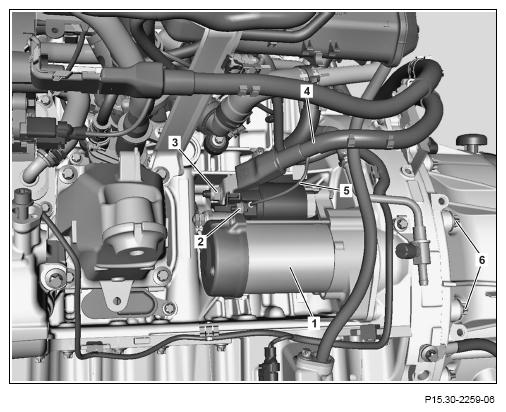

- Detach protection against accidental contact for electrical line for circuit 30 (4).
- Unscrew nut (2)
and nut (3)
- Detach electrical line for circuit 30 (4) and electrical line for circuit 50 (5) on starter (1).
- Connect in reverse order.
