Remove/Install Right Charge Air Pipe - AR09.41-P-1326MMV
Engine 276.8 in model 205
Engine 276.8 in model 253
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Remove | |||
| 1 | Remove upper engine cover | ||
| 2 | Remove right engine air intake duct upstream of right air filter | ||
| 3 | Remove screw/bolt (3) | ||
| 4 | Unscrew screw/bolt (4) and remove bracket (6) | ||
| 5 | Loosen clamp (2) | ||
| 6 | Detach right charge air pipe (1) from right ATL and from boot (5) and remove | ||

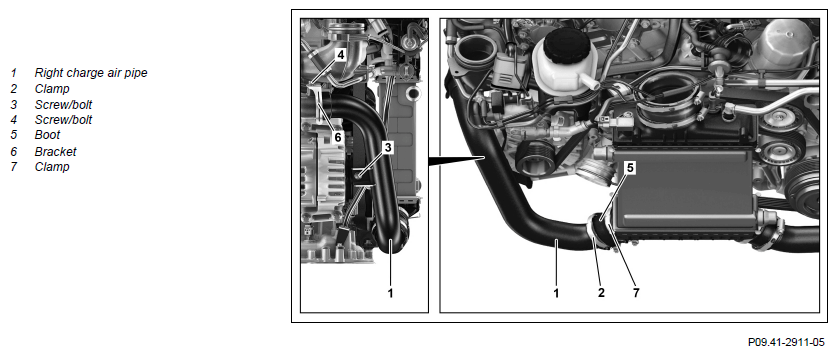

| 7 | Seal openings on charge air cooler and right ATL with protective cover | Fig 1 | |
| 8 | Check boot (5) and clamps (2, 7) for damage | If damage is present ↓ Replace boot (5) together with clamps (2, 7). |
|
| Install | |||
| 9 | Remove protective covers from openings of the right ATL and the charge air cooler | Fig 1 | |
| 10 | Mount right charge air pipe (1) on right ATL and on boot (5) | ||
| 11 | Tighten clamp (2) | ||
| 12 | Position bracket (6) and tighten nut (4) | *BA09.41-P-1006-01R | |
| 13 | Tighten screw/bolt (3) | *BA00.10-P-1002-04A | |
| 14 | Install right engine air intake duct upstream of right air filter | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 15 | Perform an engine test run, checking the engine for function and leaktightness in the area around right charge air pipe (1) | ||
| 16 | Install upper engine cover |
METRIC SCREWS/BOLTS AND NUTS AS PER MBN 10 105, 10 143
| Number | Designation | 8.8 | 10.9 | |
|---|---|---|---|---|
| BA00.10-P-1002-04A | M6 X 1 | Nm | 9 | 13 |
CHARGE AIR PIPE/CHARGE AIR COOLING
| Number | Designation | Engine 276.8 | |
|---|---|---|---|
| BA09.41-P-1006-01R | Screw/bolt, charge air pipe to turbocharger | Nm | 9 |
