Remove/Install Oil Feed Line For Right Turbocharger - AR09.40-P-0003MMV
Engine 276.8 in model 205
Engine 276.8 in model 253
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Risk of injury to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil | Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers. |
AS18.00-Z-0001-01A | |
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Remove/install | |||
| 1 | Remove right air filter housing | AR09.10-P-1150MMV | |
| 2 | Remove soundproofing of right rail | ||
| 3 | Remove screw/bolts (1, 3) | *BA09.40-P-1004-01W | |
| *BA09.40-P-1005-01W | |||

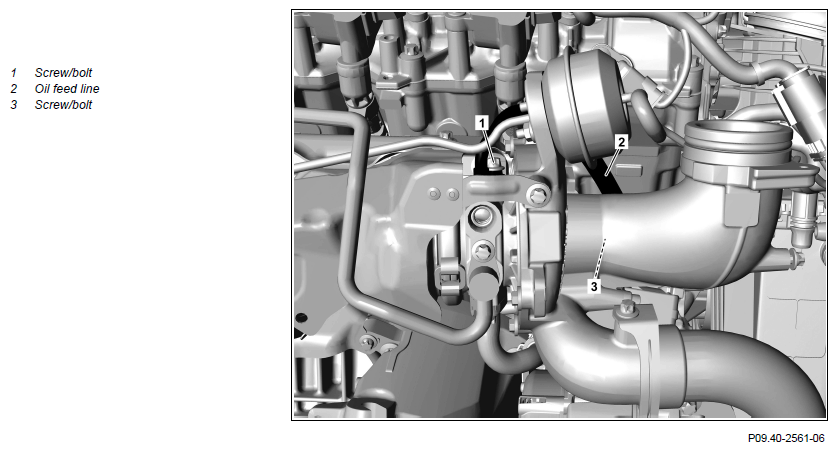

| 4 | Remove oil feed line (2) upwards and seal openings with suitable stop plugs | Fig 1 | |
| 5 | Install in the reverse order | ||
| 6 |
Check engine oil level and correct if necessary | AP18.00-P-1811MP | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 7 | Carry out an engine test run, checking the engine for proper operation and leaktightness | ||
TURBOCHARGER
| Number | Designation | Engine 276.8 | |
|---|---|---|---|
| BA09.40-P-1004-01W | Bolt, oil feed line to turbocharger | Nm | 9 |
TURBOCHARGER
| Number | Designation | Engine 276.8 | |
|---|---|---|---|
| BA09.40-P-1005-01W | Bolt, oil feed line to cylinder head | Nm | 14 |
