Install Longitudinal Member Outer Shell On Entrance - Ar63.30-P-1102-03CLW

Model 205.3

The following steps are shown on the left side of the vehicle and must be performed analogously on the right side in the event of damage.

When using Celette straightening system, also use anchoring set 9212.013.

Install adjustable fastening brackets with following dimensions:

• Front:
  • x = 95 mm
  • Y= 44 mm
  • z = 70 mm
• Rear:
  • x = 50 mm
  • Y= 44 mm
  • z = 70 mm

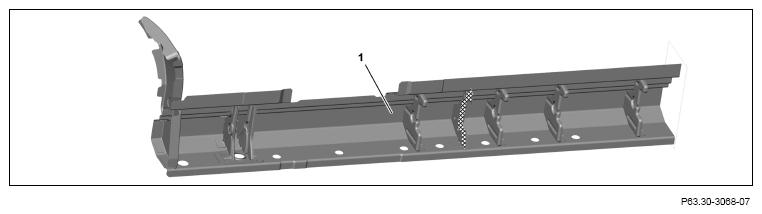

1. Install longitudinal member outer shell (1) with straightening tool, fit and fix in place.

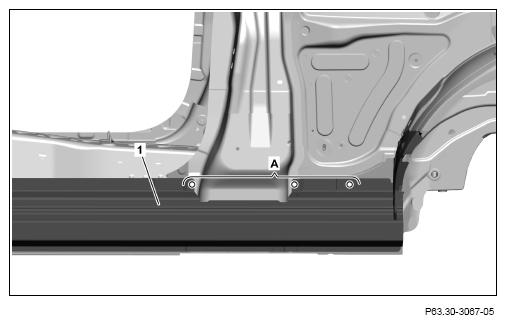

2. Drill Ø 6.7 mm rivet holes outer longitudinal member shell (1) (area A).
3. Remove straightening tool and longitudinal member outer shell (1).
4. Deburr rivet holes on longitudinal member outer shell (1) and body on both sides.
5. Remove drilling chips.

   Courtesy of MERCEDES-BENZ USA

   Courtesy of MERCEDES-BENZ USA

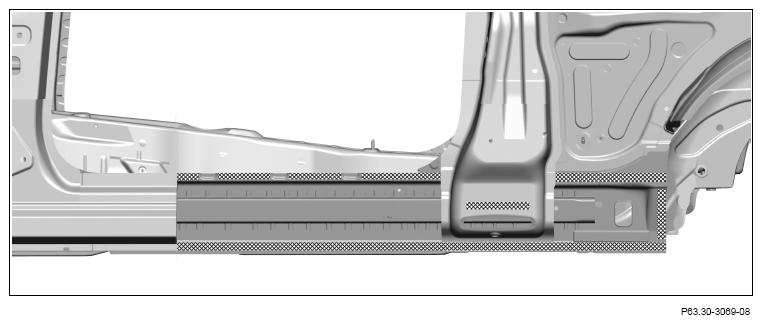

6. Apply sealant to foam part in longitudinal member outer shell (1) in crosshatched area.

   Courtesy of MERCEDES-BENZ USA

7. Apply 2-component adhesive to body in crosshatched areas.

   Observe pretreatment of bonding surfaces and manufacturer's specifications for drying and processing time of 2-component adhesive.

   Courtesy of MERCEDES-BENZ USA

8. install longitudinal member outer shell (1) and fix in place with straightening tool.

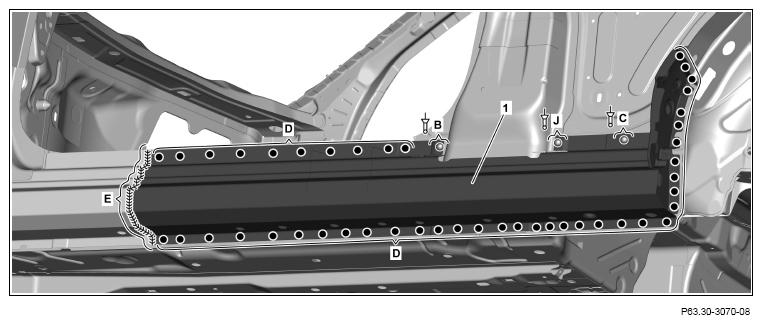

9. Rivet longitudinal member outer shell (1) with Ø 6.4 rivet (area B).
10. Rivet longitudinal member outer shell (1) with Ø 6.4 M6 rivet (area J).
11. Rivet longitudinal member outer shell (1) with Ø 6.4x12 rivet (area C).
12. Longitudinal member outer shell (1) (areas D).
13. Longitudinal member outer shell (1) (area E).

    Inert gas weld in intervals and allow welding area to cool down in between. Reduces heat distortion.

14. Grind inert gas weld down flat on longitudinal member outer shell (1) (area F).

    Grind down flat only on beaded areas and contact areas of longitudinal member paneling.

    Courtesy of MERCEDES-BENZ USA

15. Install reinforcement (2), fit and fix in place.

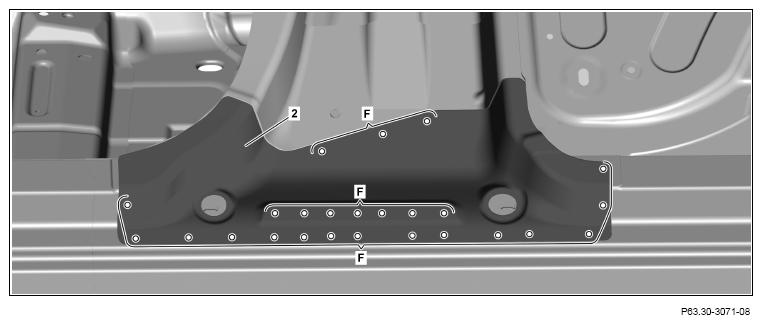

16. Drill Ø 6.7 mm rivet holes on reinforcement (2) (area F).
17. Remove reinforcement (2).
18. Deburr rivet holes on reinforcement (2) and body on both sides.
19. Remove drilling chips.
20. Coat with zinc dust paint insides of those riveted joints that will not be bonded.
21. Insert foam parts (4) with sealant.

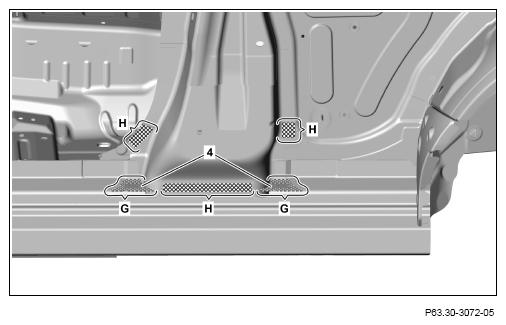

22. Apply sealant to foam parts (4) in crosshatched areas (areas G).
23. Apply 2-component adhesive to body in crosshatched areas (areas H).

    Observe pretreatment of bonding surfaces and manufacturer's specifications for drying and processing time of 2-component adhesive.

    Courtesy of MERCEDES-BENZ USA

    Courtesy of MERCEDES-BENZ USA

24. Install reinforcement (2) and fix in place.

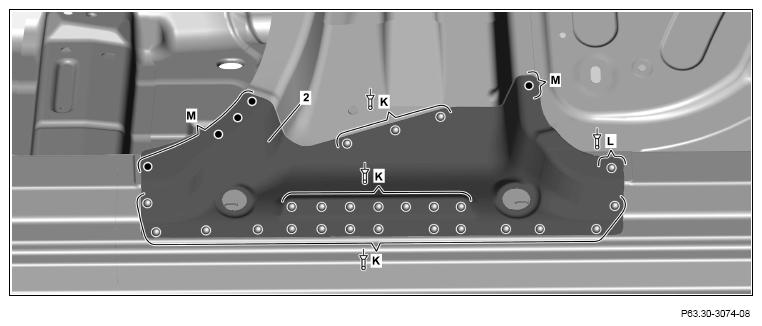

25. Rivet reinforcement (2) with Ø 6.5x12.5 rivets (areas K).
26. Rivet reinforcement (2) with Ø 6.4 M6 rivet (area L).
27. Reinforcement (2) (areas M).
28. Clean weld joints no longer accessible after installing longitudinal member paneling and coat with zinc dust paint.
