Cut Off Waistline Reinforcement For Rear Fender - Ar63.50-P-0003-01LWR

Model 205.4

The following steps are shown on the left side of the vehicle and must be performed analogously on the right side in the event of damage.

1. Expose spot welds on window ledge reinforcement (1) and cut out (areas A).
2. Remove window ledge reinforcement (1).

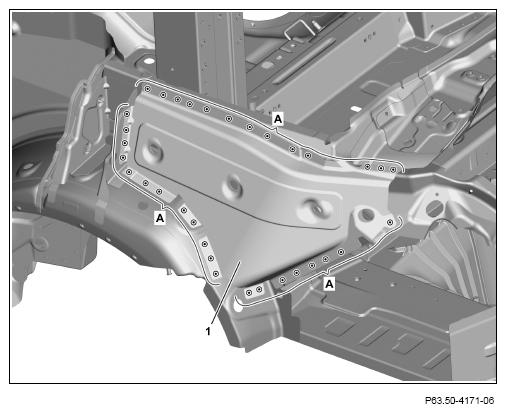

   Fig 1: Ledge Reinforcement Removal Cut Lines And Locations (Model 205.4)

   Courtesy of MERCEDES-BENZ USA

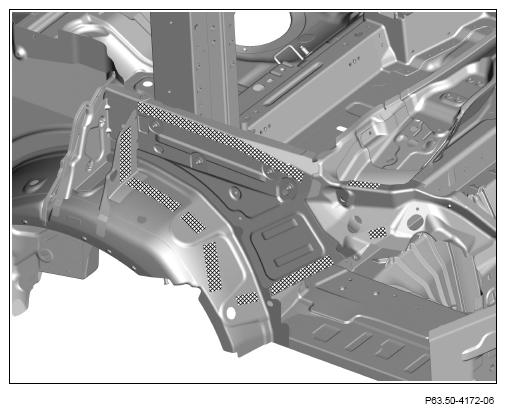

3. Sand down to bare metal connection surfaces in the cross-hatched areas on both sides.
4. Coat insides of spot weld flanges with zinc dust paint.

   Courtesy of MERCEDES-BENZ USA
