Prepare Rear Wall Paneling For Installation - Ar64.10-P-1100-03LW

Model 205.0/1/3

Model 213.0/1

Courtesy of MERCEDES-BENZ USA

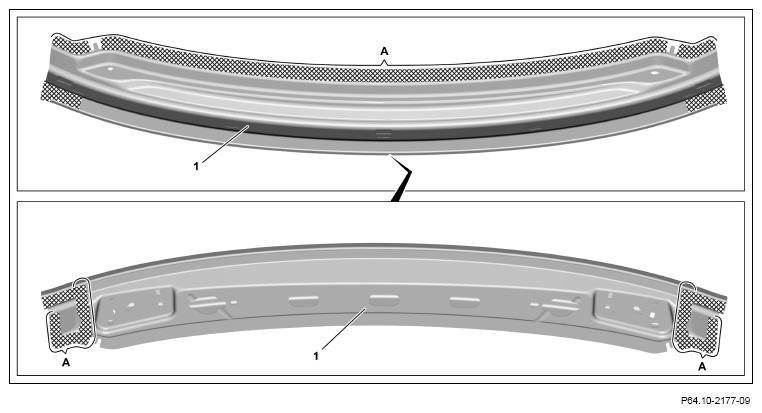

1. Grind mating surfaces on rear panel (1) down to bare metal in crosshatched areas.

   Sand down spot weld flanges to bare metal on both sides.

2. Remove grinding dust.
3. Coat insides of spot weld flanges with zinc dust paint.

   Do not coat bonding surfaces with zinc dust paint (areas A).

   Otherwise adhesion problems may occur.

   Observe pretreatment of bonding surfaces.
