Install Spare Tire Well - Ar64.20-P-1245-03LWR

Model 205.4, 238.4

The higher-level service information as well as the safety information in the service information must be observed.

Courtesy of MERCEDES-BENZ USA

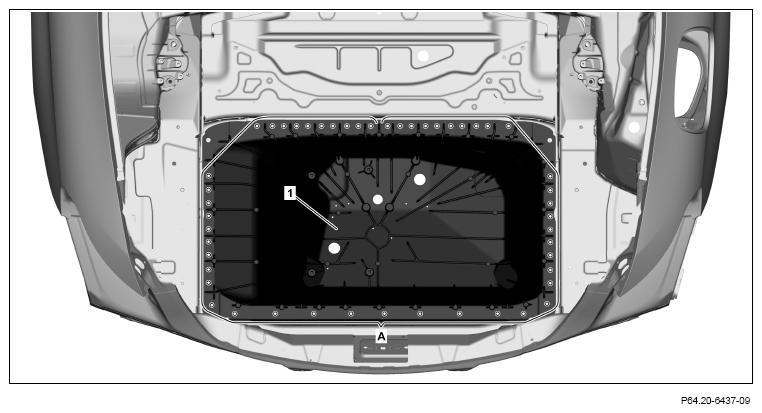

Shown on model 205.4

1. Install front spare wheel well (1) and rear spare wheel well, fit and fix in place.
2. Drill rivet holes on the front spare wheel well (1) with a diameter of 6.7 mm (area A).
3. Remove front spare wheel well (1) and rear spare wheel well.
4. Deburr rivet holes on front spare wheel well (1) and rear spare wheel well and boy on both sides.
5. Remove drilling chips.

   Courtesy of MERCEDES-BENZ USA

   Shown on model 205.4

6. Apply 2-component adhesive to crosshatched area of body.

   Observe pretreatment of bonding surfaces and manufacturer's specifications for drying and processing time of 2-component adhesive.

   Courtesy of MERCEDES-BENZ USA

   Shown on model 205.4

7. Install front spare wheel well (1) and rear spare wheel well and fix in place.
8. Rivet front spare wheel well (1) with a diameter of 6.4 rivet (area B).
9. Rivet front spare wheel well (1) with rivets with a diameter of 6.5 x 12.5 (areas C, D).
10. Rivet front spare wheel well (1) with a diameter of 6.5 x 14.5 rivet (area E).

    Courtesy of MERCEDES-BENZ USA

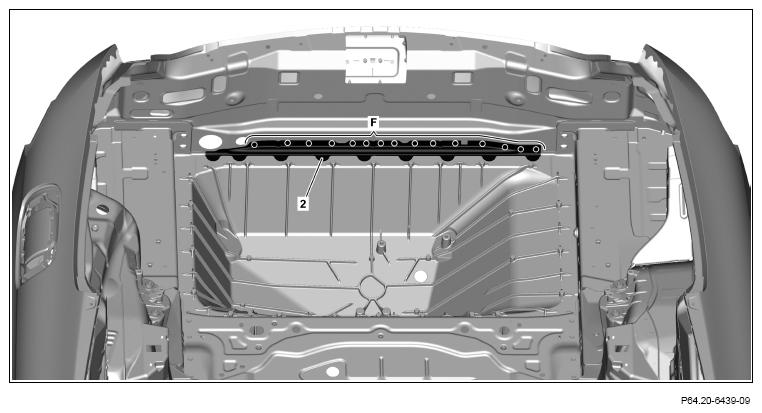

    Shown on model 205.4

11. Rear spare wheel well (2) (area F).
