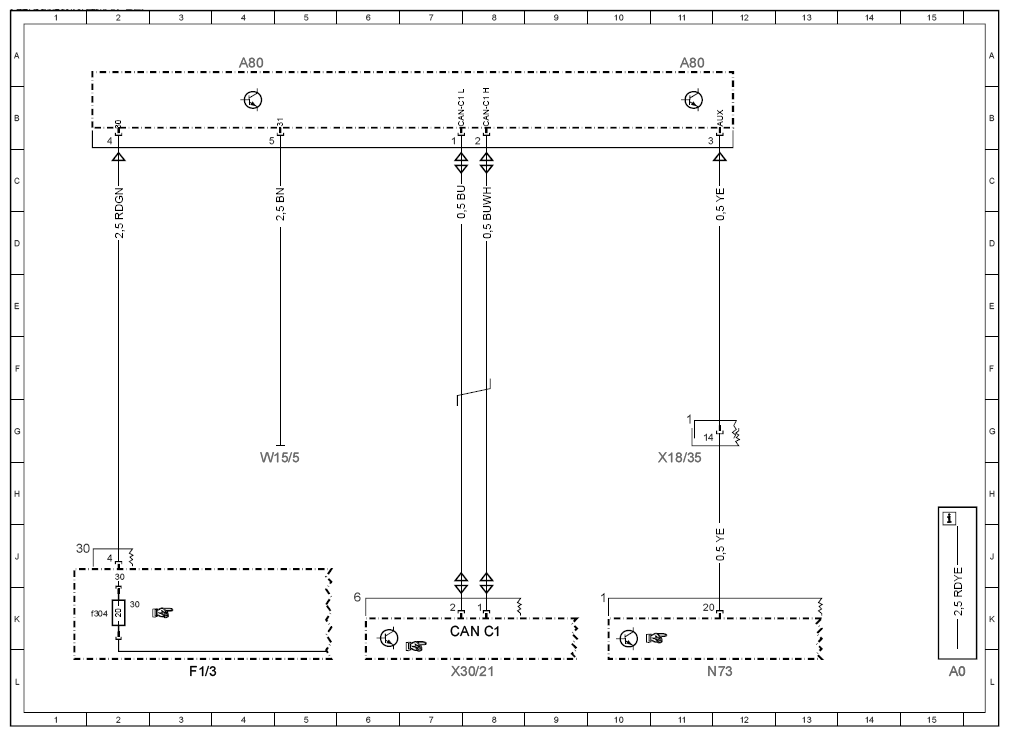

Wiring diagram for intelligent servo module (ISM) control unit - PE27.60-P-2101-97FBA
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 15L |
| A80 | Intelligent servo module for DIRECT SELECT | 4A |
| A80 | Intelligent servo module for DIRECT SELECT | 11A |
| CAN C1 | Drive train CAN | 8K |
| F1/3 | Right A-pillar fuse box | 3L |
| F1/3f304 | Fuse 304 | 2K |
| N73 | Electronic ignition switch control unit | 12L |
| W15/5 | Left front footwell ground point | 4H |
| X18/35 | Cockpit wiring harness and frame floor assembly electrical connector | 11H |
| X30/21 | Drive train CAN (CAN C1) potential distributor electrical connector | 7L |
