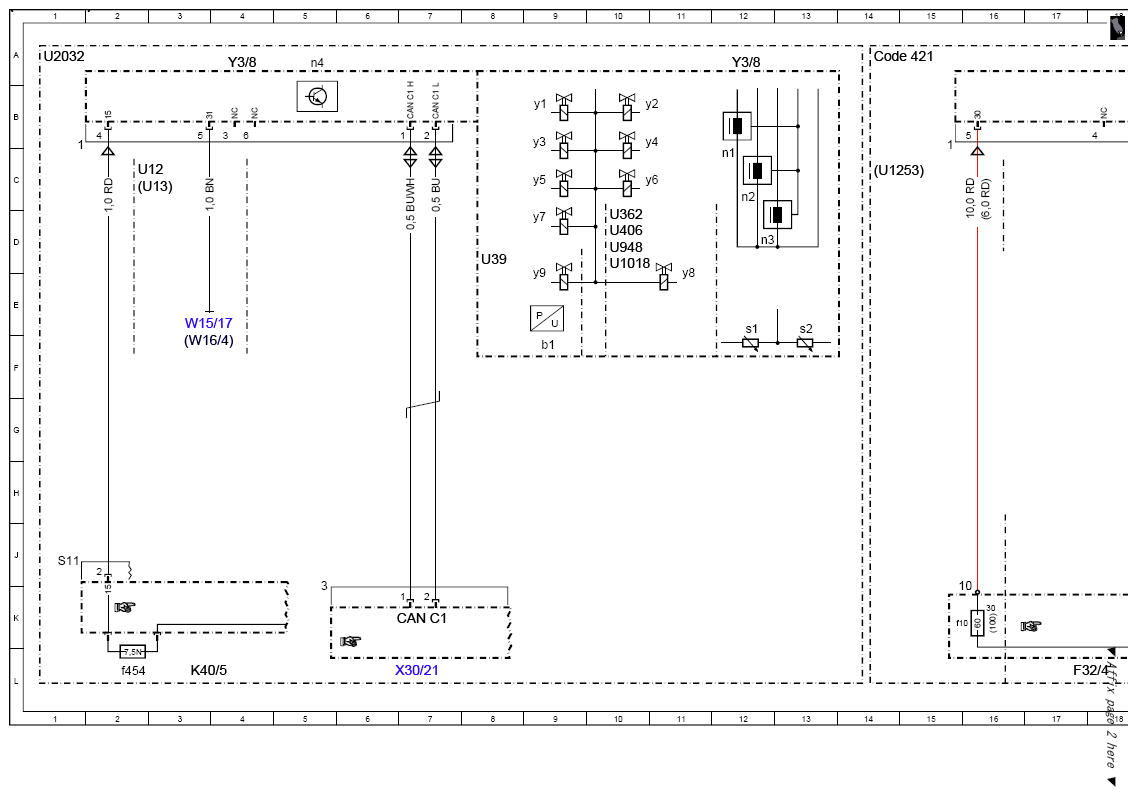

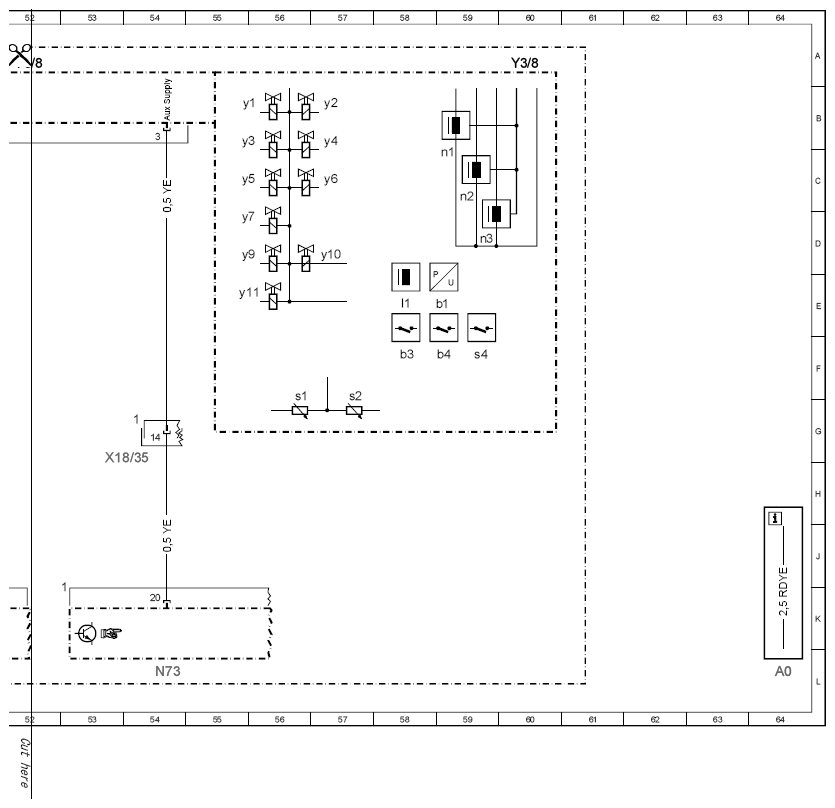

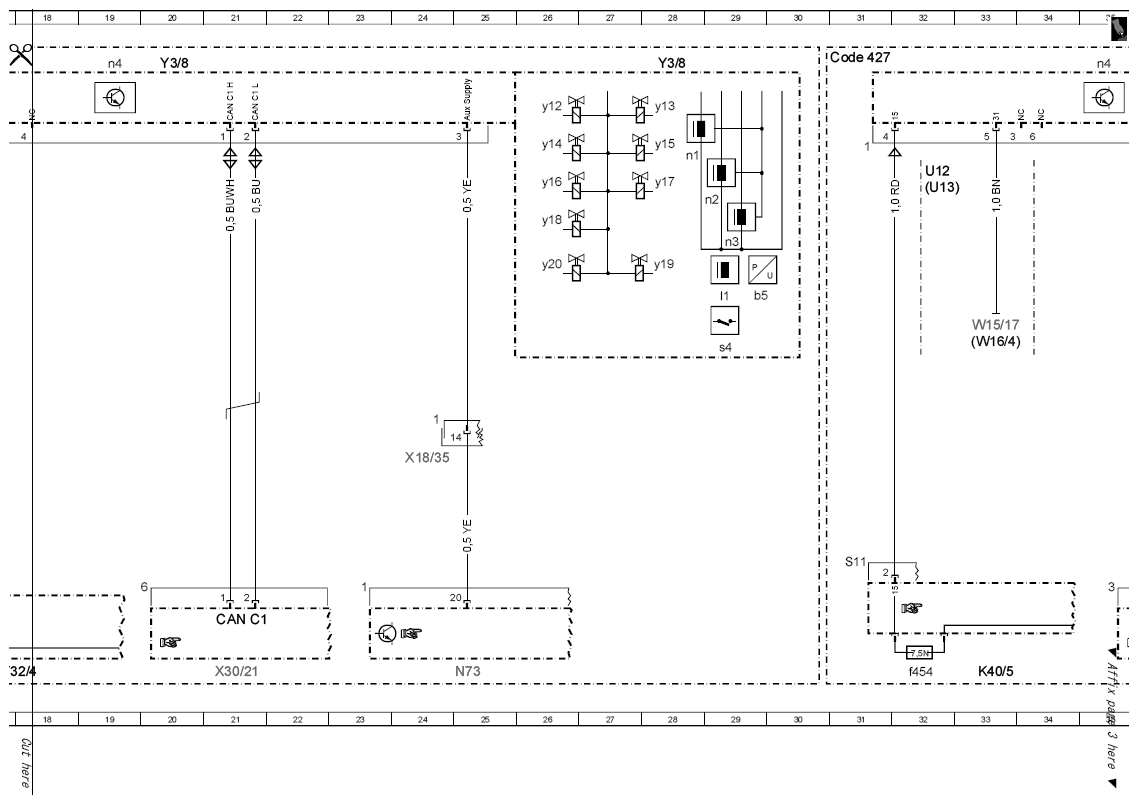

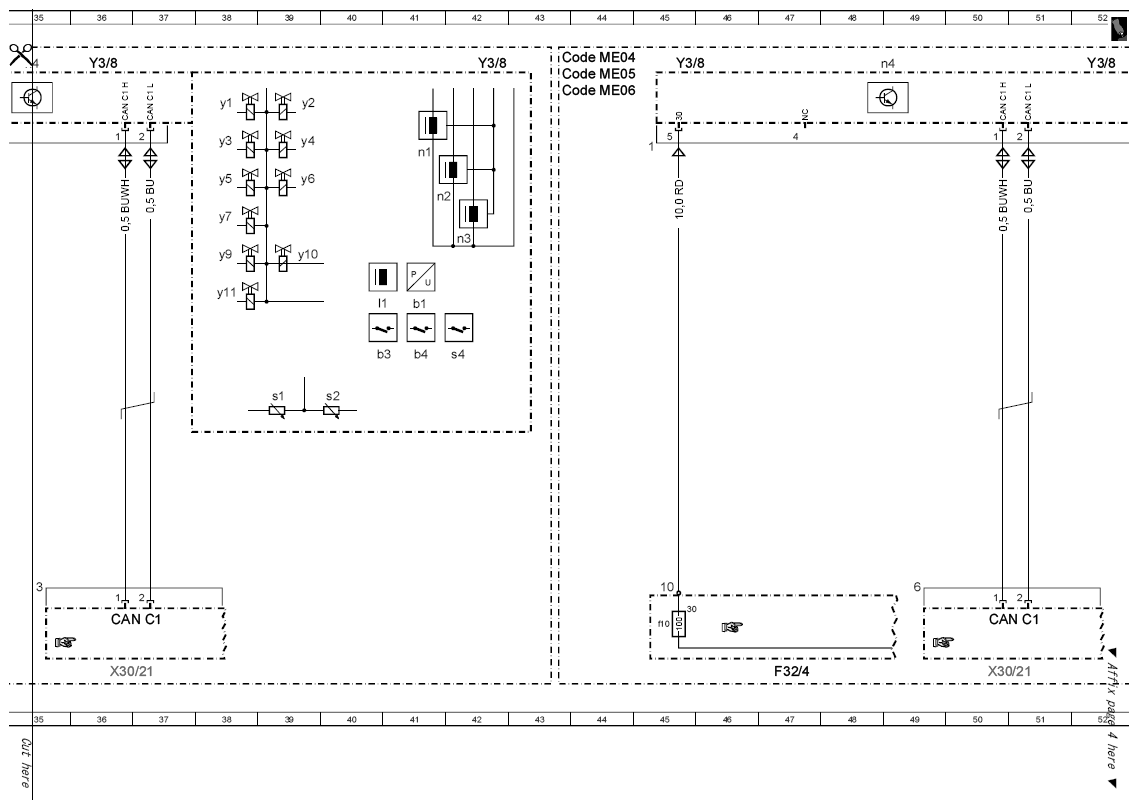

| A0 |
Use of wiring diagrams |
64L |
| CAN C1 |
Drive train CAN |
7K |
| CAN C1 |
Drive train CAN |
21K |
| CAN C1 |
Drive train CAN |
36K |
| CAN C1 |
Drive train CAN |
50K |
| Code 421 |
9G-TRONIC PLUS |
14A |
| Code 427 |
7G-TRONIC PLUS automatic transmission |
31A |
| Code ME04 |
Hybrid drive 20 KW VARIANT |
14J |
| Code ME04 |
Hybrid drive 20 KW VARIANT |
43A |
| Code ME05 |
HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUG-IN) |
14J |
| Code ME05 |
HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUG-IN) |
43A |
| Code ME06 |
Hybrid drive 50 KW VARIANT (INCLUDING PLUG-IN) |
14J |
| Code ME06 |
Hybrid drive 50 KW VARIANT (INCLUDING PLUG-IN) |
43B |
| F32/4 |
Vehicle interior prefuse box |
17L |
| F32/4 |
Vehicle interior prefuse box |
47L |
| F32/4f10 |
Fuse 10 |
15K |
| F32/4f10 |
Fuse 10 |
45K |
| K40/5 |
Rear fuse and relay module |
3L |
| K40/5 |
Rear fuse and relay module |
33L |
| K40/5f454 |
Fuse 454 |
2L |
| K40/5f454 |
Fuse 454 |
32L |
| N73 |
Electronic ignition switch control unit |
25L |
| N73 |
Electronic ignition switch control unit |
54L |
| U1018 |
Valid for gasoline engine 276 |
10D |
| U12 |
Valid for left-hand drive vehicles |
2C |
| U12 |
Valid for left-hand drive vehicles |
32C |
| U1253 |
Valid for model 253 |
14C |
| U13 |
Valid for right-hand drive vehicles |
2C |
| U13 |
Valid for right-hand drive vehicles |
32C |
| U2032 |
Valid for transmission 722 |
1A |
| U362 |
Valid for gasoline engine 274 |
10D |
| U39 |
Valid for gasoline engine 177 |
8D |
| U406 |
Valid for diesel engine 626 |
10D |
| U948 |
Valid for diesel engine 651 |
10D |
| W15/17 |
Additional battery ground point |
3E |
| W15/17 |
Additional battery ground point |
33E |
| W16/4 |
Right major assembly compartment ground point |
3F |
| W16/4 |
Right major assembly compartment ground point |
33F |
| X18/35 |
Cockpit wiring harness and frame floor assembly electrical connector |
24H |
| X18/35 |
Cockpit wiring harness and frame floor assembly electrical connector |
54H |
| X30/21 |
Drive train CAN (CAN C1) potential distributor electrical connector |
7L |
| X30/21 |
Drive train CAN (CAN C1) potential distributor electrical connector |
21L |
| X30/21 |
Drive train CAN (CAN C1) potential distributor electrical connector |
36L |
| X30/21 |
Drive train CAN (CAN C1) potential distributor electrical connector |
50L |
| Y3/8 |
Fully integrated transmission control unit |
12A |
| Y3/8 |
Fully integrated transmission control unit |
4A |
| Y3/8 |
Fully integrated transmission control unit |
20A |
| Y3/8 |
Fully integrated transmission control unit |
28A |
| Y3/8 |
Fully integrated transmission control unit |
36A |
| Y3/8 |
Fully integrated transmission control unit |
42A |
| Y3/8 |
Fully integrated transmission control unit |
45A |
| Y3/8 |
Fully integrated transmission control unit |
52A |
| Y3/8 |
Fully integrated transmission control unit |
60A |
| Y3/8b1 |
Wet clutch oil pressure sensor |
9F |
| Y3/8b1 |
Wet clutch oil pressure sensor |
41E |
| Y3/8b1 |
Wet clutch oil pressure sensor |
59E |
| Y3/8b3 |
Oil pressure switch D/R 1 |
40F |
| Y3/8b3 |
Oil pressure switch D/R 1 |
58F |
| Y3/8b4 |
Oil pressure switch D/R 2 |
41F |
| Y3/8b4 |
Oil pressure switch D/R 2 |
59F |
| Y3/8b5 |
Pressure sensor |
29E |
| Y3/8l1 |
Park pawl lift solenoid |
29E |
| Y3/8l1 |
Park pawl lift solenoid |
40E |
| Y3/8l1 |
Park pawl lift solenoid |
58E |
| Y3/8n1 |
Turbine wheel rpm sensor |
12C |
| Y3/8n1 |
Turbine wheel rpm sensor |
28C |
| Y3/8n1 |
Turbine wheel rpm sensor |
41C |
| Y3/8n1 |
Turbine wheel rpm sensor |
59C |
| Y3/8n2 |
Internal input speed rpm sensor |
12C |
| Y3/8n2 |
Internal input speed rpm sensor |
29C |
| Y3/8n2 |
Internal input speed rpm sensor |
41C |
| Y3/8n2 |
Internal input speed rpm sensor |
59C |
| Y3/8n3 |
Output shaft rpm sensor |
12D |
| Y3/8n3 |
Output shaft rpm sensor |
29D |
| Y3/8n3 |
Output shaft rpm sensor |
42D |
| Y3/8n3 |
Output shaft rpm sensor |
59D |
| Y3/8n4 |
Fully integrated transmission control unit |
5A |
| Y3/8n4 |
Fully integrated transmission control unit |
19A |
| Y3/8n4 |
Fully integrated transmission control unit |
35A |
| Y3/8n4 |
Fully integrated transmission control unit |
49A |
| Y3/8s1 |
Selection range sensor |
12E |
| Y3/8s1 |
Selection range sensor |
39G |
| Y3/8s1 |
Selection range sensor |
56G |
| Y3/8s2 |
Transmission oil temperature sensor |
13E |
| Y3/8s2 |
Transmission oil temperature sensor |
40G |
| Y3/8s2 |
Transmission oil temperature sensor |
57G |
| Y3/8s4 |
Park pawl position sensor |
29F |
| Y3/8s4 |
Park pawl position sensor |
42F |
| Y3/8s4 |
Park pawl position sensor |
59F |
| Y3/8y1 |
Working pressure control solenoid valve |
9B |
| Y3/8y1 |
Working pressure control solenoid valve |
38B |
| Y3/8y1 |
Working pressure control solenoid valve |
55B |
| Y3/8y10 |
D/R switchover valve |
39D |
| Y3/8y10 |
D/R switchover valve |
57D |
| Y3/8y11 |
Park pawl switchover valve |
38E |
| Y3/8y11 |
Park pawl switchover valve |
55E |
| Y3/8y12 |
Lubricating pressure solenoid |
26B |
| Y3/8y13 |
K81 clutch control solenoid |
28B |
| Y3/8y14 |
K38 clutch control solenoid |
26B |
| Y3/8y15 |
K27 clutch control solenoid |
28B |
| Y3/8y16 |
B08 multidisk brake control solenoid |
26C |
| Y3/8y17 |
B05 multidisk brake control solenoid |
28C |
| Y3/8y18 |
B06 multidisk brake control solenoid |
26D |
| Y3/8y19 |
Working pressure solenoid |
28D |
| Y3/8y2 |
Clutch control solenoid valve K1 |
10B |
| Y3/8y2 |
Clutch control solenoid valve K1 |
39B |
| Y3/8y2 |
Clutch control solenoid valve K1 |
57B |
| Y3/8y20 |
Torque converter lockup clutch solenoid |
26D |
| Y3/8y3 |
Clutch control solenoid valve K2 |
9B |
| Y3/8y3 |
Clutch control solenoid valve K2 |
38B |
| Y3/8y3 |
Clutch control solenoid valve K2 |
55B |
| Y3/8y4 |
Clutch control solenoid valve K3 |
10B |
| Y3/8y4 |
Clutch control solenoid valve K3 |
39B |
| Y3/8y4 |
Clutch control solenoid valve K3 |
57B |
| Y3/8y5 |
Multidisk brake control solenoid valve B1 |
9C |
| Y3/8y5 |
Multidisk brake control solenoid valve B1 |
38C |
| Y3/8y5 |
Multidisk brake control solenoid valve B1 |
55C |
| Y3/8y6 |
Multidisk brake control solenoid valve B2 |
10C |
| Y3/8y6 |
Multidisk brake control solenoid valve B2 |
39C |
| Y3/8y6 |
Multidisk brake control solenoid valve B2 |
57C |
| Y3/8y7 |
Multidisk brake control solenoid valve B3 |
9D |
| Y3/8y7 |
Multidisk brake control solenoid valve B3 |
38D |
| Y3/8y7 |
Multidisk brake control solenoid valve B3 |
55D |
| Y3/8y8 |
Torque converter lockup clutch control solenoid valve |
11E |
| Y3/8y9 |
Wet clutch control solenoid valve |
9E |
| Y3/8y9 |
Wet clutch control solenoid valve |
38D |
| Y3/8y9 |
Wet clutch control solenoid valve |
55D |
