| A0 |
Use of wiring diagrams |
23L |
| CAN AMG |
AMG CAN |
20K |
| F1/3 |
Right A-pillar fuse box |
3L |
| F1/3f314 |
Fuse 314 |
1K |
| K40/5 |
Rear fuse and relay module |
10L |
| K40/5f435 |
Fuse 435 |
8L |
| K40/5f457 |
Fuse 457 |
6L |

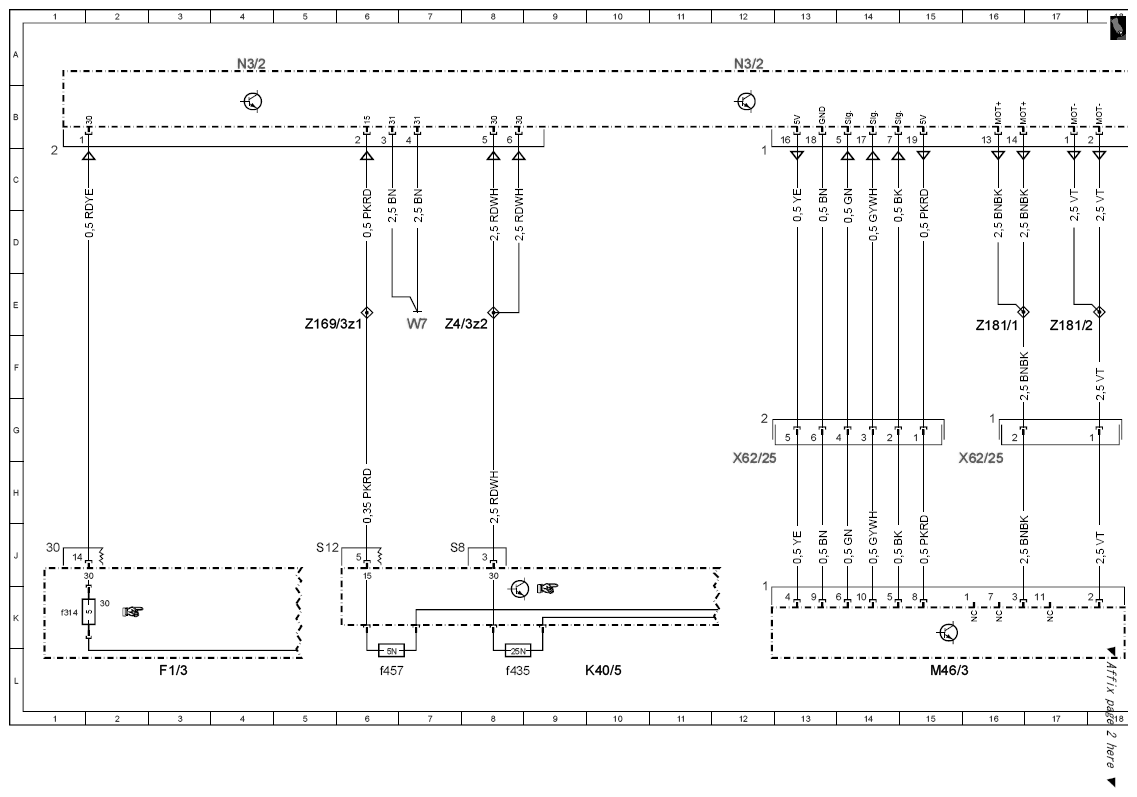

| M46/3 |
Differential lock actuator |
15L |
| N3/2 |
Electronic differential control unit |
4A |
| N3/2 |
Electronic differential control unit |
12A |
| N3/2 |
Electronic differential control unit |
20A |
| W7 |
Right wheelhouse trunk ground point |
7E |

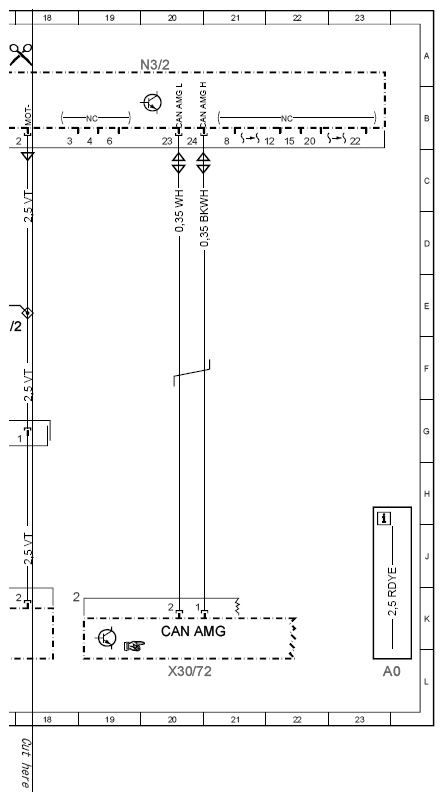

| X30/72 |
AMG CAN potential distributor electrical connector |
20L |
| X62/25 |
Differential lock electrical connector |
12H |
| X62/25 |
Differential lock electrical connector |
16H |
| Z169/3z1 |
Tml. 15 connector sleeve |
5E |
| Z181/1 |
Differential electric motor connector sleeve (+) |
16E |
| Z181/2 |
Differential electric motor connector sleeve (-) |
17E |
| Z4/3z2 |
Tml. 30 connector sleeve |
8E |
