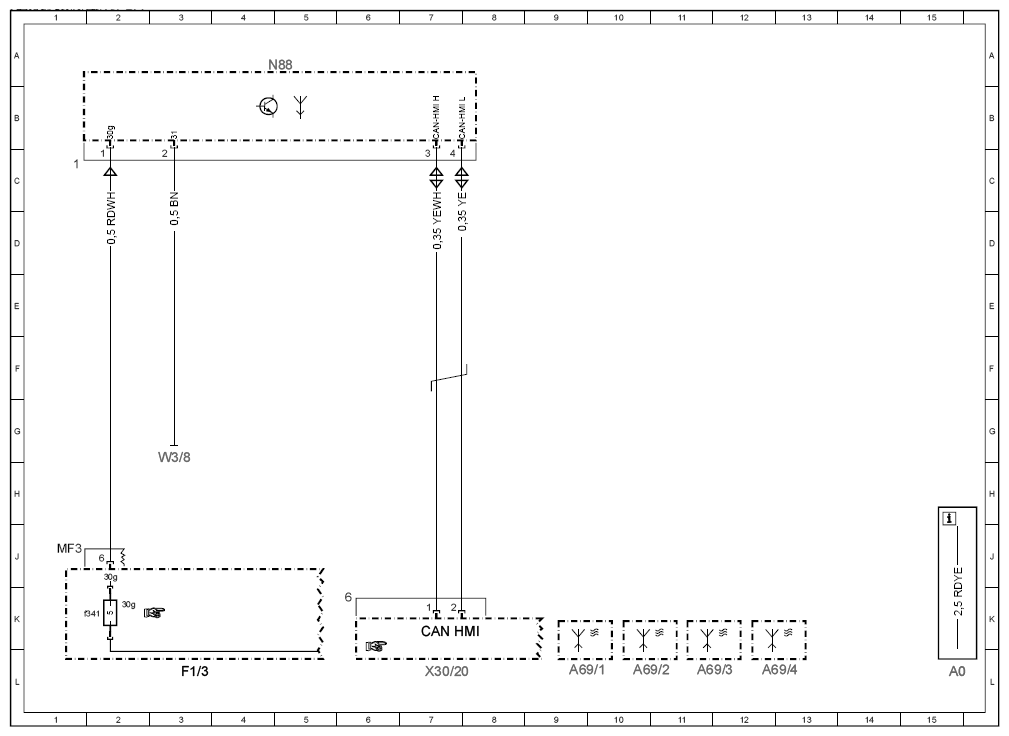

Wiring diagram for tire pressure monitor control unit - PE40.15-P-2101-97FBA
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 15L |
| A69/1 | Left front tire pressure sensor | 9L |
| A69/2 | Right front tire pressure sensor | 10L |
| A69/3 | Left rear tire pressure sensor | 11L |
| A69/4 | Right rear tire pressure sensor | 12L |
| CAN HMI | User interface CAN | 7K |
| F1/3 | Right A-pillar fuse box | 3L |
| F1/3f341 | Fuse 341 | 1K |
| N88 | Tire pressure monitor control unit | 5A |
| W3/8 | Right rear wheel well ground point | 3G |
| X30/20 | User interface CAN (CAN HMI) potential distributor electrical connector | 7L |
