Remove/install wheel carrier - AR35.20-P-0115LW

Model 205

Model 253

MODIFICATION NOTES

23.9.15	Main Torsion Rod To Spring Link	Type 205 except Code 489 (AIRMATIC)	BA32.20-P-1003-04S
23.9.15	Main Torsion Rod To Spring Link	Type 205 with Code 489 (AIRMATIC)	BA32.20-P-1003-04S

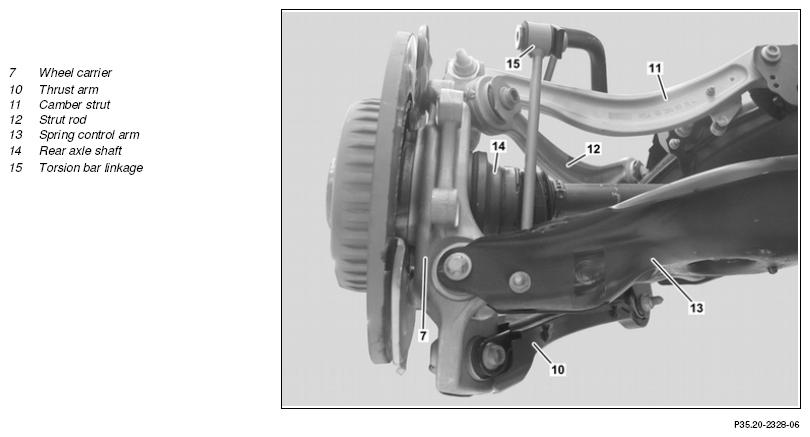

Fig 1: Identifying Wheel Carrier Remove/Install Components - Shown On Model 205 Except Code 489

Courtesy of MERCEDES-BENZ USA

Shown on model 205 except CODE 489 (AIRmatic)

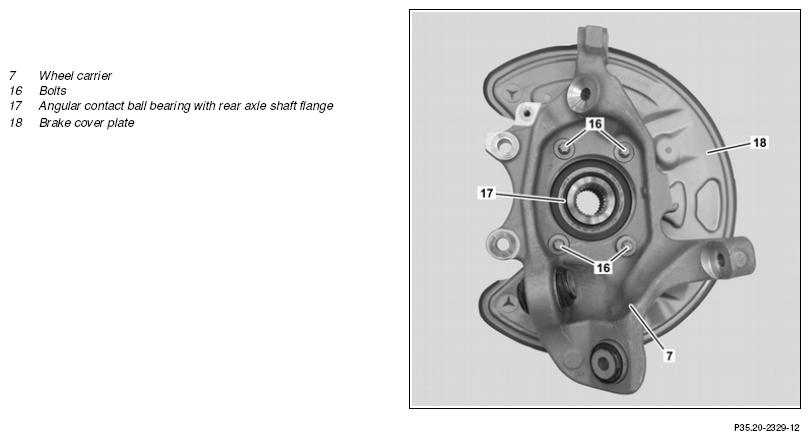

Fig 2: Identifying Wheel Carrier Remove/Install Components (1 Of 3)

Courtesy of MERCEDES-BENZ USA

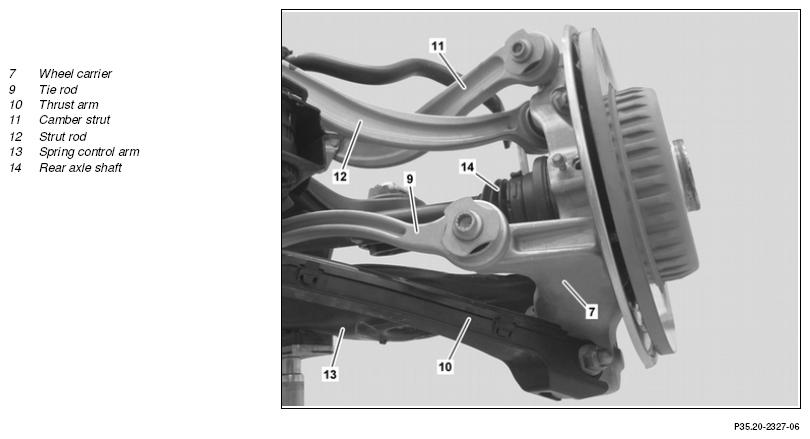

Fig 3: Identifying Wheel Carrier Remove/Install Components (2 Of 3)

Courtesy of MERCEDES-BENZ USA

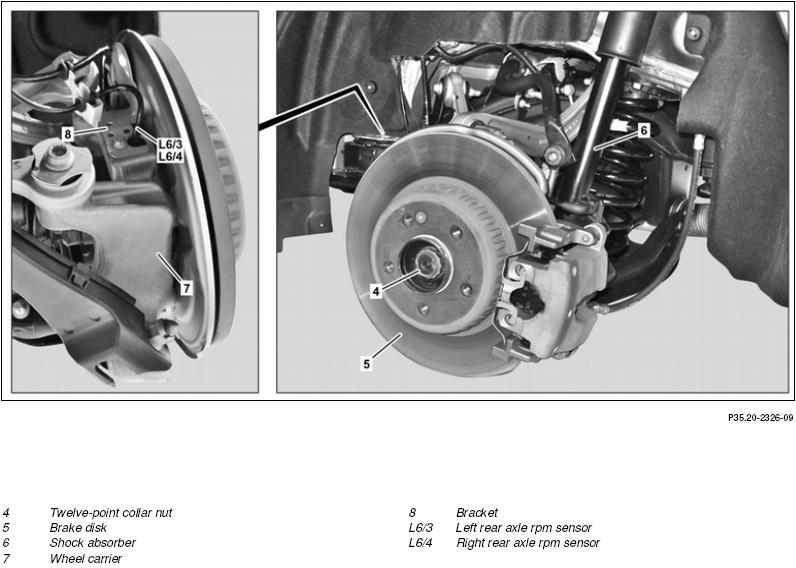

Fig 4: Identifying Wheel Carrier Remove/Install Components (3 Of 3)

Courtesy of MERCEDES-BENZ USA

	Risk of injury. Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating range of the mechanism when moving components.	AS00.00-Z-0009-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Notes on repair work on suspension components		AH00.00-P-0100-01A
	Notes on AIRmatic		AH32.22-P-1000-02LW
	Remove/install
1	Secure vehicle on vehicle lift		AR00.60-P-1002LWG
2	Detach rear complete wheel		AR40.10-P-1101A
3	Remove cover from spring control arm (13)
4.1	Remove rear axle spring	Model 205 except code 489 (AIRMATIC) Model 253 except code 489 (AIR BODY CONTROL)
4.1	Remove rear axle spring		AR32.20-P-0230LW
4.2	Empty air spring using diagnostic system	Model 205 with code 489 (AIRMATIC) Model 253 with code 489 (AIR BODY CONTROL)
		Model 205 with code 489 (AIRMATIC) Inflate air spring properly. The air spring may otherwise be damaged and fail later.	AD00.00-P-2000-04B
5	Unscrew twelve-point collar nut (4) from rear axle shaft (14)	Replace twelve-point collar nut (4) and secure doubly.
5		Nut, rear axle shaft to wheel bearing	*BA35.30-P-1001-01N
6	Remove brake disk (5)		AR42.10-P-0220EWE
7	Detach bracket (8) with left rear-axle rpm sensor (L6/3) or right rear-axle rpm sensor (L6/4) from wheel carrier (7) and place to one side with lines connected	Bolt, rpm sensor to wheel carrier	*BA42.30-P-1001-02K
8	Raise wheel carrier (7) using major assembly mount and support plate until rear axle shaft (14) is horizontal
	000 588 11 62 00 Major assembly mount		WS01.00-P-0092B
	000 588 10 62 00 Support plate		WS26.00-P-3309B
		Tighten bolted connections of tie rod (9), thrust arm (10), camber strut (11) and strut rod (12) as well as torsion bar linkage (15), shock absorber (6) and spring control arm (13).
		Bolt, tie rod to wheel carrier	*BA35.20-P-1001-04M
		Bolt, thrust arm to wheel carrier	*BA35.20-P-1002-05J
		Bolt, camber strut to wheel carrier	*BA35.20-P-1002-02L
		Bolt, strut rod to wheel carrier	*BA35.20-P-1002-03L
		Model 205 except code 488 (Steel/air suspension) except code 489 (AIRMATIC) except code 492 (AMG performance suspension) Model 205 with code 489 (AIRMATIC) except code 488 (Steel/air suspension) except code 492 (AMG performance suspension) Nut, torsion bar linkage to spring control arm	*BA32.20-P-1003-04S
		Model 253 except code 489 (AIR BODY CONTROL) Model 253 with code 489 (AIR BODY CONTROL) Nut, torsion bar linkage to spring control arm	*BA32.20-P-1003-04T
		Self-locking nut, shock absorber to spring control arm	*BA32.25-P-1001-03P
		Bolt, spring control arm to wheel carrier	*BA35.20-P-1002-01I
9	Detach tie rod (9) from wheel carrier (7)	Do not tighten the threaded connection yet.
10	Detach thrust arm (10) from wheel carrier (7)	Do not tighten the threaded connection yet.
11	Detach camber strut (11) from wheel carrier (7)	Do not tighten the threaded connection yet.
12	Detach torque strut (12) from wheel carrier (7)	Do not tighten the threaded connection yet.
13	Detach torsion bar linkage (15) from spring control arm (13)	Do not tighten the threaded connection yet.
14	Detach shock absorber (6) from spring control arm (13).	Do not tighten the threaded connection yet.
15	Lower major assembly mount
16	Detach spring control arm (13) from wheel carrier (7)	Do not tighten the threaded connection yet.
17	Remove wheel carrier (7) with brake cover plate (18) and angular contact ball bearing with rear axle shaft flange (17) from rear axle shaft (14)
18	Detach angular contact ball bearing with rear axle shaft flange (17) from wheel carrier (7)	When replacing the angular contact ball bearing or the rear axle shaft flange.
18			AR35.20-P-0130LW
19	Press rear axle shaft flange all way on up to end stop in the angular contact ball bearing	When replacing the wheel carrier (7).
		AR35.20-P-0130LW
		The new wheel carrier (7) is supplied with angular contact ball bearings only. The angular contact ball bearing need not be removed from the new wheel carrier (7).
20	Remove brake cover plate (18) from wheel carrier (7)	When replacing the wheel carrier (7).
20	Remove brake cover plate (18) from wheel carrier (7)	Bolt, brake cover plate to steering knuckle or wheel carrier	*BA42.10-P-1003-06J
21	Install in the reverse order

REAR AXLE TORSION BAR

Number	Designation			Model 205 except code 489 (AIRMATIC)	Model 205 with code 489 (AIRMATIC)
BA32.20-P-1003-04S	Nut, torsion bar linkage to spring control arm	Stage 1	Nm	20	35
BA32.20-P-1003-04S	Nut, torsion bar linkage to spring control arm	Stage 2	∠°	180	120

REAR AXLE TORSION BAR

Number	Designation			Model 253 except code 489 (AIR BODY CONTROL)	Model 253 with code 489 (AIR BODY CONTROL)
BA32.20-P-1003-04T	Nut, torsion bar linkage to spring control arm	Stage 1	Nm	20	35
BA32.20-P-1003-04T	Nut, torsion bar linkage to spring control arm	Stage 2	∠°	180	120

REAR AXLE SHOCK ABSORBER

Number	Designation				Model 205	Model 253
BA32.25-P-1001-03P	Self-locking nut, shock absorber to spring control arm	Air suspension	Stage 1	Nm	100	100
		Air suspension	Stage 2	∠°	90	90
		Steel suspension	Stage 1	Nm	60	60
		Steel suspension	Stage 2	∠°	60	60

TIE ROD

Number	Designation			Model 205	Model 253
BA35.20-P-1001-04M	Bolt, tie rod to wheel carrier	Stage 1	Nm	50	50
BA35.20-P-1001-04M	Bolt, tie rod to wheel carrier	Stage 2	∠°	90	90

SPRING CONTROL ARM

Number	Designation			Model 205	Model 253
BA35.20-P-1002-01I	Bolt, spring control arm to wheel carrier	Stage 1	Nm	80	80
BA35.20-P-1002-01I	Bolt, spring control arm to wheel carrier	Stage 2	∠°	90	90

CAMBER STRUT

Number	Designation			Model 205	Model 253
BA35.20-P-1002-02L	Bolt, camber strut to wheel carrier	Stage 1	Nm	50	50
BA35.20-P-1002-02L	Bolt, camber strut to wheel carrier	Stage 2	∠°	90	90

STRUT ROD

Number	Designation				Model 205	Model 253
BA35.20-P-1002-03L	Bolt, strut rod to wheel carrier	M12	Stage 1	Nm	50	50
BA35.20-P-1002-03L	Bolt, strut rod to wheel carrier	M12	Stage 2	∠°	90	90

THRUST ARM

Number	Designation			Model 205	Model 253
BA35.20-P-1002-05J	Bolt, thrust arm to wheel carrier	Stage 1	Nm	50	50
BA35.20-P-1002-05J	Bolt, thrust arm to wheel carrier	Stage 2	∠°	90	90

REAR AXLE SHAFT

Number	Designation		Model 205	Model 253
BA35.30-P-1001-01N	Nut, rear axle shaft to wheel bearing	Nm	350	350

BRAKE DISKS, BRAKE COVER PLATE

Number	Designation		Model 205	Model 253
BA42.10-P-1003-06J	Bolt, brake cover plate to steering knuckle or wheel carrier	Nm	20	20

REAR AXLE RPM SENSOR

Number	Designation		Model 205	Model 253
BA42.30-P-1001-02K	Bolt, rpm sensor to wheel carrier	Nm	8	8
