Remove/install thrust arm - AR35.20-P-0113LW

Model 205

Model 253

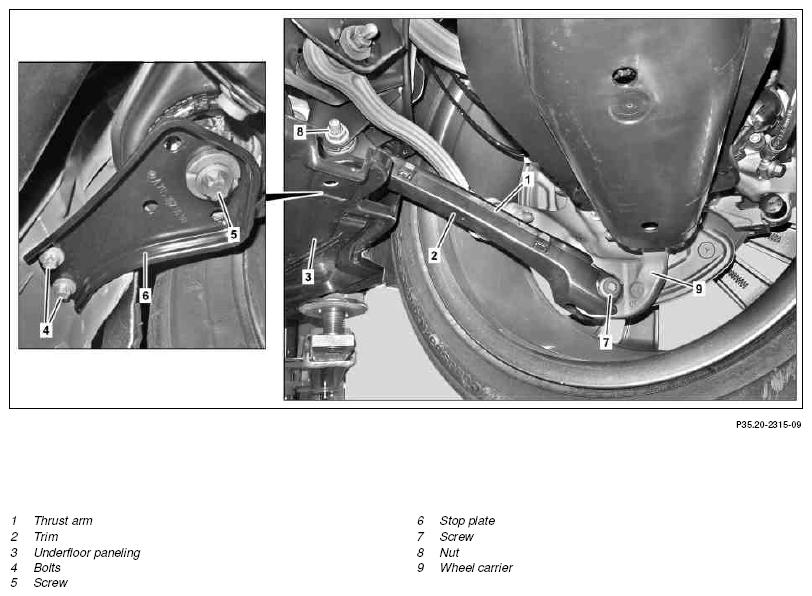

Fig 1: Identifying Thrust Arm Remove/Install Components - Shown On Model 205
G10133161Courtesy of MERCEDES-BENZ USA

Shown on model 205

NOTES Notes on self-locking nuts and bolts   AH00.00-N-0001-01A
IMPORTANT Notes on repair work on suspension components   AH00.00-P-0100-01A
REMOVINGINSTALLING Remove/install
1 Detach underfloor paneling (3) in area of stop plate (6)   AR61.30-P-1001LW
2 Remove bolts (4) from stop plate (6) TORQUE SPECIFICATION Screw/bolt, stop plate to body *BA35.10-P-1003-01H
3 Support rear axle using an assembly unit mount and mounting plate
REFER TO SPECIAL TOOLS 000 588 10 62 00 Support plate   WS26.00-P-3309B
REFER TO SPECIAL TOOLS 000 588 11 62 00 Major assembly mount   WS01.00-P-0092B
4 Remove bolt (5) and remove stop plate (6) IMPORTANT Do not use an impact wrench.
TORQUE SPECIFICATION Self-locking bolt securing front decoupling element of rear axle carrier to frame floor assembly *BA35.10-P-1001-01H
5 Clean thread of screw/bolt (5) in frame floor assembly using compressed air IMPORTANT Make sure that the threaded insert is seated correctly.
6 Unscrew nut from bolt (7) and pull out bolt (7) TORQUE SPECIFICATION Bolt, thrust arm to wheel carrier *BA35.20-P-1002-05J
7 Unscrew nut (8) and remove bolt TORQUE SPECIFICATION Bolt, thrust arm to rear axle carrier *BA35.20-P-1001-05J
8 Remove thrust arm (1)
9 Detach cover (2) from thrust arm (1) When replacing the thrust arm (1).
INSPECT Check
10 Check elastomer bearing of thrust arm (1) in wheel carrier (9) If damage is present:

Replace the elastomer bearing of the thrust arm (1) in the wheel carrier (9).

  AR35.20-P-0105-01LW
SPECIAL TOOL Extraction and insertion tool Fig 2
11 Check that thrust arm (1) is in good condition and has no signs of damage If damage is present:

Replace the thrust arm (1).

12 Install in the reverse order
REAR AXLE CARRIER

Number Designation Model 205 Model 253
BA35.10-P-1001-01H Self-locking bolt securing front decoupling element of rear axle carrier to frame floor assembly Stage 1 Nm 100 100
Stage 2 Nm loosen loosen
Stage 3 Nm 100 100
Stage 4 ∠° 90 90
REAR AXLE CARRIER

Number Designation Model 205 Model 253
BA35.10-P-1003-01H Screw/bolt, stop plate to body Nm 35 35
THRUST ARM

Number Designation Model 205 Model 253
BA35.20-P-1001-05J Bolt, thrust arm to rear axle carrier Rear axle carrier (aluminum) Stage 1 Nm 80 80
Stage 2 ∠° 90 90
Rear axle carrier (steel) Stage 1 Nm 50 50
Stage 2 ∠° 90 90
THRUST ARM

Number Designation Model 205 Model 253
BA35.20-P-1002-05J Bolt, thrust arm to wheel carrier Stage 1 Nm 50 50
Stage 2 ∠° 90 90
